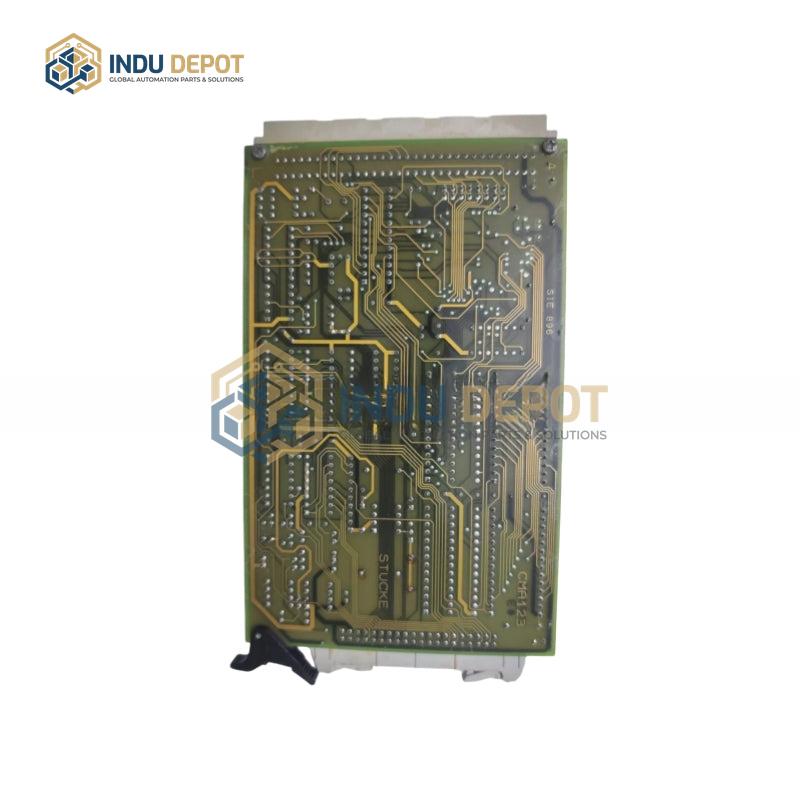

CMA 123 ABB Synpol D Display Card

Description

The CMA 123 ABB Synpol D Display Card is a specialized display interface component designed for industrial and large-format display systems. It features an operating temperature range of -30 degrees Celsius to +70 degrees Celsius, with a secondary operating range of -10 degrees Celsius to +60 degrees Celsius, enabling reliable performance in harsh environmental conditions. The card has a net weight of 0.13 kg, with compact dimensions of 204 x 143 x 50 mm, and requires a cut-out size of 187 x 126 mm for installation, with a mounting depth of 43 mm (143 mm including clearance). It operates on a +24 V DC power supply, compatible with input voltages between 18 V DC and 32 V DC.

Key functional features include support for 8 D320 interfaces, outputting 32 sets of RGB data for high-resolution display control. It offers user-friendly wizard-based setup, eliminating complex manual configuration, and supports high gray scale and high refresh rate display to eliminate visual artifacts like dim lines, low-gray red shift, and ghosting. The card provides precise brightness and chromaticity point-by-point correction with low-gray compensation to ensure consistent screen color and clarity. Additional capabilities include one-click seam repair to remove bright/dark lines between display units, support for various PWM and dual-latch chips, compatibility with static screens and scan types from 1/2 to 1/64, and intelligent wiring mapping for simplified installation. It also enables one-click configuration readback and restoration for easy maintenance, plus real-time network communication status monitoring.
