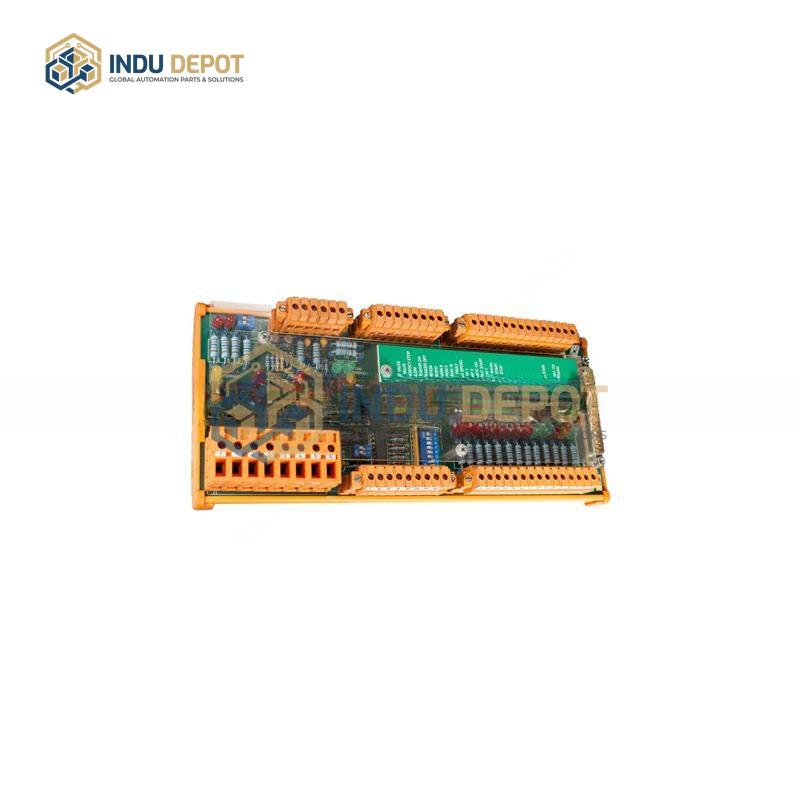

CMA 135 ABB Termination Board

Description

The CMA 135 ABB Termination Board is a specialized industrial connectivity component designed to streamline wiring and signal transfer between control system devices, though specific technical data for this exact model is not available. Based on comparable termination board products, key expected features and specifications include robust insulation performance, with defined air clearances and creepage distances, compliance with overvoltage category II and pollution degree 2 standards, and rated insulation voltage up to 50 V DC. It likely supports low-current signal applications, with per-branch current limits typically ranging from 0.1 A to 500 mA, and nominal operating voltage around 24 V DC or 30 V DC.

As a termination board, it is engineered to provide secure, organized connections between controllers and I/O cards, with common configurations including multiple channel counts (8 to 16 channels) and position counts (14 to 37 positions) to accommodate varying I/O needs. Expected interface types include screw connections with disconnect knives, IDC/FLK push-in front connections, or PCB SMT mounts, with compact overall widths starting at 19 mm for space-efficient installation in control cabinets. It is intended for use in industrial automation environments, such as manufacturing plants, process control systems, and machinery control setups, to enhance wiring reliability, reduce installation time, and simplify system maintenance.
