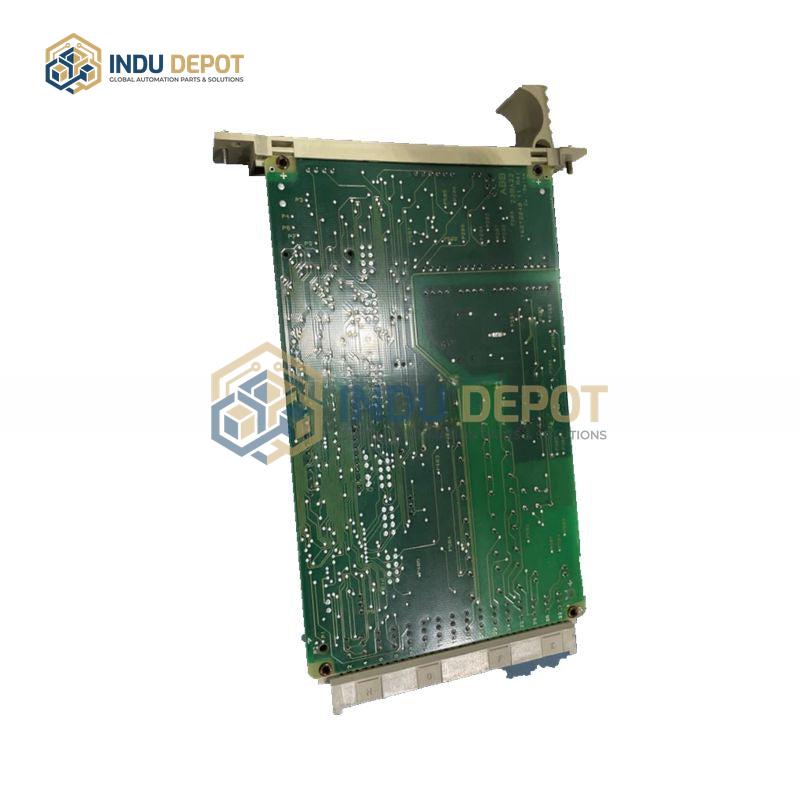

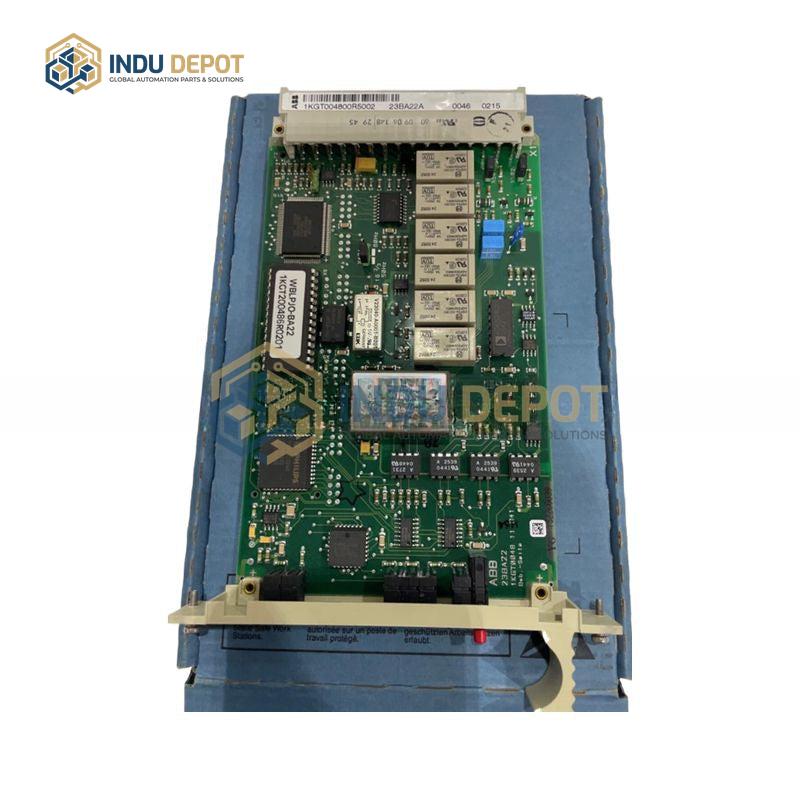

Command Output Monitoring Board ABB 23BA22A 1KGT004800R5002
Description
Command Output Monitoring Board ABB 23BA22A 1KGT004800R5002 is a command output monitoring board designed for use in the RTU560 system, with functional and pin compatibility with the ABB 23BA23 board. It supports monitoring and control of interlock relay output circuits to ensure safe and proper operation of connected equipment.
| Specification | Value |
|---|---|
| Compatible System | RTU560 |
| Compatible Related Board | ABB 23BA23 |
| Max Parallel Units per System | 16 (for 23BA23, applicable to compatible 23BA22A) |
| Adjustable Relay Coil Resistance Range | 100 to 10000 ohms, in 10 ohm increments |
Key Features:
- Supports “n select 1” check to ensure only one intermediate relay in the output circuit is activated
- Integrates two separate inspection circuits for different types of interlock relays, with user-definable tolerance ranges
- Provides electrical isolation for inspection circuits via DC/DC converters and optocouplers, no auxiliary test voltage required
- Suppresses line frequency during measurements, with adjustable interlock relay coil resistance limits for diagnostics
- Blocks output and triggers error notifications if measured resistance falls outside configured limits
Applications:
- Output circuit monitoring and control in RTU560-based industrial automation systems
- Interlock relay management for electrical equipment such as isolators and circuit breakers
- Diagnostic and safety monitoring for industrial relay control circuits
Related Models:
- ABB 23BA23
- ABB 23BA20
- ABB RTU560 System Companion Boards
