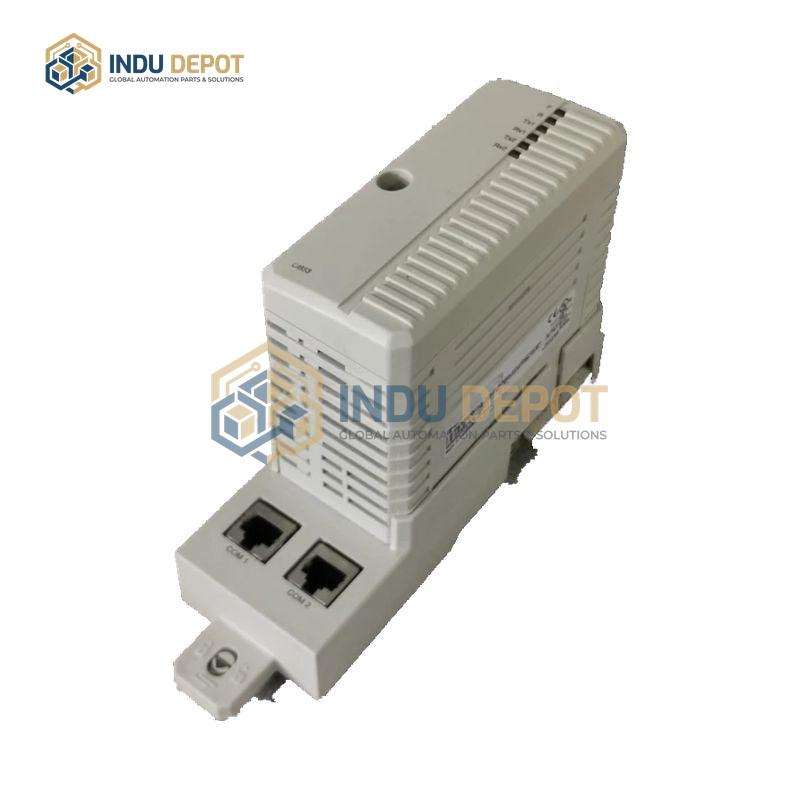

Communication Module ABB CI853 Automation Systems
Description
ABB CI853 Communication Module is a serial communication interface module part of the ABB AC 800M series, designed for reliable data exchange in industrial automation systems.
| Specification | Value |
|---|---|
| Product Identification | CI853K01, 3BSE018103R1 |
| Interface Types | 1 RS-232 full-duplex (DB9 female) for point-to-point; 1 RS-422/RS-485 half/full-duplex (screw terminal or DB9) for multi-point |
| Supported Protocols | Modbus RTU (master/slave), COMLI, ASCII (custom), Siemens 3964R, custom serial communication |
| Baud Rate Range | 300 bps to 115.2 kbps, configurable |
| Electrical Specifications | 500V isolation for RS-422/RS-485; 24V DC backplane power supply; 2-5W power consumption; 5-24V DC compatible for some scenarios |
| Environmental Ratings | Operating temperature -25 to 70 degrees Celsius; storage temperature -40 to 70 degrees Celsius; humidity 5% to 95% (no condensation); IP20 protection |
| Physical Dimensions | 60mm (width) × 120mm (height) × 100mm (depth); weight 0.7kg (with base) |
Key Features:
- Software-configurable communication parameters including baud rate, data bits, and stop bits
- LED status indicators for power, communication, and fault alerts
- Hot-swappable for easy system maintenance without shutdown
- Automatic baud rate detection for simplified device pairing
- Supports system-level redundancy (Modbus RTU does not support module-level redundancy)
- Long-distance communication up to several kilometers via fiber optic converter
Applications:
- Data collection and remote monitoring for SCADA systems
- Integration of PLCs, HMIs, frequency converters, and instruments in industrial networks
- Master or slave node in Modbus RTU networks for connecting third-party devices
- Controller-to-controller data transfer using COMLI protocol
Related Models:
- CI853-1
- CI853K01
- 3BSE018103R1
