Connection Circuit Board GE DS200ACNAG1ADD

Description

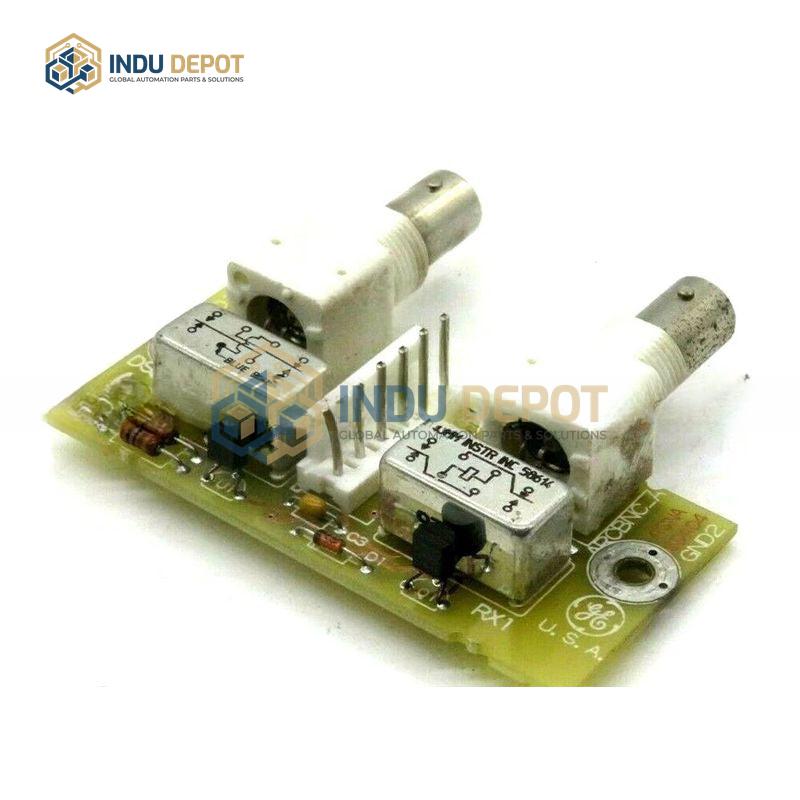

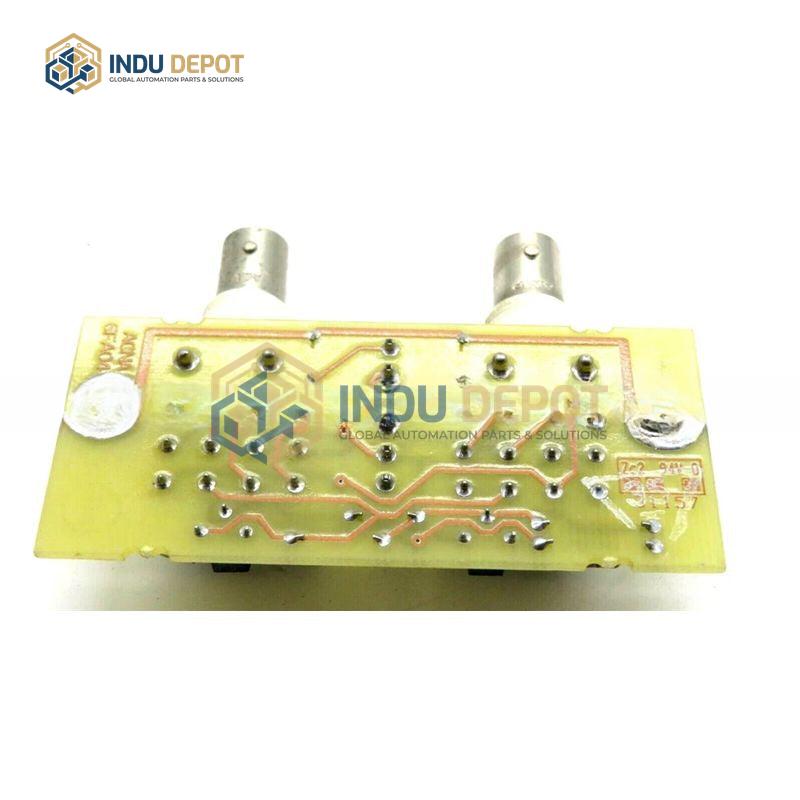

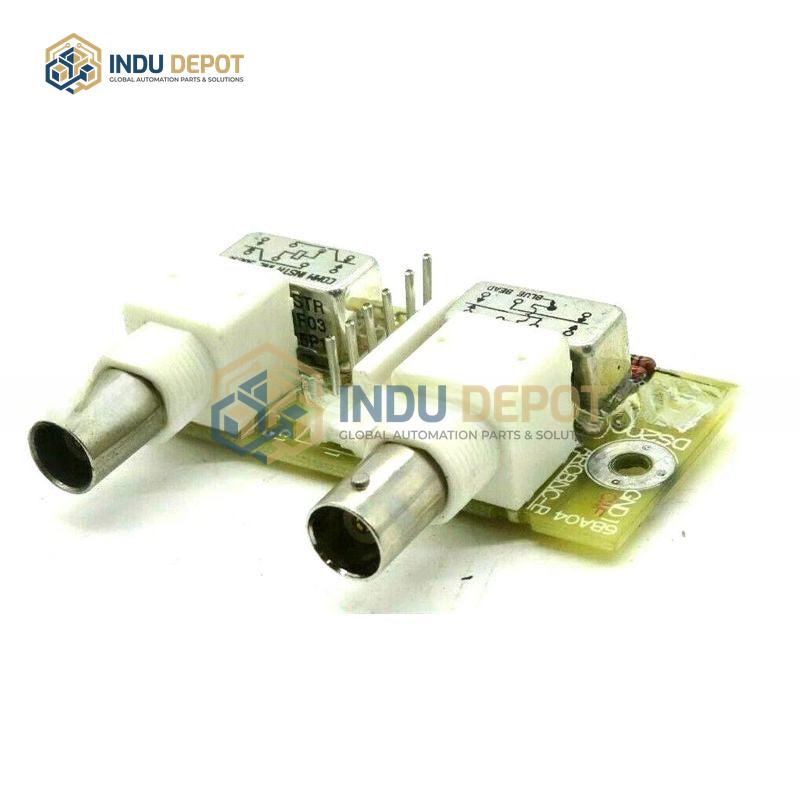

TheDS200ACNAG1ADD Circuit BoardbyGEis anARCNET communication interfacedesigned for theMark V turbine control system. It facilitateshigh-speed data exchangebetween themain processorandoperator interfaceviacoaxial cables. This board includesdual BNC connectors, a6-pin vertical terminal, and onboarddiagnostic relaysforsignal integrityandfault detection.
