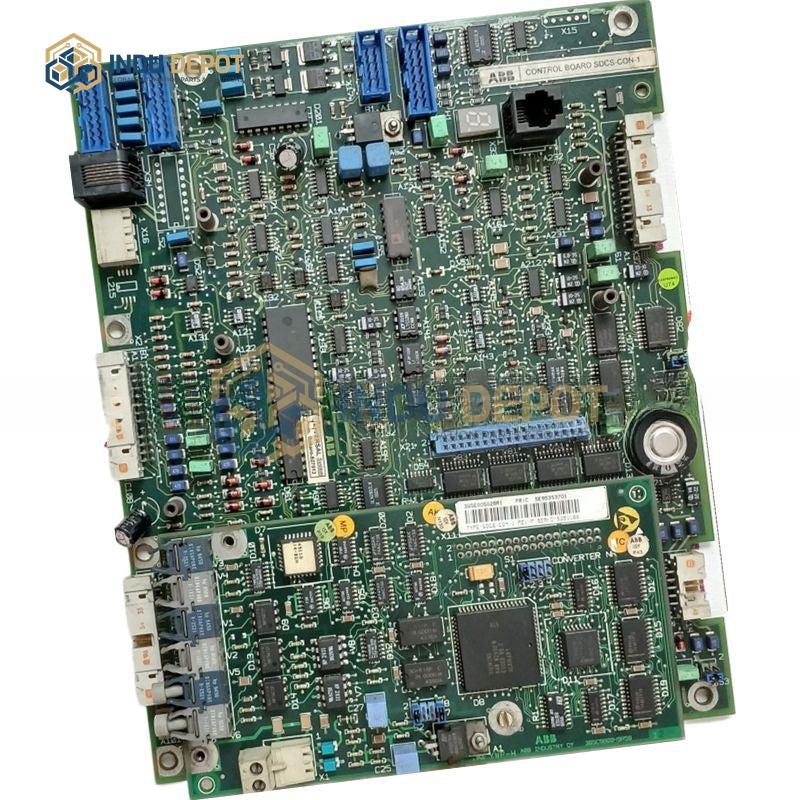

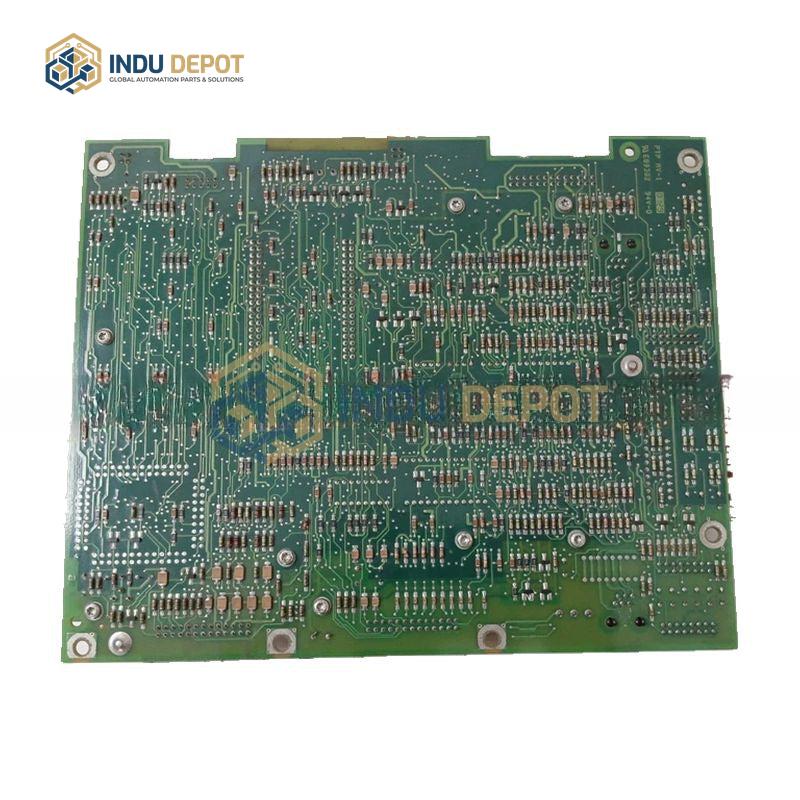

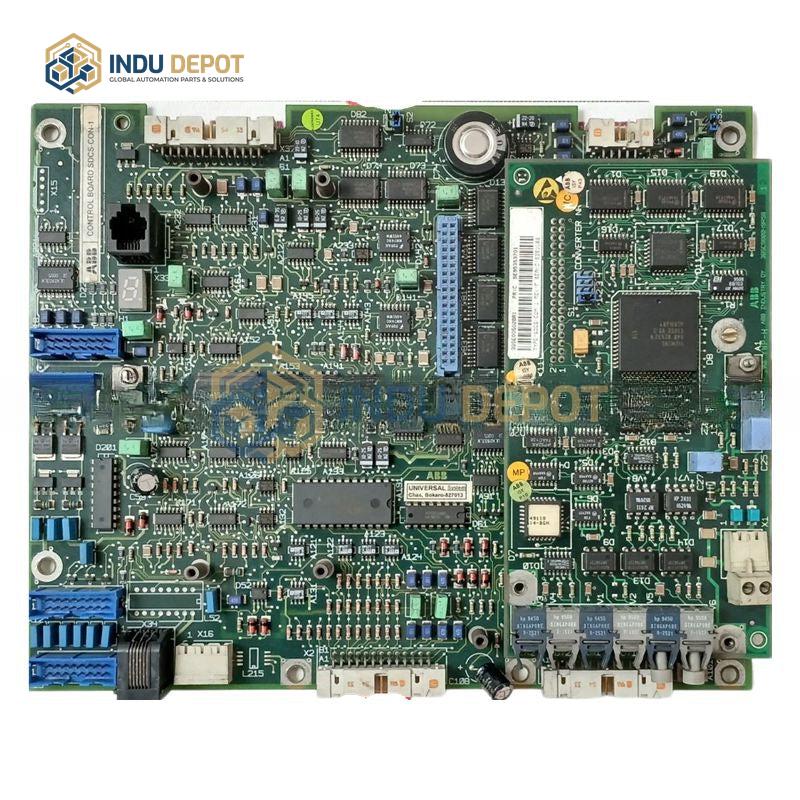

CPU Motherboard SDCS-CON-1 ABB for Industrial Automation
Description
ABB NKSD01/NKSD11 Series Pre-fabricated Cables are standardized connection cables designed exclusively for industrial automation control systems, providing reliable electrical connections between modules and terminal boards or between modules in distributed control systems.
| Specification | Value |
|---|---|
| Rated Voltage | 60V DC / 25V AC |
| Rated Current | 1.0 A per core |
| Contact Resistance | ≤ 20 mΩ |
| Available Lengths | 10 cm, 15 cm, 20 cm, 25 cm, 30 cm |
| Operating Temperature Range | -20 to 60 degrees Celsius |
Key Features:
- Factory pre-fabricated with dedicated connectors, 100% electrically tested to reduce on-site wiring work and improve installation efficiency
- NKSD01 model for digital signals and low-speed communication; NKSD11 model with shielding structure for analog signals and high-speed communication
- Compact design with DIN rail mounting capability, IP20 protection rating for use in industrial control cabinets
- Each length tailored to specific connection scenarios for flexible system configuration
Applications:
- Connection between adjacent ports on the same module (10 cm length)
- Connection between adjacent modules on the same substrate (15 cm length)
- Connection between nearby modules in the same cabinet (20 cm length)
- Interconnection of modules in standard cabinets (25 cm length)
- Short-distance connection across terminal boards (30 cm length)
- Compatible with Bailey Symphony Plus, INFI 90 distributed control systems
Related Models:
- NKSD01-10
- NKSD01-15
- NKSD01-20
- NKSD01-25
- NKSD01-30
- NKSD11-10
- NKSD11-15
- NKSD11-20
- NKSD11-25
- NKSD11-30
