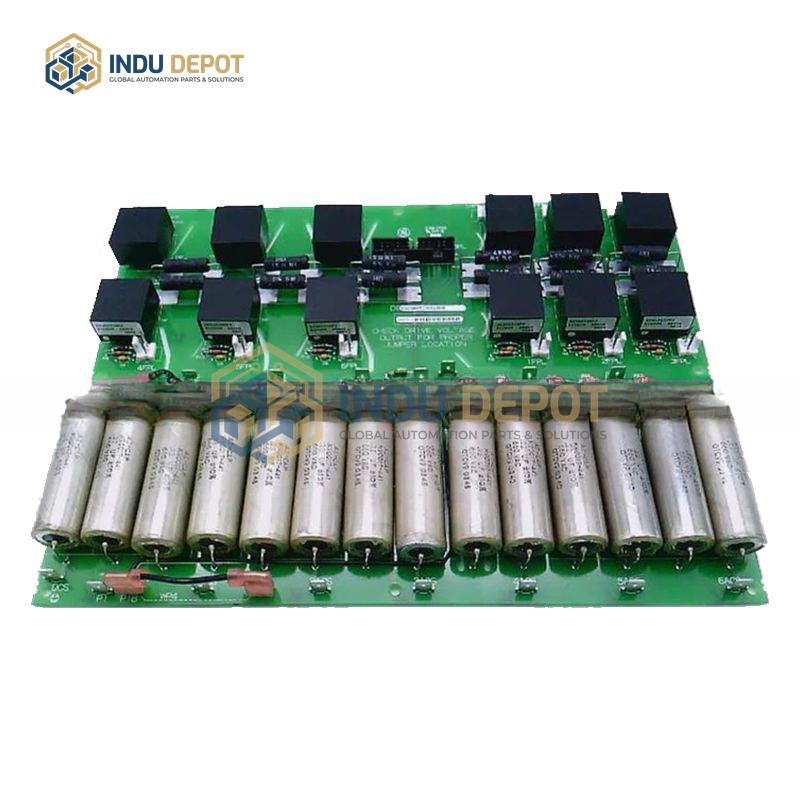

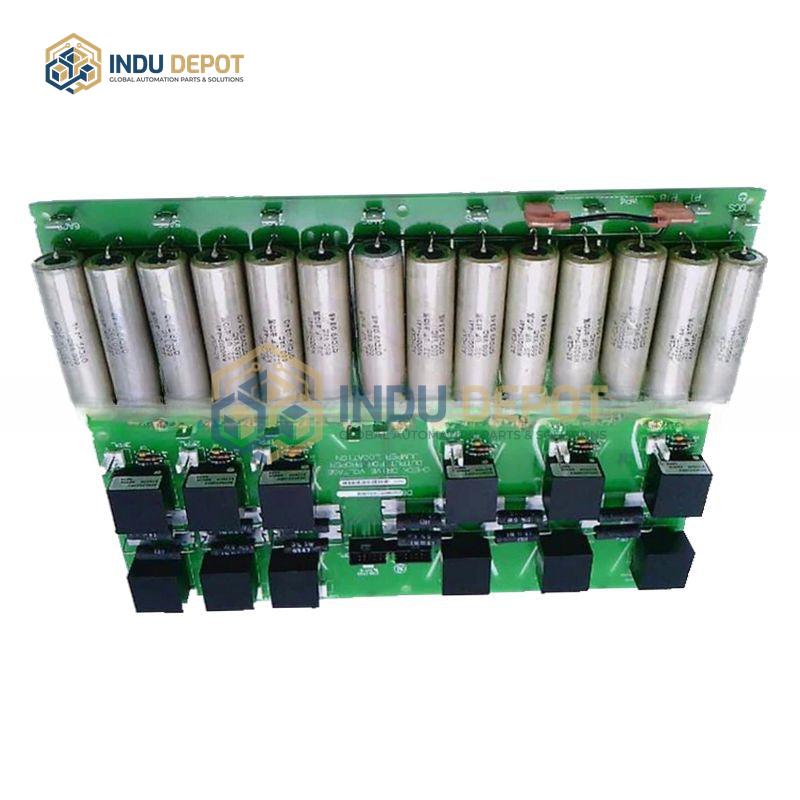

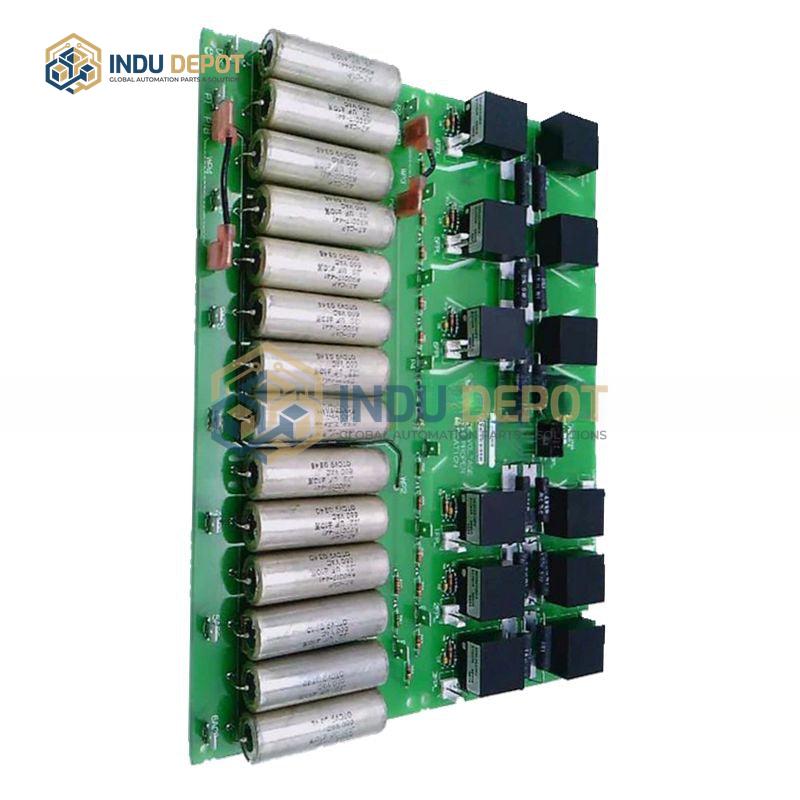

DC Power Connection Board Module GE DS200PCCAG1ADB
Description
GE DS200PCCAG1ADB (Similar to DS200PCCAG1ABB) is a high-performance DC power connection board module designed to provide reliable DC power distribution and connection in industrial environments, delivering power to devices like controllers, drives, and protection units.
| Specification | Value |
|---|---|
| Input/Output Voltage | 125V DC |
| Maximum Output Current | 1200A |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Dimensions (Metric) | 203 x 127 x 41 mm |
| Dimensions (Imperial) | 9.8 x 6.6 x 2.4 inches |
| Weight | 1.1 kg (approx. 1.2 pounds) |
| Connector Type | M12 connector |
| Protection Rating | IP65 |
| Efficiency | Up to 95% |
| Armature Voltage | Regenerative, 240-630V |
Key Features:
- High power efficiency for optimized energy usage
- Low power consumption while maintaining full performance
- High reliability with premium components and proven design for long-term stable operation
- Wide operating temperature range to suit diverse industrial environments
- Flexible installation with wall-mount or DIN rail mounting options
- Integrated over-current and over-voltage protection for connected device safety
- 4 jumpers (JP1, JP2, WP3, WP4) for configuration flexibility
Applications:
- Power generation plants for generator excitation control and protection
- Substations for power system stability and protection
- Industrial automation systems to supply stable DC power to control and drive equipment
- Modern industrial sectors including oil, mining, ports, heating, gas, water supply, and wastewater treatment
