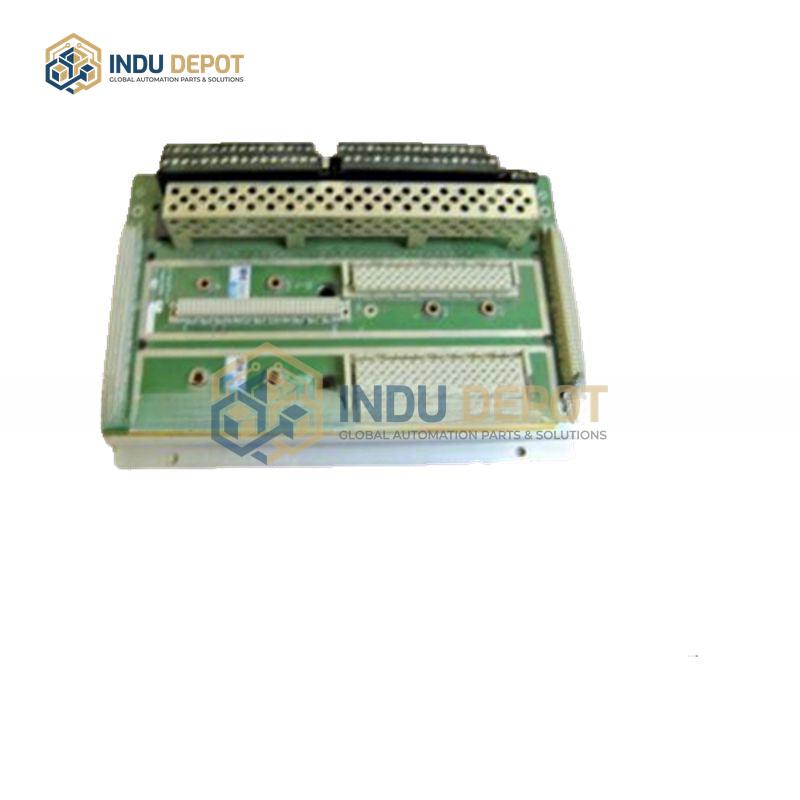

DI2301 7400208B-020 Triconex DI Baseplate Compact Mounting for Safety Systems

Description

DI2301 7400208B-020 is a compact digital input baseplate designed for safety instrumented systems (SIS). As a component of the Triconex safety platform, it features a Triple Modular Redundancy (TMR) design that eliminates single points of failure, delivering high reliability for critical safety applications. This baseplate collects digital signals from sensors and switches, then transmits the processed data to control systems, ensuring uninterrupted data input support for safety-critical operations.

Key technical specifications include 32 independent digital input channels, a nominal input voltage of 24VDC with an optional range of 18-36VDC, and typical input current of 0 to 5mA depending on configuration. It operates on 24VDC power with a power consumption of 5W, and has compact dimensions of 140mm x 70mm x 30mm, weighing approximately 200g. Installation is simplified via 35mm DIN rail mounting, and it performs reliably in harsh environments with an operating temperature range of -40 degrees Celsius to 85 degrees Celsius, storage temperature range of -50 degrees Celsius to 90 degrees Celsius, and supports relative humidity below 5% without condensation.

Equipped with communication support for RS-232/RS-485 serial communication, Modbus, and OPC protocols, it integrates seamlessly with existing control architectures. It is widely deployed in industries including oil and gas, chemical, power, pharmaceuticals, and metallurgy, supporting safety-critical loops such as emergency shutdown systems (ESD), fire and gas detection systems (F&G), burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).
