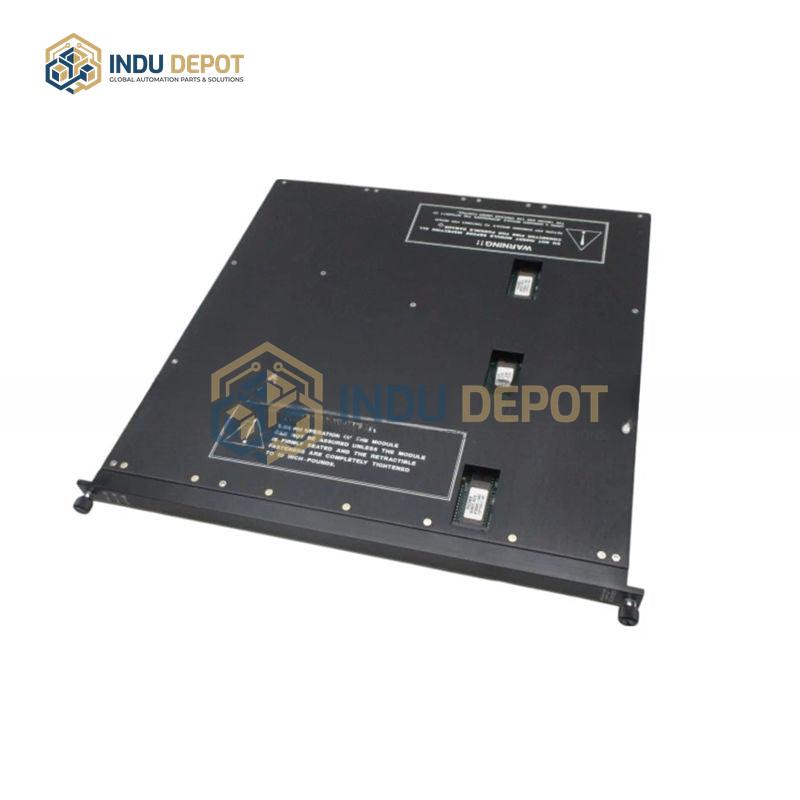

Digital Output Module Triconex 3625N

Description

The Digital Output Module Triconex 3625N is a high-reliability industrial control component designed to convert control system digital signals into actionable outputs to drive devices such as motors, valves, and relays. Built with TMR (Triple Modular Redundancy) technology, it delivers exceptional system reliability, supporting configurable supervised/unsupervised outputs and integrated self-diagnostic functions to detect module faults promptly. This module features 32 digital output channels and up to 16 input channels, with each output channel capable of supplying 1.7A current at a 24V DC output voltage; it operates within a shared voltage range of 16-32V DC, with a maximum allowable voltage of 36V DC. Key performance specifications include a response time of less than 10ms, maximum power consumption of 50W, and Modbus TCP/IP communication protocol for seamless system integration. Engineered for harsh industrial environments, it has an operating temperature range of -40 degrees Celsius to 85 degrees Celsius, storage temperature range of -40 degrees Celsius to 85 degrees Celsius, and IP67 protection rating. Ideal for strict safety control applications, it is commonly used in Safety Instrumented Systems (SIS) to implement functions like safety interlocking and emergency shutdown.
