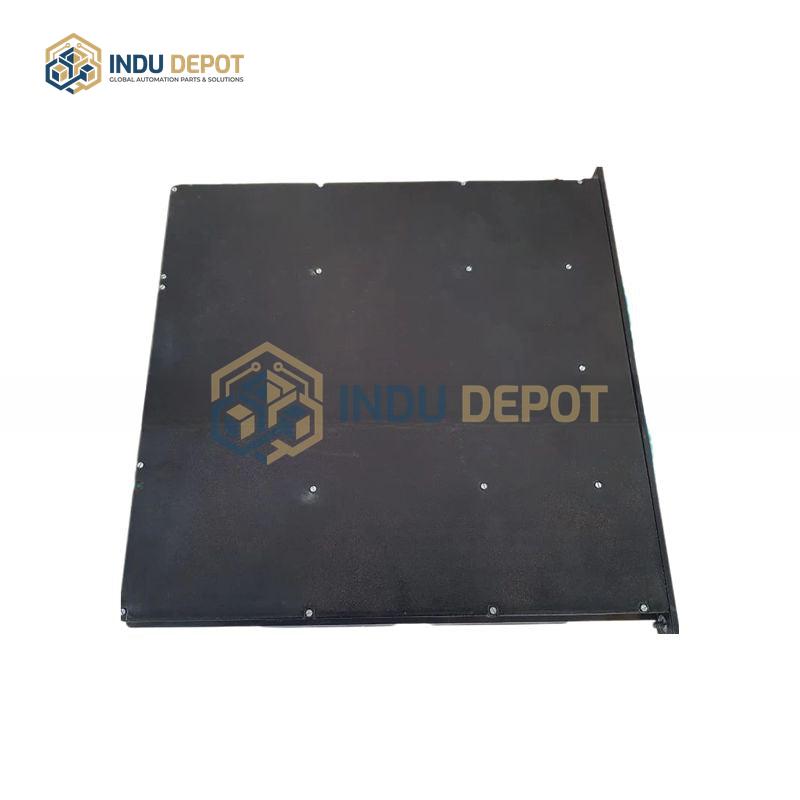

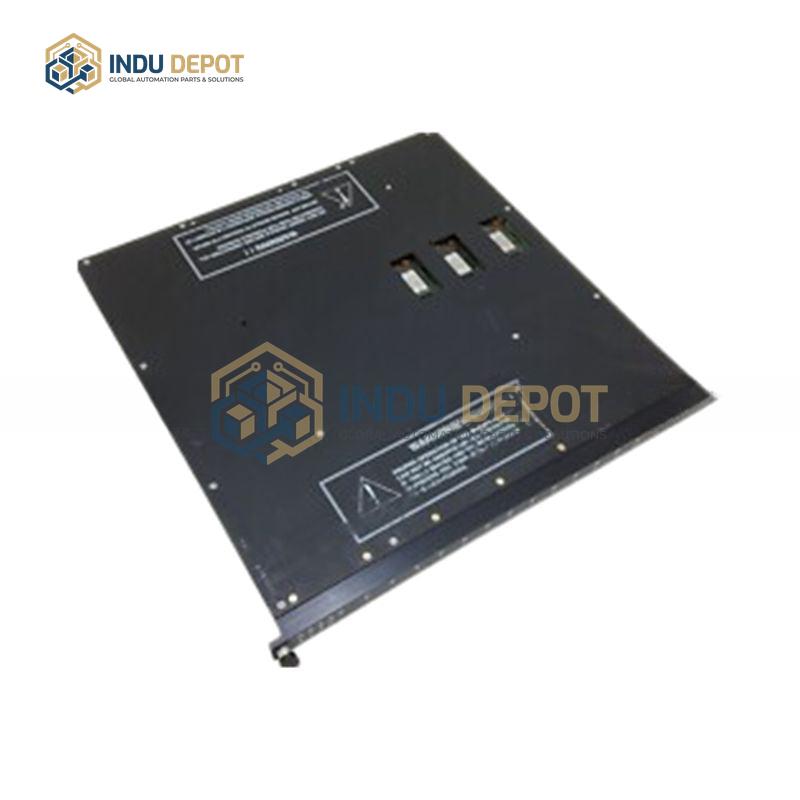

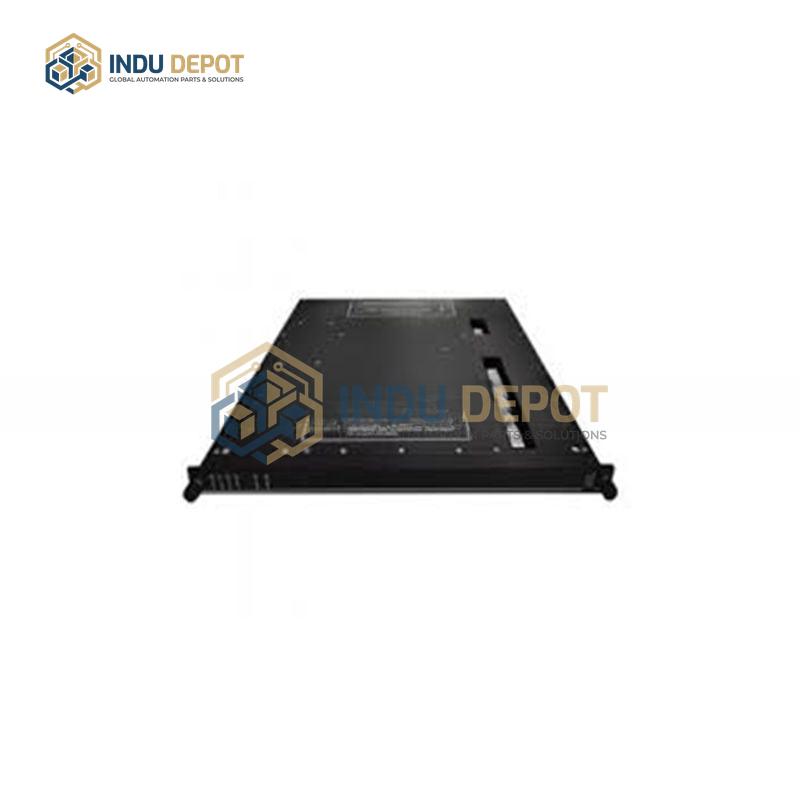

Digital Output Module Triconex 3664E

Description

The Digital Output Module Triconex 3664E is a core component of the Triconex fault-tolerant control system, a high-reliability Safety Instrumented System (SIS) for critical industrial process control and safety protection. Its primary function is to convert digital signals into safety-isolated digital output signals to drive final control elements such as relays and valves, enabling precise, safety-focused control operations. Key technical specifications include 32 output channels supporting relay or solid-state relay (SSR) output, with a rated voltage of 24V DC. Each channel delivers a maximum steady-state current of 2A, with a transient surge capacity of 10A, and operates on a maximum power consumption of ≤10W. The module features 2500Vrms isolation voltage with photoelectric isolation for enhanced signal integrity and safety, plus built-in diagnostic functions and support for Modbus TCP/IP communication protocol. It supports hot backup redundancy design and complies with the IEC 61508 SIL 3 standard for high safety performance. Operating temperature ranges from -40 degrees Celsius to 85 degrees Celsius, with storage temperature spanning the same range, and offers optional protection ratings of IP20 or IP67. Typical dimensions range from 100mm x 80mm x 35mm to 175mm x 114mm x 32mm, with weight varying from 500g to 2.5kg. It is widely used in industrial automation, safety interlock systems, and critical process control applications.
