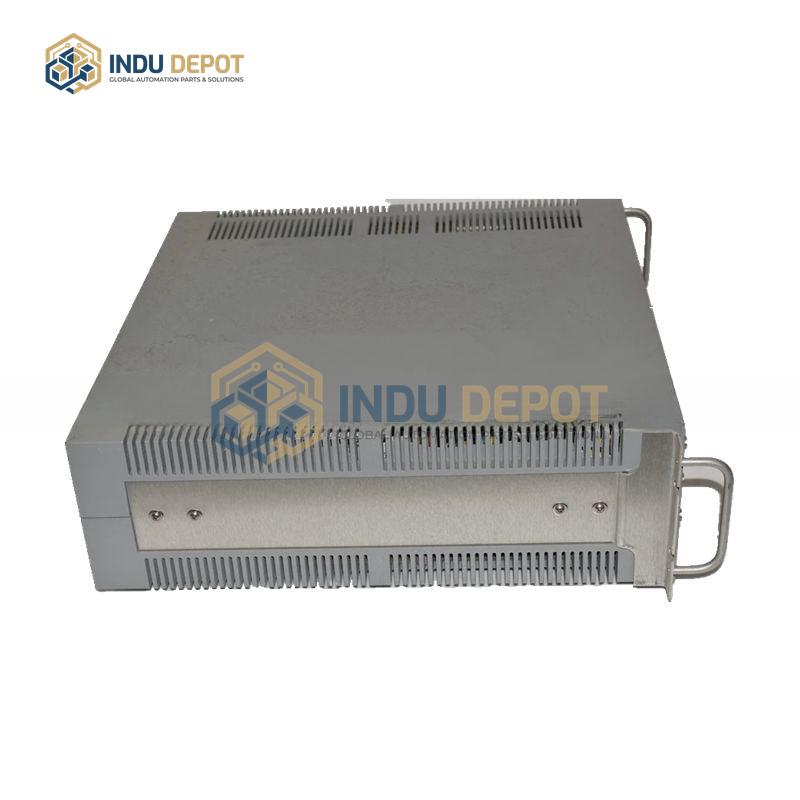

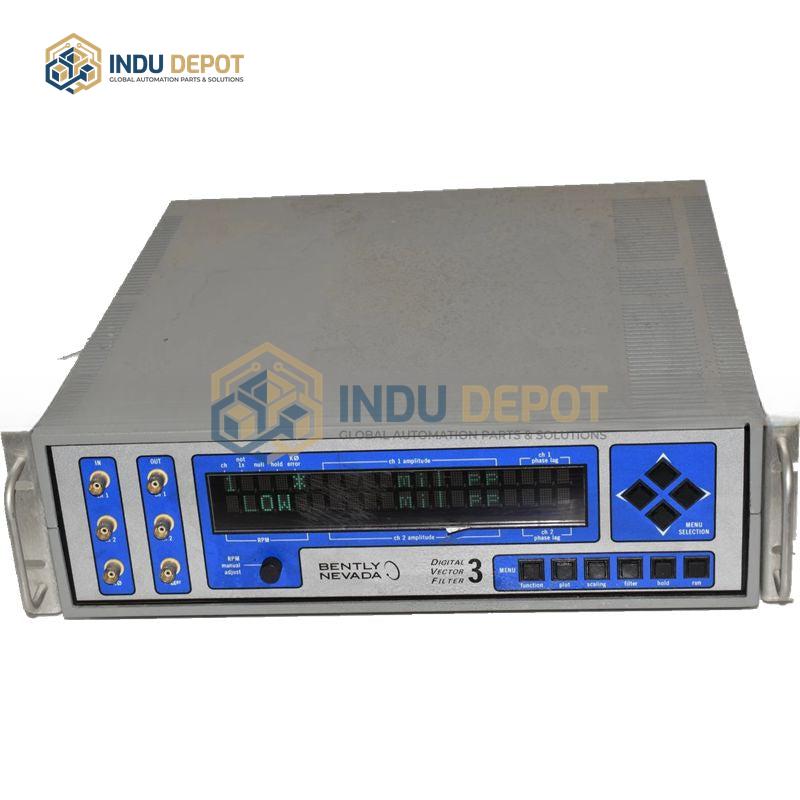

Digital Vector Filter 77581-02 Bently Nevada Rotor Analysis Module

Description

The77581-02 Digital Vector Filter (DVF 3)is part ofBently Nevada’s third-generation DVF series, built to supportcomplex vibration analysisin industrial environments. It captures dynamic signals fromproximity probes, velocity transducers, and accelerometers, making it ideal for evaluatingrotor behavior, detecting cracks, and performing balancing procedures. Moreover, the module includesKeyphasor? inputfor accurate phase referencing, enabling engineers to generateBodé plots, polar plots, sweep frequency plots, and vector displays. These capabilities are essential fordiagnosing machinery faults and optimizing performance. For instance, in agas turbine application, the DVF 3 helps identifyresonance conditions and shaft instabilitybefore they escalate into critical failures. In addition, the 77581-02 isCE-certifiedand designed for integration into Bently Nevada’s monitoring systems, includingSystem 1 software. Itsrugged construction and high-speed data handlingmake it suitable for demanding applications inpower generation, petrochemical, and aerospace sectors.
