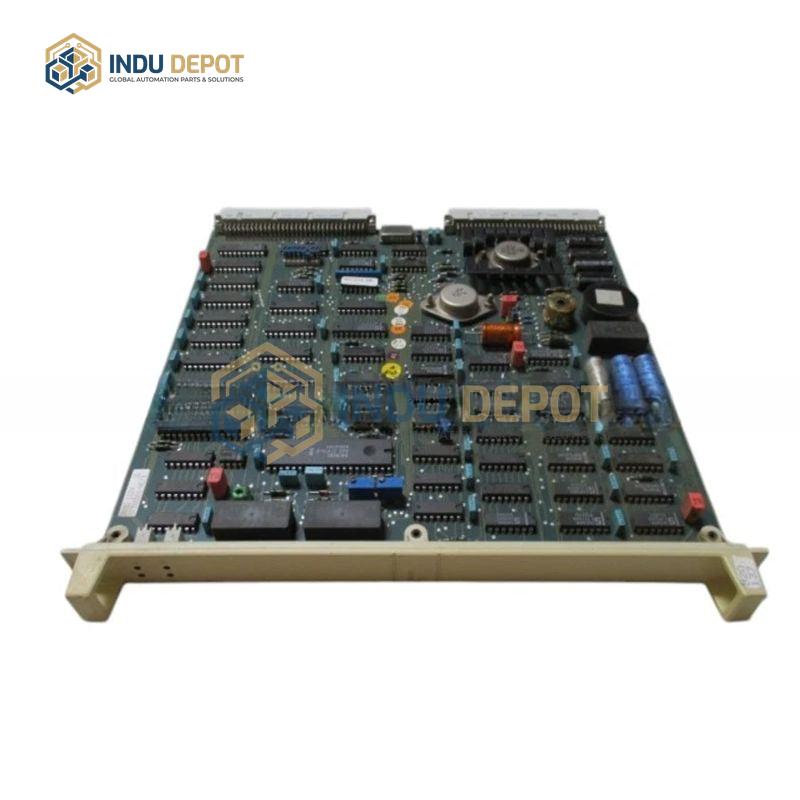

Disk Controller Board ABB DSMC112 for Power Process Systems
Description
ABB DSMC112 Disk Controller Board is a high-precision control module designed for power process systems, offering advanced calculation and control capabilities for industrial automation applications.
| Specification | Value |
|---|---|
| Rated Voltage | 85 – 132V, 47 – 63Hz |
| Rated Current | 0.5A |
| Dimensions (H x W x D) | 18.8 x 8.6 x 5.6 cm (7.40 x 3.40 x 2.20 inches) |
| Operating Temperature | -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit) |
| Storage Temperature | -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) |
| Mounting Method | DIN rail mounting |
| Weight | 0.16 kg |
Key Features:
- Four independent mathematical modules with seven operators and operands each, supporting square root, relative humidity, and arithmetic functions, with digital signal input selection for simple and advanced calculations
- Control Efficiency Monitor (CEM) that measures and displays six key performance parameters to fine-tune PID settings for process alignment
- Two PC-configurable 15-breakpoint linearizers for input or output, compatible with non-standard thermocouples, nonlinear tank levels, and nonlinear control elements
- High tracking accuracy for precise process control
Applications:
- Refining and petrochemical processing
- Upstream and midstream oil and gas operations
- Chemical and specialty chemical manufacturing
- Power generation systems
- Emergency shutdown, fire and gas, and burner management systems
