DO815 ABB Digital Output I/O Module for Control Systems
Description

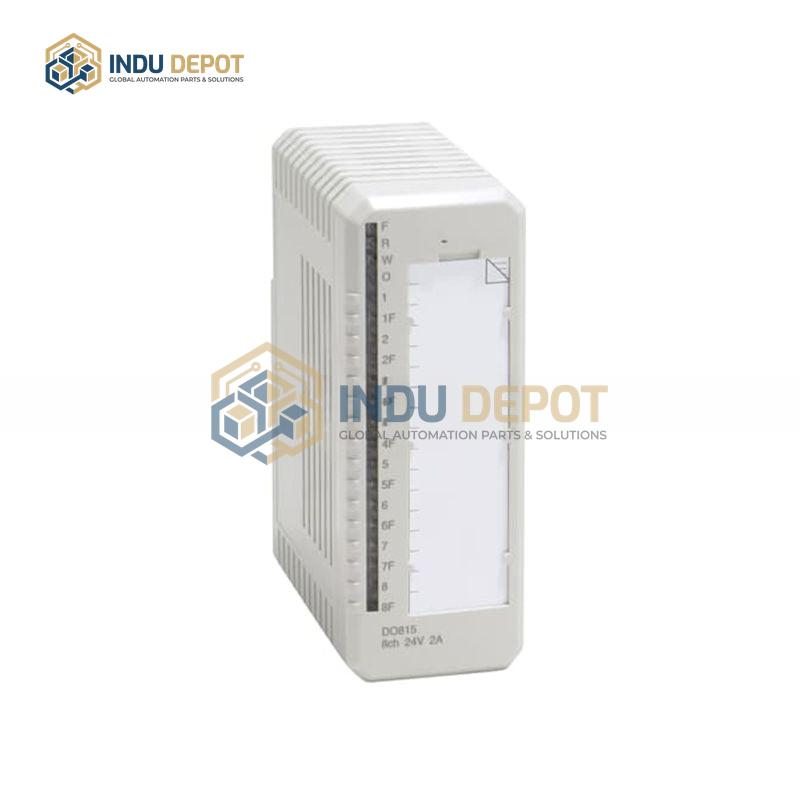

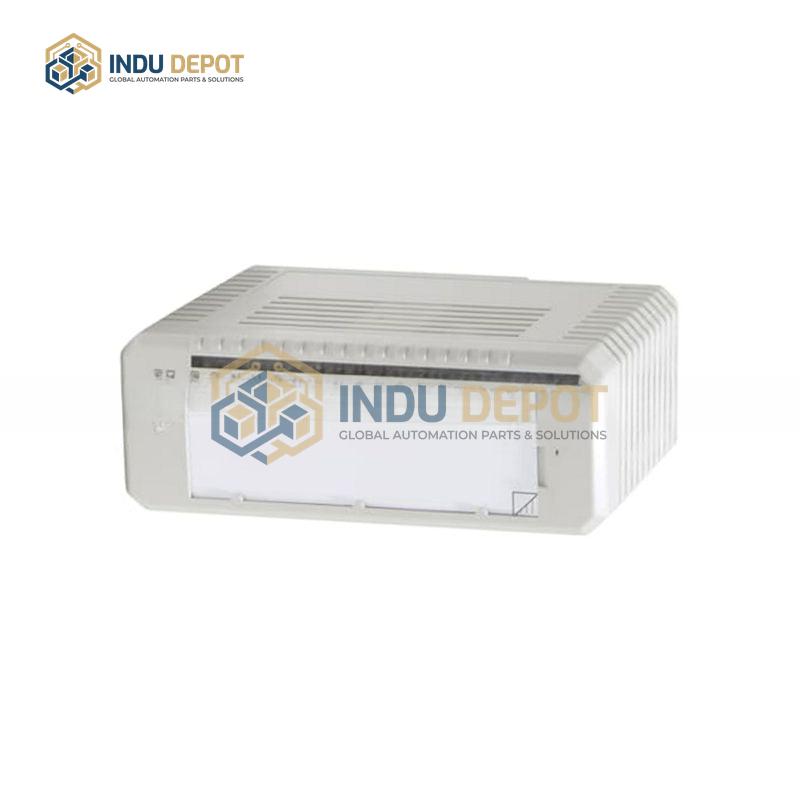

DO815 3BSE013258R1 is an 8-channel 24V DC digital output module designed for ABB S800 I/O systems, serving as a critical bridge between controllers and field actuators in industrial automation setups.
| Specification | Value |
|---|---|
| Product Type | Digital Output Expansion Module |
| Number of I/O Points | 8 |
| Output Voltage Range | 10 to 30V DC |
| Continuous Output Current per Channel | 2A @ 24V DC |
| Isolation Configuration | 2 isolated groups of 4 channels each |
| Interface Type | PROFINET |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Housing Material | Plastic |
| Process Side Connection | Jack Panel |
| Supported Systems | PLC/DCS |
| Certifications | CE, CCC |
Key Features:
- 8 channels for 24V DC sourcing output
- Undervoltage detection for each isolated group
- Output Switching Protection (OSP) sets outputs to predefined state during communication errors
- Output status indicator LEDs and channel error flags
- Ground and positive power short circuit protection, plus overload protection
- Open load and short circuit detection capabilities
- Two fault operation modes: automatic reset and fault latch
- Capable of driving inductive loads and incandescent loads up to 10W
- EMC protection components and optical isolation for each channel
Applications:
- Industrial automation control systems for petrochemical, power energy, and smart manufacturing industries
- Control of field actuators such as solenoid valves, relays, and small motors
- High-reliability process control environments requiring isolated output groups
Related Models:
- AI815 (Analog Input Module)
- AO815 (Analog Output Module)
- AI810 (Analog Input Module)
- AO820 (Analog Output Module)
