Drive Signal Conditioning Interface GE DS200SHVMG1AGE
Description

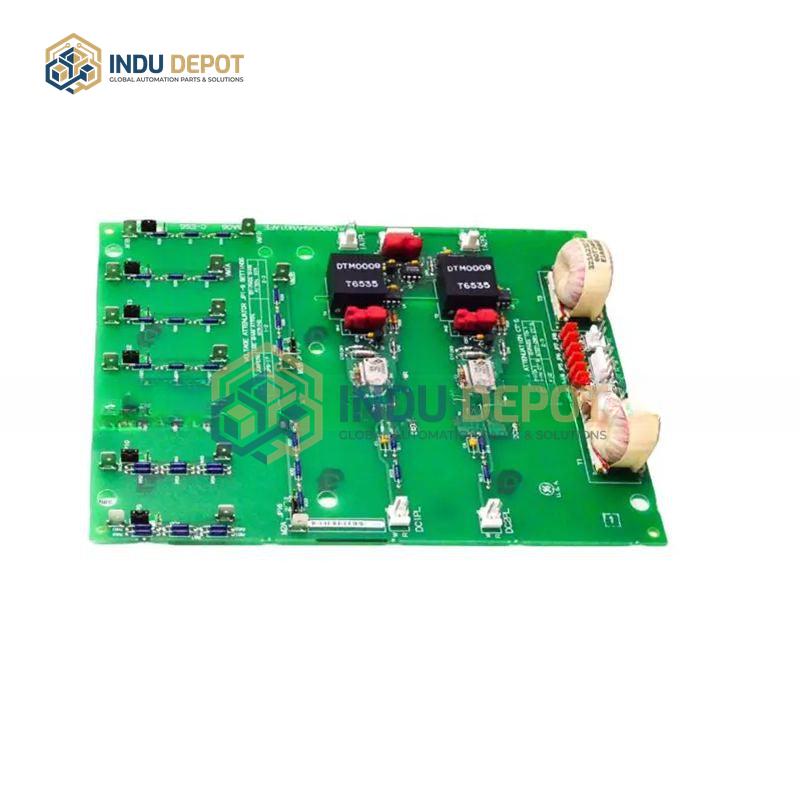

DS200SHVMG1AGE is an isolated 12-bit analog output and simplex servo I/O terminal board from General Electric, part of the Mark V series for gas turbine control systems, and also compatible with the GE Speedtronic Mark VI series.
| Specification | Value |
|---|---|
| Manufacturer | General Electric |
| Product Type | RST Analog I/O Board, Simplex Servo I/O Terminal Board |
| Series | Mark V, compatible with Mark VI Speedtronic |
| Resolution | 12-bit |
| Servo Coil Current Range | 10 to 120 mA (selectable via jumpers) |
| Connection Interface | 37-pin cable to VSVO processor board, 3PL connector, JE connector |
Key Features:
- Provides 2 servo outputs, I/O for 6 LVDT position sensors, and 2 active pulse rate inputs for flow monitoring
- Scales and conditions multiple analog signals including LVDT inputs, 4-20 mA signals, thermocouple inputs, vibration inputs, and generator/line signals
- Supports vertical stacking on DIN rails to save cabinet space; up to 2 units can be linked to a single VSVO processor board
- Includes on-board high-frequency ground decoupling functionality
- Transmits signals to STCA and TCQC boards via dedicated connectors
Applications:
- Gas turbine control systems
- Signal conditioning and processing for industrial turbine and generator control setups
- Compressor stall detection and fuel flow pressure monitoring systems
Related Models:
- DS200SHVMG1AFE
- VSVO Processor Board
- STCA Board
- TCQC Board
