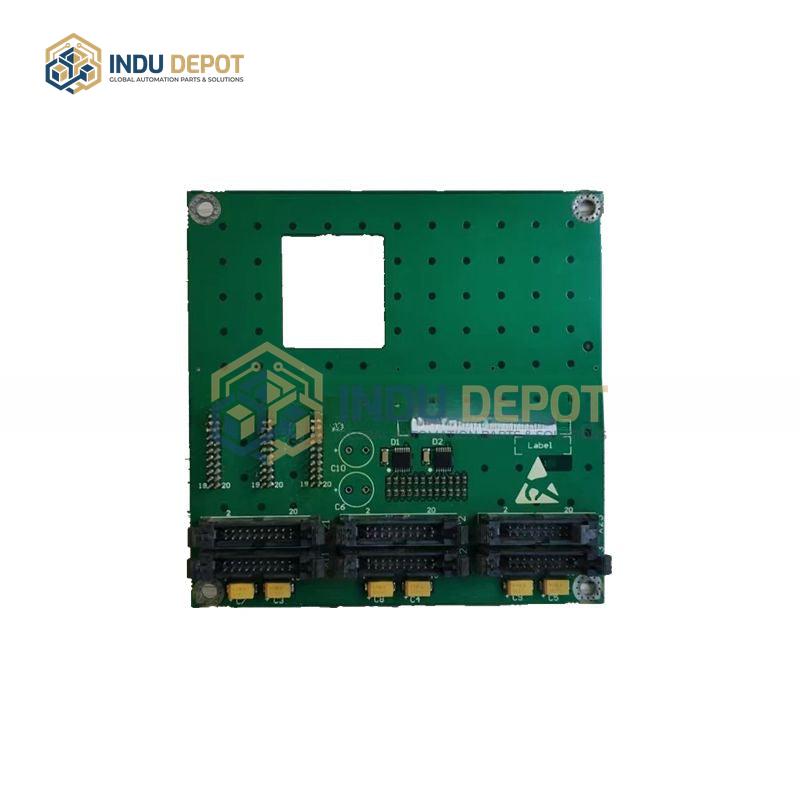

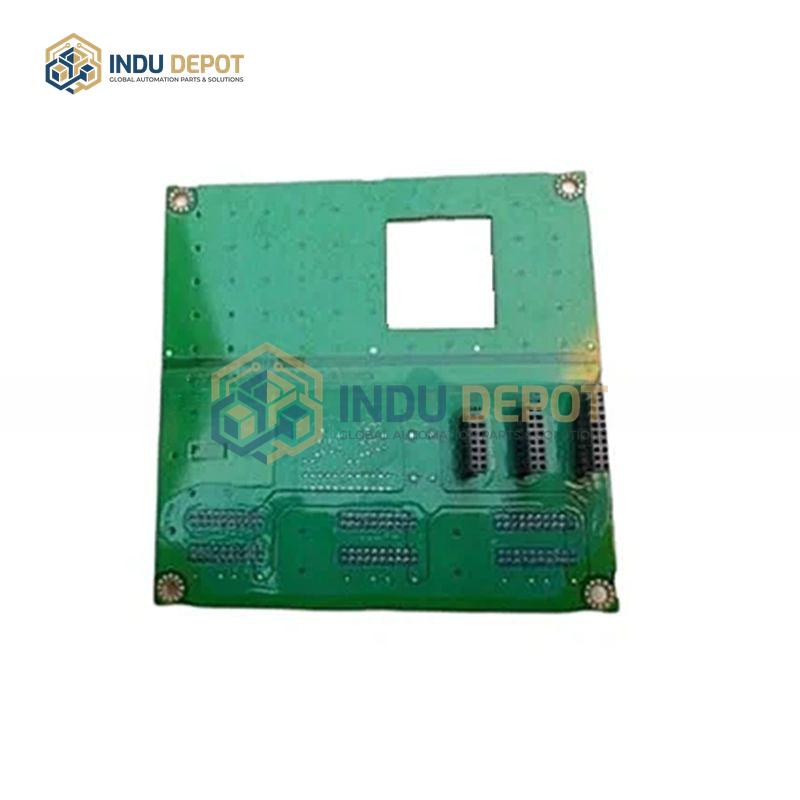

Driver Trigger Board AGBB-01C ABB Automation Series Component
Description
AGBB-01C Driver Trigger Board is a digital I/O PLC controller module from ABB Automation Series, designed as a core control component for industrial automation systems, specializing in high-speed digital signal processing and device integration.
| Specification | Value |
|---|---|
| I/O Channels | 16 digital inputs (DI) + 16 digital outputs (DO) |
| Signal Types | DI: 24V DC (compatible with NPN/PNP sensors); DO: relay/transistor selectable |
| Response Time | Input ≤0.1ms, Output ≤0.5ms (typical) |
| Processing Speed | 0.01 microseconds per instruction, 1 million instructions per second |
| Communication Interfaces | Integrated EtherNet/IP, PROFINET, Modbus TCP |
| Environmental Rating | IP20, -20 to 60 degrees Celsius, vibration resistance 3M3 |
| Expansion Capacity | Supports up to 64 module extensions, compatible with all ABB I/O and function modules |
| Safety Certifications | IEC 61508 SIL2, ISO 13849 PL d |
Key Features:
- Ultra-high speed response enables real-time signal capture and actuation, boosting production line capacity by up to 40% compared to traditional PLCs
- Multi-protocol seamless compatibility supports mixed networking with third-party devices from Siemens, Rockwell, and other brands
- Dual watchdog circuit and redundant power design ensure MTBF over 500,000 hours for long-term reliable operation
- Flexible output configuration allows free switching between relay and transistor outputs, saving 30% of cabinet space
Applications:
- Automated sorting and packaging systems in discrete manufacturing
- Safety interlock control for chemical reaction kettles in process industries
- Motor and conveyor control in automotive assembly plants
- Warehouse storage and logistics automation systems
Related Models:
- BGDR-01C ABB Inverter Driver Board
- RMIO-01C ABB Modular Control Interface Board
- NGDR-02C ABB Trigger/Protection Board
