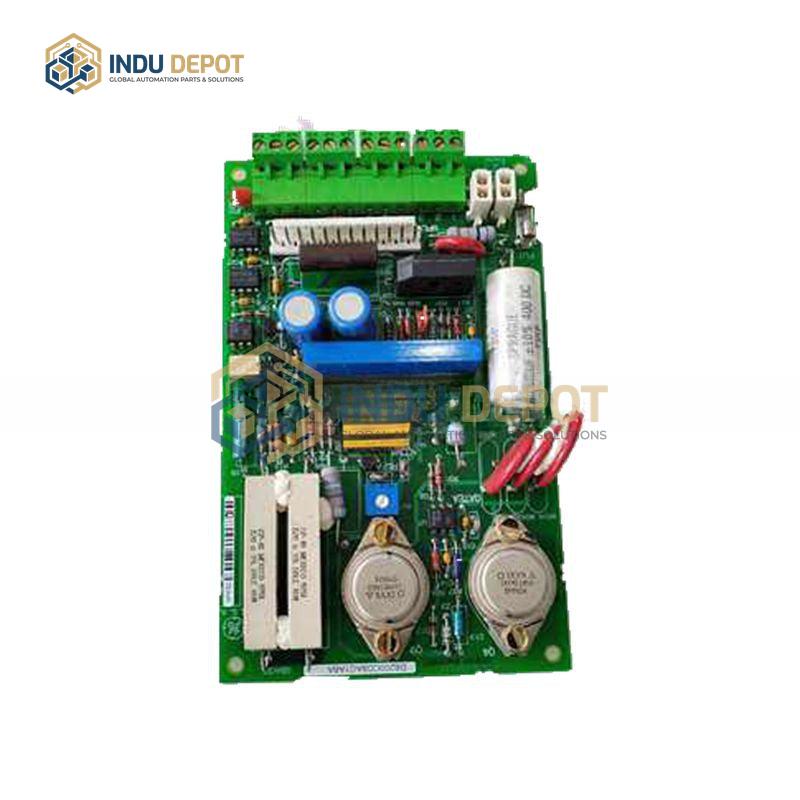

DS200CDBAG1BDB GE Contactor Drive Module
Description
DS200CDBAG1BDB GE Contactor Drive Module is a contactor drive and RST analog I/O board from GE’s Mark V series, designed to interface main drive controls to high-speed contactors within the Mark V system, and scale and condition a wide range of analog signals for gas turbine control systems.
| Specification | Value |
|---|---|
| Product Type | Contactor Drive Module, RST Analog I/O Board |
| Manufacturer | GE Boards & Turbine Control |
| Series | Mark V DS200 |
| Supply Voltage | 75-149 V AC/DC |
| Operating Voltage | 24 V |
| Output Frequency | 125 Hz |
| Country of Origin | United States |
Key Features:
- High-quality, durable construction for long-term industrial use
- Precise control enables accurate contactor switching
- Easy to install and maintain for reduced downtime
- Scales and conditions multiple analog signal types including LVDT inputs, 4-20 mA I/O, vibration inputs, and generator signals
- Interfaces with other Mark V series boards via 3PL and JE connectors
Applications:
- Gas turbine control systems
- Industrial drive control systems requiring high-speed contactor interface
- Analog signal processing and conditioning for power generation equipment
Related Models:
- DS200STCAG1A
- DS200TCQCG1A
- DS200TCQAG1A
- DS200CDBAG1A
- DS200CDBAG2A
