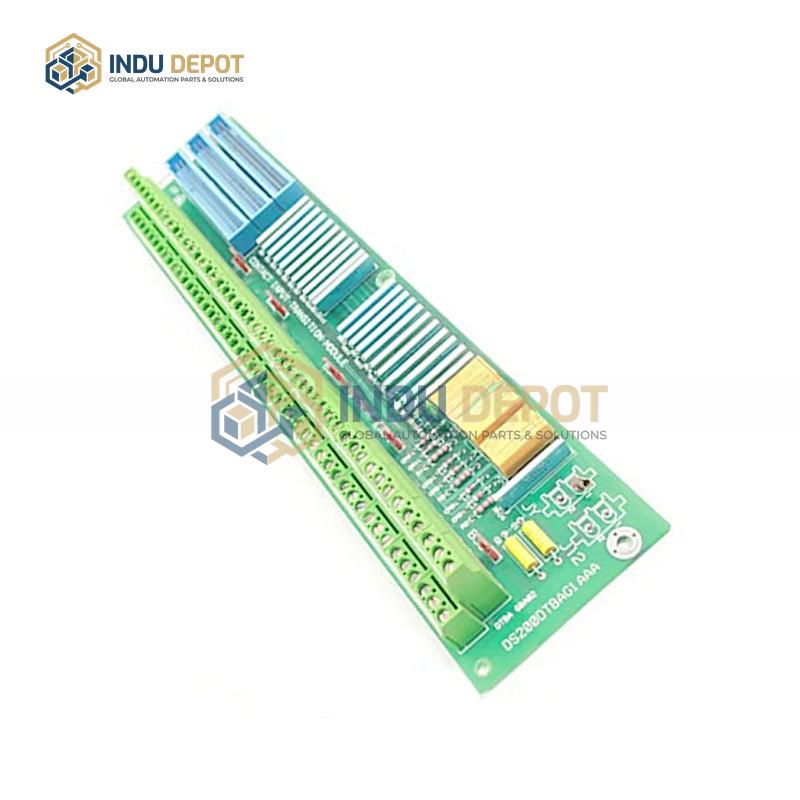

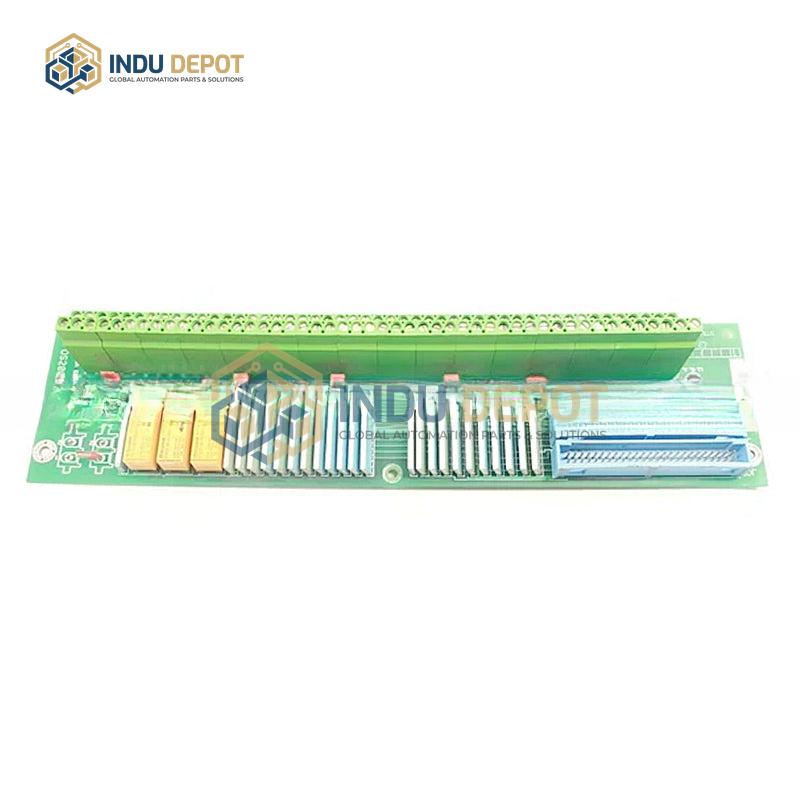

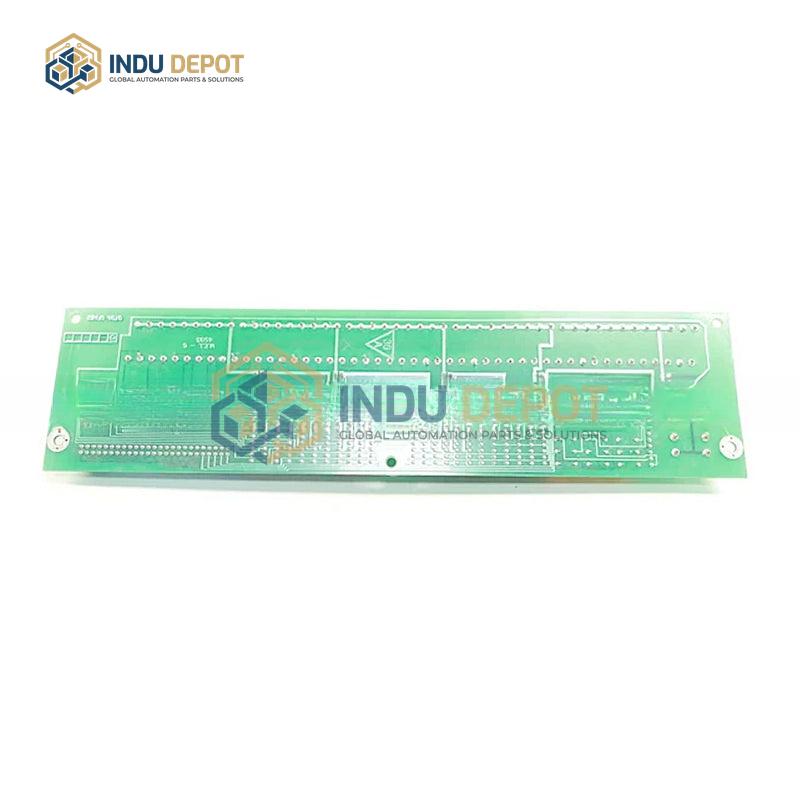

DS200DTBAG1AAA | GE Fanuc | Contact Input Termination Module

Description

DS200DTBAG1AAA is a Contact Input Termination Module from GE Fanuc, part of the Mark V and compatible with Mark VIe control systems, categorized as an industrial control product. This digital contact terminal board features 16 single-ended contact inputs and 2 isolated DC power supplies, supporting reliable signal reception and power distribution for industrial control setups. It is equipped with 2 terminal blocks that can accommodate up to 95 wires, plus 5 jumpers and 2 2-pin connectors for flexible wiring configurations. When connecting to other models in the Mark V DS200 series, it uses four dedicated connections: J12, JQR, JQS/T, and JY, with JQS/T being less frequently utilized. A key protective feature is its conformal coating, which guards against environmental contaminants to enhance durability in harsh industrial environments. Designed for versatility, this module is suitable for use in critical sectors including power generation, oil and gas, water and wastewater treatment, chemical processing, and general manufacturing, providing stable contact input termination and signal management for complex control systems.
