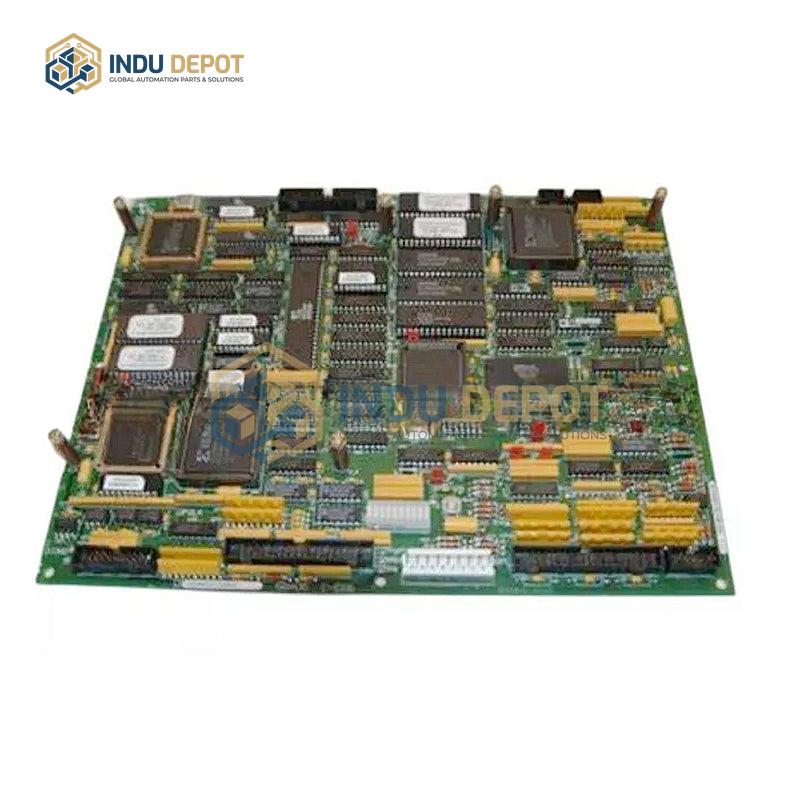

DS200LRPBG1AAA | Resolver Board Mark V General Electric

Description

DS200LRPBG1AAA is a Resolver Board (RST Analog I/O Board) from the GE Mark V series, designed for gas turbine control systems. As a modular hard PLC component, it is intended for control room installation and mounts to I/O cores R1, R2, and R3 to scale and condition a wide range of analog signals read from terminal boards. Key signal types it handles include LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals. It features a 3PL connector to write select signals to the STCA board, and a JE connector to send and receive generator and line signals with the TCQC board; it specifically scales and conditions 4-20 mA input signals such as compressor stall detection and fuel flow pressure signals. Technical specifications include 16 I/O points, 24V operating voltage, 50Hz output frequency, 1ms processing speed, 128MB program capacity, 256MB data capacity, 3C product certification, operating temperature range of 0 to 100 degrees Celsius, operating humidity range of 20 to 80%, weight of 1.5kg, and external dimensions of 30*30*40mm.
