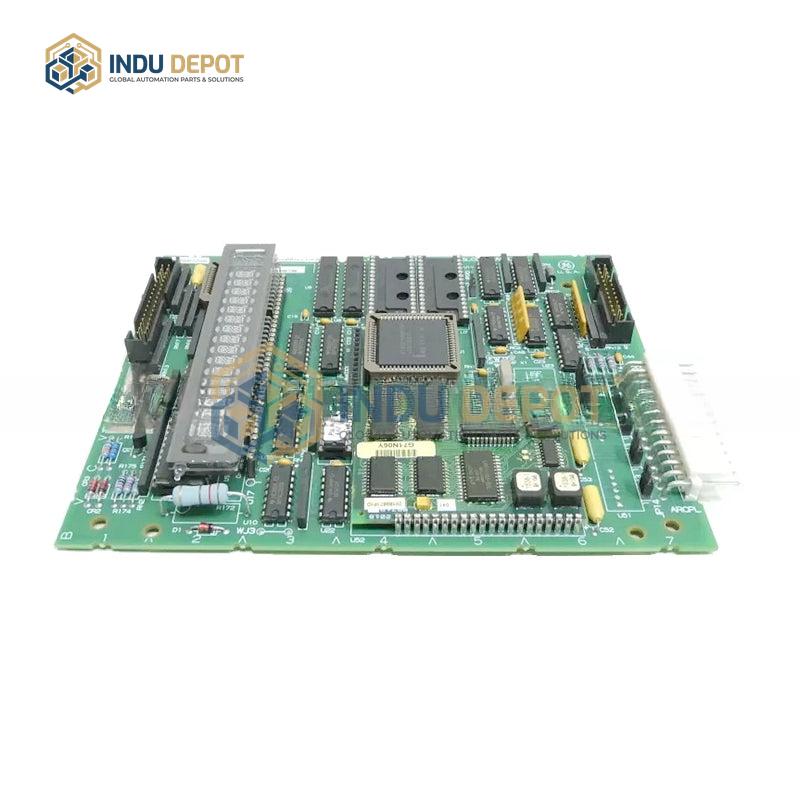

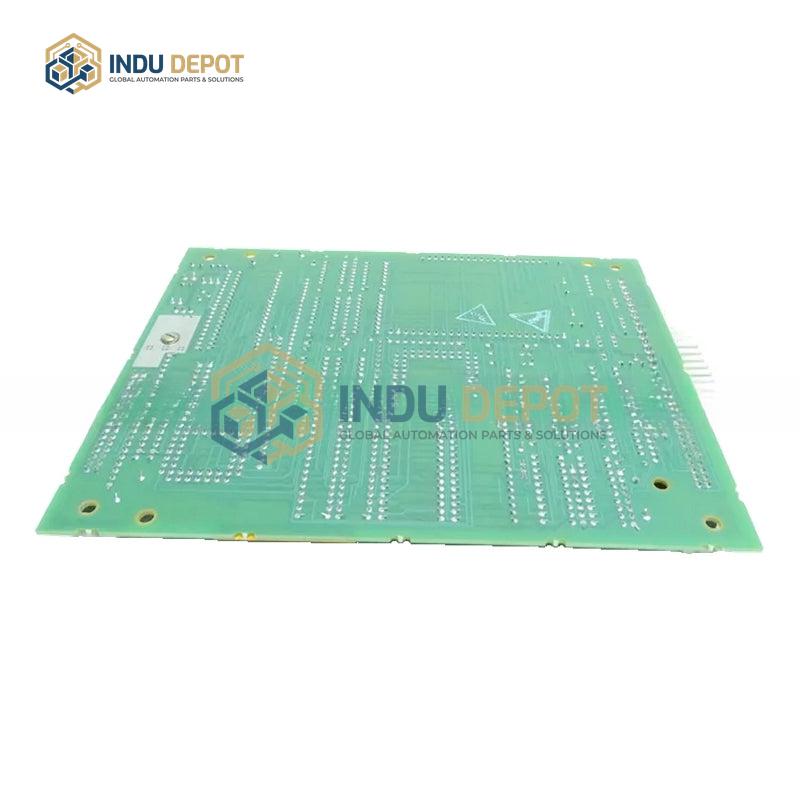

DS200SLCCG3AGH | General Electric LAN Commuication Board

Description

DS200SLCCG3AGH is a General Electric LAN Communication Board belonging to the Mark V Speedtronic series, designed primarily for gas turbine and steam turbine control systems, and compatible with various GE drives and exciters. This board provides core processing and interface functions for incoming local area network (LAN) communications after installation, enabling seamless data exchange between the control system and LAN networks. It also supports integration with a wide range of industrial control components, including distributed control systems (DCS), programmable logic controllers (PLC), turbine supervisory instrumentation (TSI), safety instrumented systems (SIS), panel controllers, human-machine interfaces, drives, servo motors, encoders, resolvers, and power supplies. Key technical specifications include a 220V operating voltage and 50 output frequency, with product certification DI814. As part of the Mark V control system, it also functions as a redundant trip protection component, featuring three sets of emergency trip relays (ETR1 and 2) and at least two sets of main trip relays (PTR1 and 2) to trigger turbine trips if two of three relays detect faults, plus four auxiliary control outputs for solenoid valve operations and overspeed trip testing.
