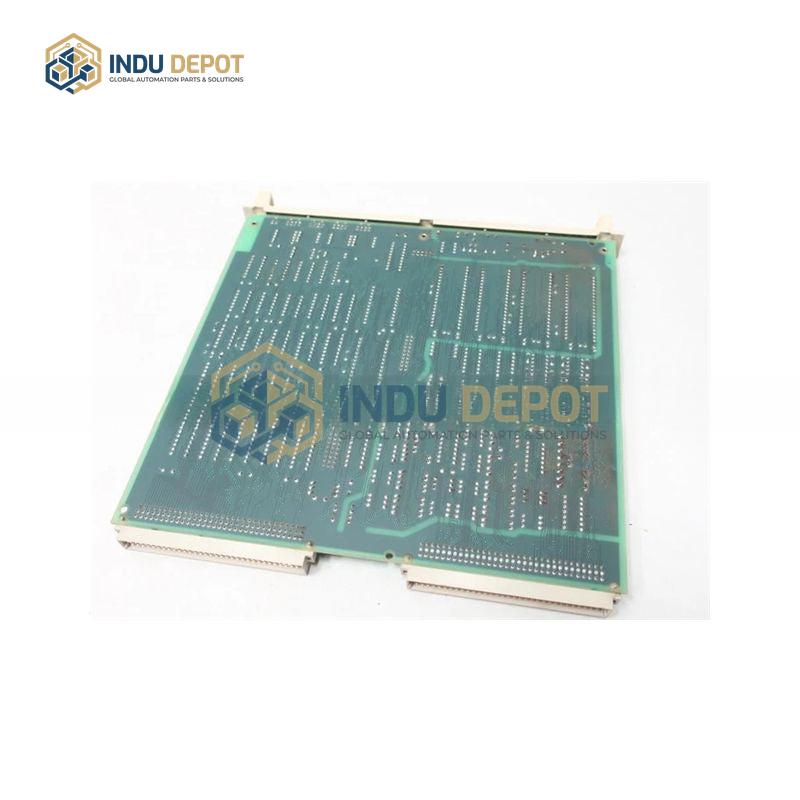

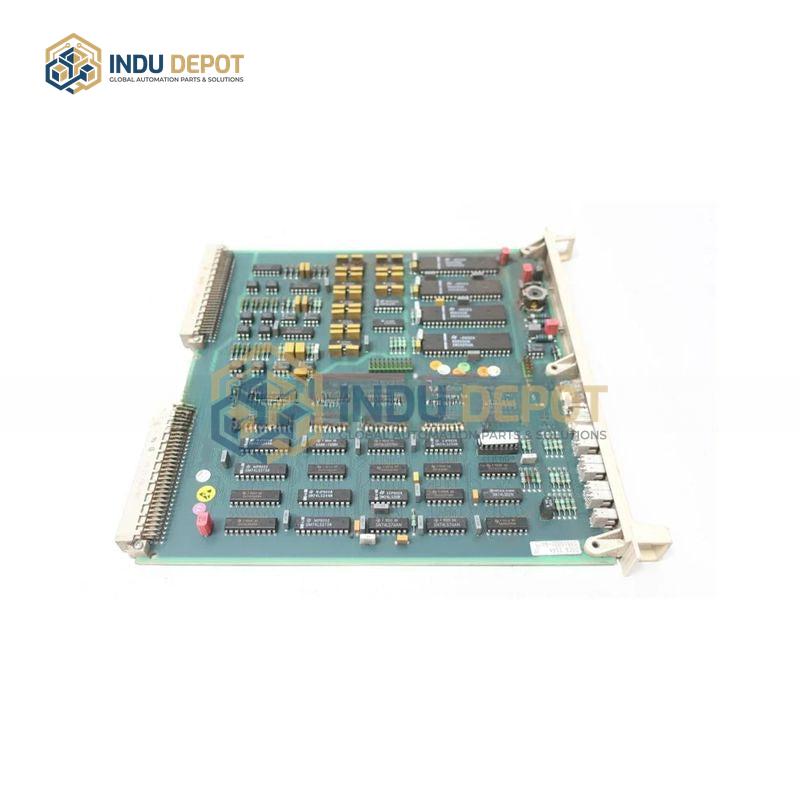

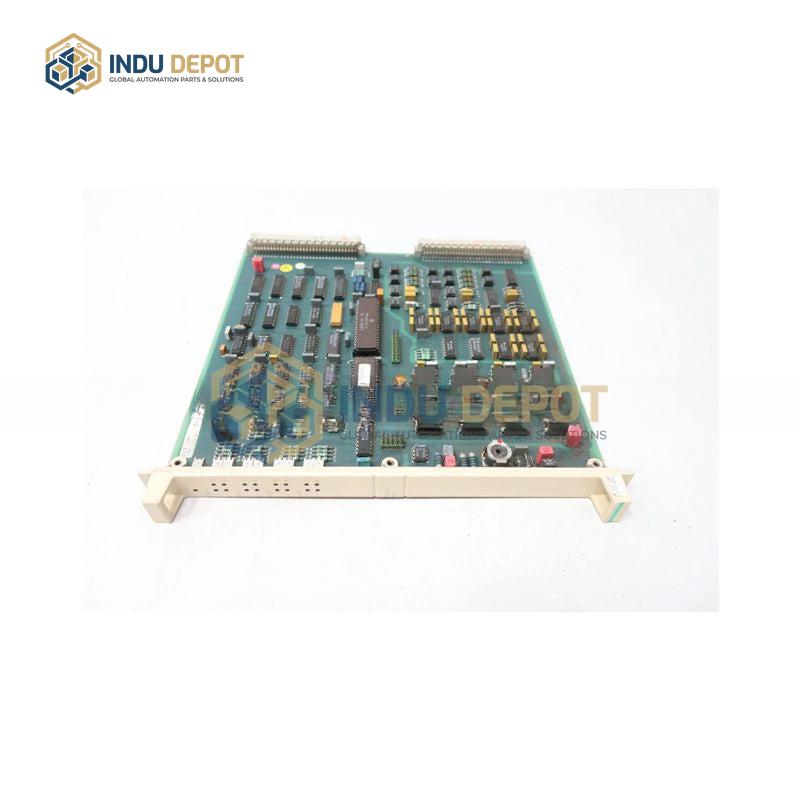

DSCA 114 ABB Communication PCB Circuit Board
Description
DSCA 114 57510001-AA ABB Communication PCB Circuit Board is a modular industrial automation communication and control board, part of the ABB DSCA series. It provides high-efficiency data processing, stable communication, and seamless integration with various control systems, sensors, and actuators.
| Specification | Value |
|---|---|
| Input Voltage | 24V DC |
| Communication Interface | RS485 |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Dimensions | 100mm x 80mm x 30mm |
| Weight | 150g |
| Protection Rating | IP20 |
| Maximum Input Current | 5mA |
| Maximum Output Current | 500mA |
| Response Time | Less than 10ms |
| Accuracy | ±0.1% |
Key Features:
- High-efficiency data processing for complex control logic and data tasks
- Modular design for easy installation, maintenance, and custom system configuration
- Supports multiple industrial communication protocols including Modbus, Profibus, and PROFINET
- Combines 4 analog input, 2 analog output, 8 digital input, and 4 digital output channels
- High reliability with quality components and rigorous testing for long-term stable operation
Applications:
- Industrial process control and production line management
- Machine control and robot navigation systems
- Equipment monitoring and energy management
- Data collection, analysis, and alarm management
Related Models:
- DSCA111
- DSCA112
- DSCA113
