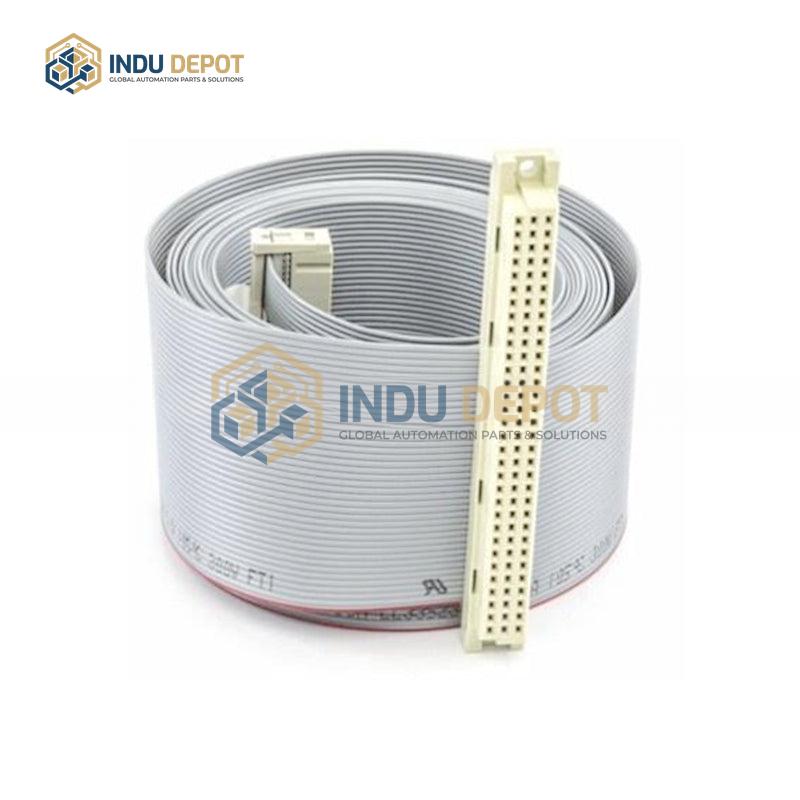

DSTK 150 DSTK150 ABB Cable Assembly Flat Cable
Description
DSTK 150 ABB Flat Cable Assembly is a flexible multi-core flat control cable designed for reliable signal and power transmission in demanding industrial environments. Based on comparable ABB industrial cable specifications and similar flat cable performance data, this product delivers stable operation across wide temperature ranges and complex conditions.
| Specification | Value |
|---|---|
| Conductor Material | Multi-strand ultra-fine stranded oxygen-free bare copper/tinned copper wire |
| Core Configuration | 10 cores x 1.5 square millimeters |
| Rated Voltage | 300/500V (control/signal cores); 450/750V (optional power cores) |
| Test Voltage | 2500V AC for 5 minutes, no breakdown |
| Insulation Resistance | ≥20 MΩ/km at 20 degrees Celsius |
| Operating Temperature Range | Standard: -40 to 90 degrees Celsius; Custom: -60 to 120 degrees Celsius |
| Bending Radius | Fixed installation: 4×D; Mobile installation: 8×D (custom 6×D available) |
| Max Travel Speed | 6 m/s |
| Certifications | CE, ROHS |
Key Features:
- Ordered core arrangement with variable pitch twisting to reduce signal crosstalk, optional high-density tinned copper braid shielding (≥85% coverage) ensures 99.9% signal transmission stability
- Flat integrated design fits easily to equipment guide rails and drag chains, saving space and simplifying installation and maintenance
- UV-resistant and condensation-resistant, suitable for harsh outdoor, dusty, and oily environments
- Customizable with integrated power, communication cores, or built-in galvanized steel wire rope for free suspension over 80 meters, increasing tensile strength by 70%
- Flame-retardant outer sheath with self-extinguishing properties, meeting VDE 0472-804 Class B and IEC 60332-1 standards
Applications:
- Industrial automation: Power and signal connections for automated production lines and intelligent warehousing equipment with frequent start-stop and movement
- Robotics: Joint connection cables for industrial robot arms and collaborative robots
- Mobile control systems in harsh industrial environments requiring reliable signal transmission
