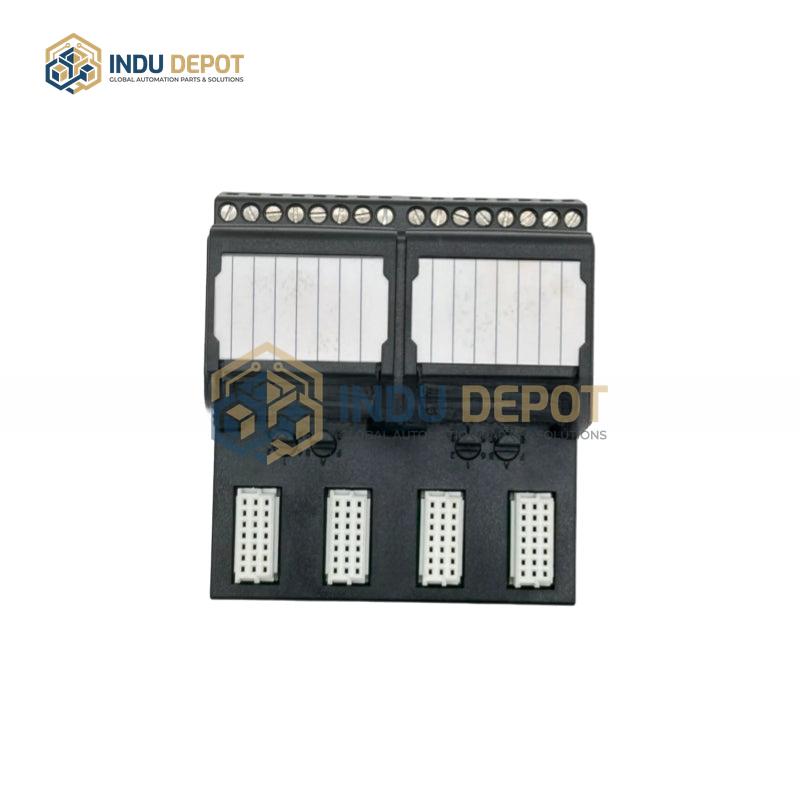

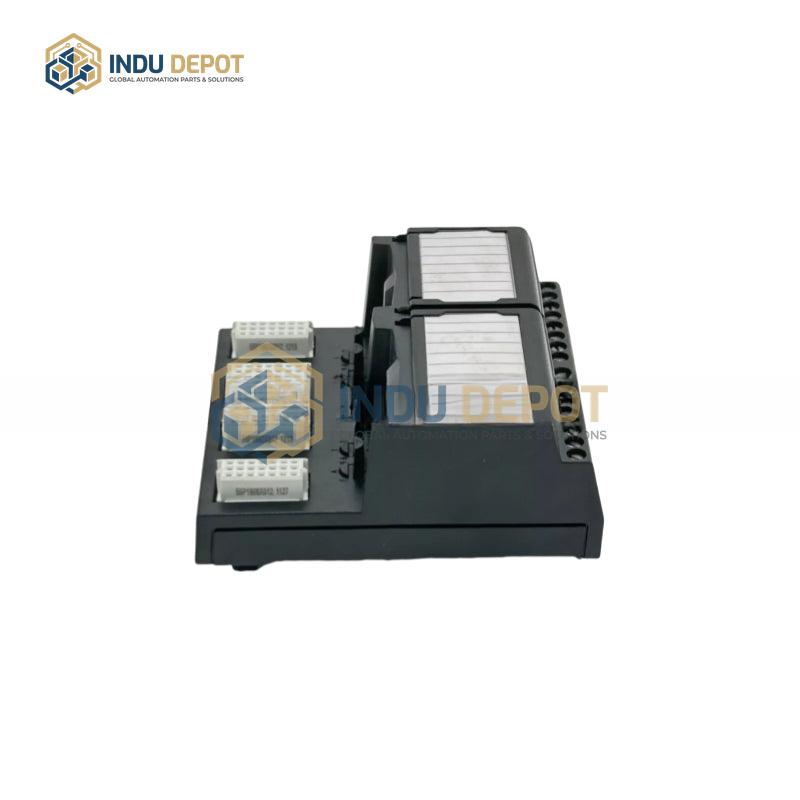

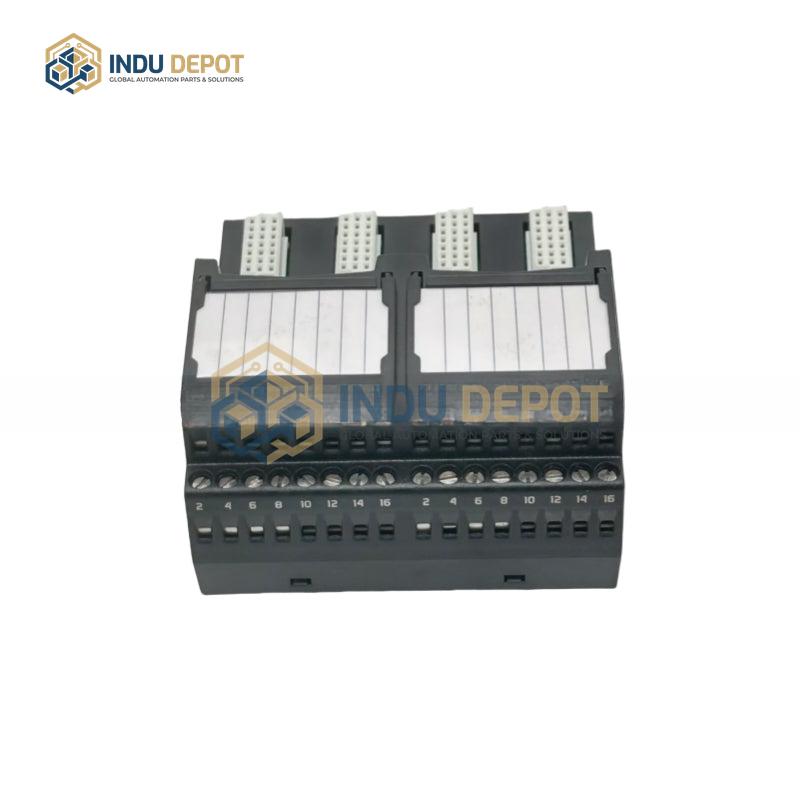

Emerson DeltaV KJ4006X1-BK1 Redundant Interface Terminal Block

Description

The Emerson DeltaV KJ4006X1-BK1 Redundant Interface Terminal Block is a specialized component designed for integration with Emerson DeltaV industrial automation and process control systems. While direct technical details for this exact model are unavailable, it shares core functionality and design attributes with the comparable Emerson KJ4006X1-BD1 Interface Terminal Block. This terminal block is engineered to connect and manage various I/O cards, supporting multiple signal types to streamline system connectivity in demanding industrial environments. Key technical specifications include a 35 VDC, 1 A power supply, and a wide operating temperature range of -40 degrees Celsius to 70 degrees Celsius, with a non-condensing humidity tolerance of 5% to 95%. It meets ISA-S71.04-1985 Class G3 air contamination standards, ensuring reliability in harsh settings. The unit features 32 terminals with spring clip and screw terminal connections, a rugged plastic housing, and an IP65 protection rating for dust and water resistance. It supports rail mounting for easy installation, and withstands shock of 10g sine wave for 11 milliseconds, plus vibration of 1 mm peak-to-peak (2 to 13.2 Hz) and 0.7g (13.2 to 150 Hz). Its compact dimensions measure 4.50 x 2.25 x 2.00 inches, with a weight of 0.5 kg.
