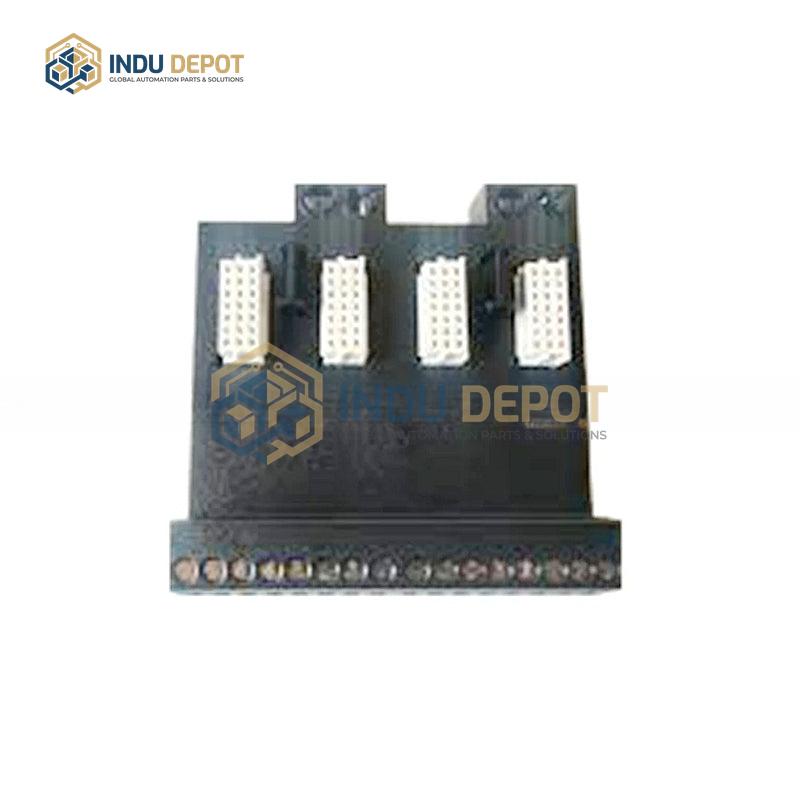

Emerson | KC4011X1-BP1 | 4-Wire AI 16-Channel Terminal Block

Description

The Emerson KC4011X1-BP1 is a 4-Wire AI 16-Channel Terminal Block designed for industrial automation control systems. While direct technical specifications for this model are unavailable, reference can be made to the similar Emerson KC4011X1-BE1 16-Channel Redundant Analog Input Terminal Block for comparable performance and functionality. This type of terminal block is engineered to interface with field analog signals, facilitating signal transmission and conversion to support downstream control and data processing. Key technical parameters for the comparable model include a 30VDC field circuit operating voltage, with 100mA current available per channel. It operates across a wide temperature range of -40 degrees Celsius to 70 degrees Celsius, and offers robust environmental resilience: it can withstand 10g, 11ms half-sine wave shock, and vibration loads of 1mm peak-to-peak at 2 to 13.2Hz and 0.7g at 13.2 to 150Hz. This terminal block is ideal for integrating multiple analog input signals into industrial control systems, providing reliable signal handling for complex automation environments.
