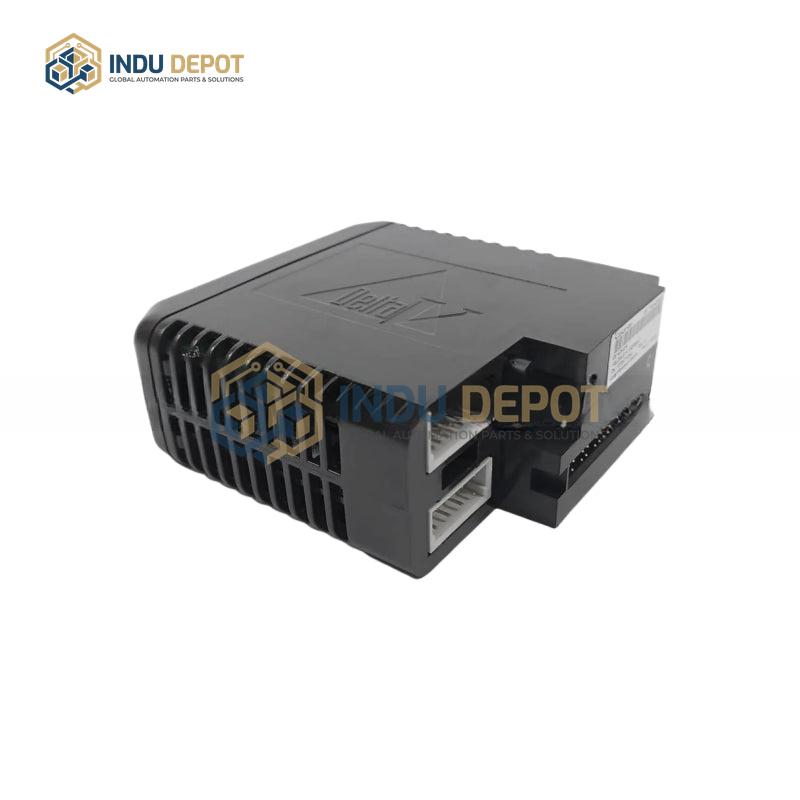

Emerson KJ3242X1-BA1 Fieldbus H1 Card

Description

The Emerson KJ3242X1-BA1 Fieldbus H1 Card is an I/O module designed for distributed control systems (DCS), targeted at industrial automation and process control applications. As a version-specific module, it functions as either an analog input (AI) or analog output (AO) card, supporting standard industrial signals including 4-20mA and 0-10V. It is ideal for use in power plants, chemical facilities, and other process control environments requiring precise monitoring and control of industrial processes.

Key technical specifications include 8 or 16 channels (with optional redundant configuration), ±0.1% full scale accuracy with 16-bit resolution, and channel-to-channel or group-to-group isolation for signal integrity. It communicates via the OVATION DCS bus (redundant MBII network) and operates within a temperature range of 0 degrees Celsius to 60 degrees Celsius. Hardware features include screw terminals or pluggable terminal blocks (such as Molex connectors), plus a green RUN LED indicator to confirm normal card operation. Built with advanced microprocessor technology, it offers high reliability, fast signal response, and system stability, with intelligent capabilities like self-diagnosis to support efficient industrial automation operations.
