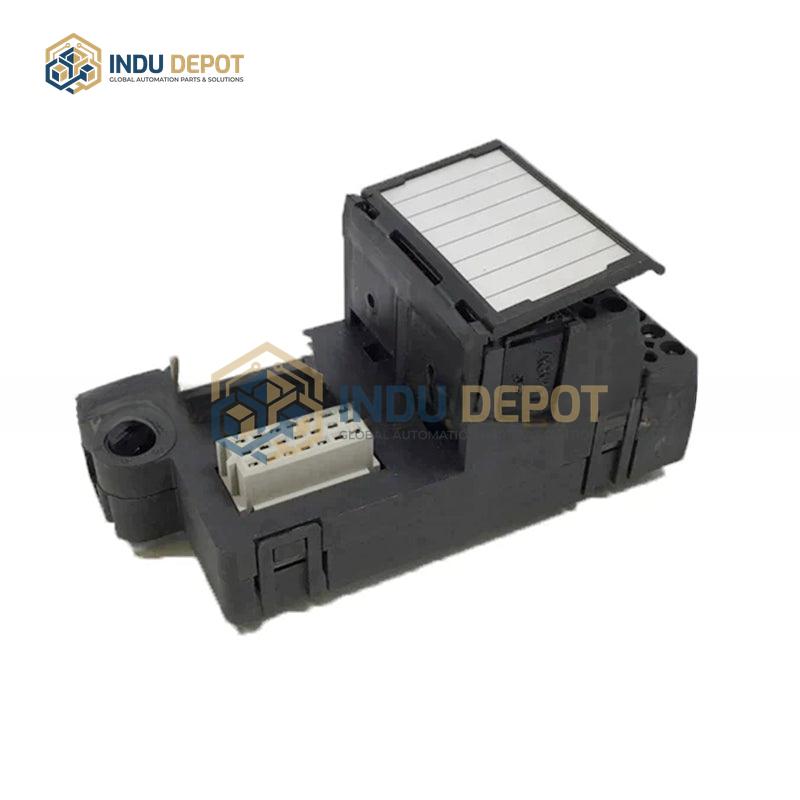

Emerson | KJ4001X1-CE1 Mass Terminal Block 16 Pin

Description

KJ4001X1-CE1 is a 16-pin mass terminal block from Emerson’s DeltaV product series, designed as an integrated component for DeltaV automation systems. Its core functions include reliable signal transmission and secure electrical connection between system components, supporting the seamless interaction of devices within the DeltaV ecosystem. This terminal block is compatible with select DeltaV hardware, including the DELTAV MD20-16 SD Plus controller and MD4-2TX/SFP-ES discrete output card, serving as a critical interface for building structured control system circuits. While specific technical parameters are not explicitly defined, its electrical specifications are calibrated to match DeltaV system standards, ensuring stable, consistent performance in industrial automation environments. The 16-pin design is engineered to accommodate a defined volume of signal channels, with pin assignments aligned to DeltaV signal protocols to support transmission of both analog and digital signals. As part of the broader DeltaV terminal block lineup, it complements related components like 10-pin and 24-pin mass terminal blocks, thermocouple terminal blocks, and RTD terminal blocks to meet diverse system connectivity needs.
