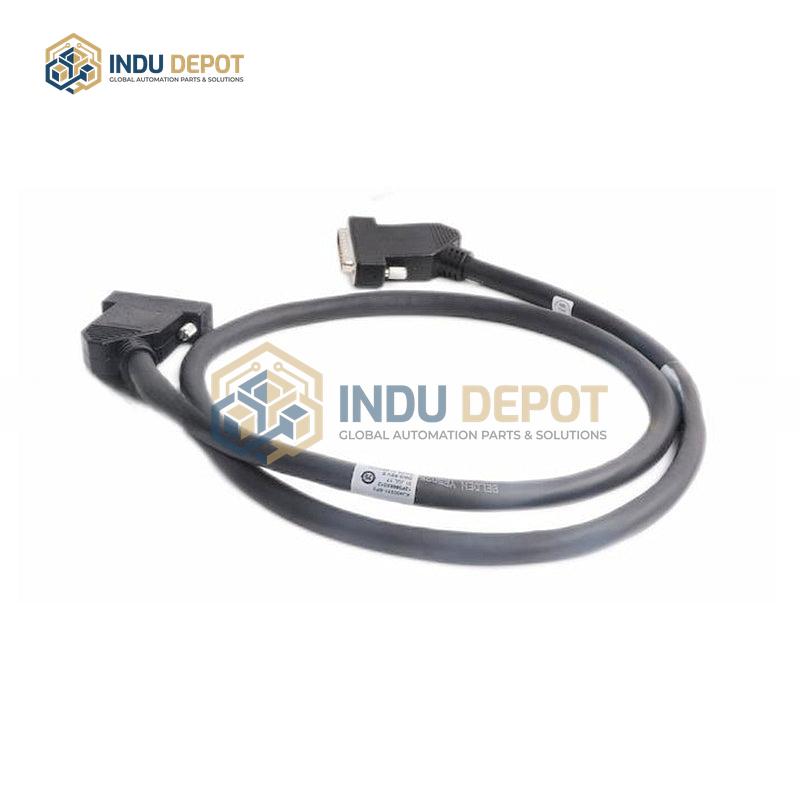

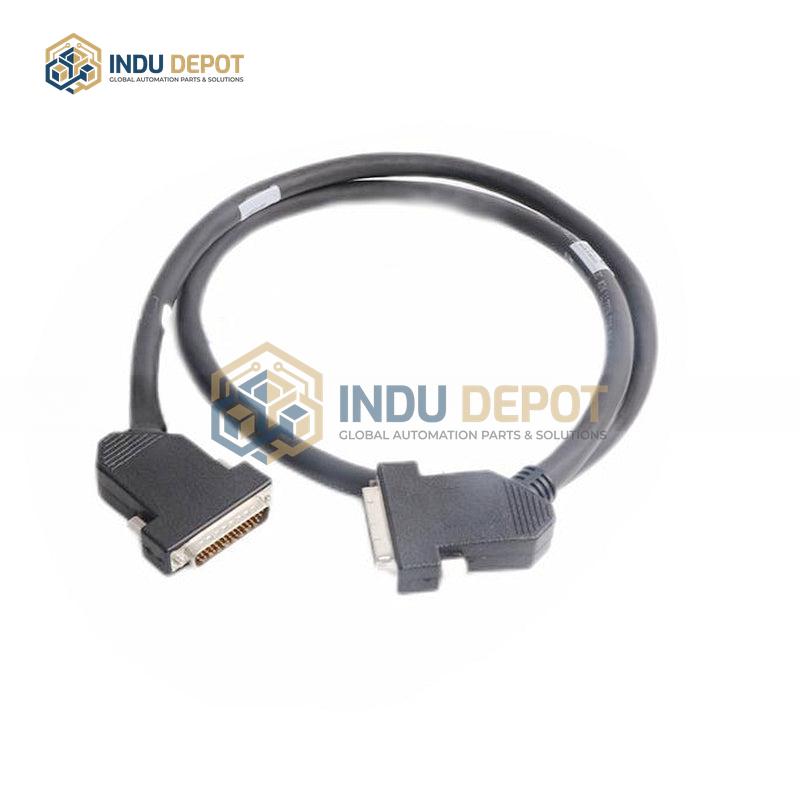

Emerson KJ4002X1-BF2 Extender Cable for Horizontal Carriers

Description

The Emerson KJ4002X1-BF2 Extender Cable for Horizontal Carriers is an industrial control component designed for use with Emerson automation systems. It is compatible with the EMERSON DeltaV controller and VE4002S1T2B4 I/O card, and features a secondary specification code of 330180-50-00. Key physical specifications include a fixed length of 8 meters, with an insulated wire diameter of 1mm ±0.03mm and an overall cable outer diameter of 6.10mm ±0.4mm. Constructed with tinned copper stranded conductors, the cable uses a semi-rigid PVC outer sheath in gray, ensuring durability in industrial environments. Electrical performance parameters include a maximum current rating of 0.6A per path at 70 degrees Celsius, a cable resistance of ≤145 ohms per km at 20 degrees Celsius, and an insulation resistance of ≥20 M-ohms per km at 20 degrees Celsius. Mechanical specifications cover a minimum bending radius of 52mm for fixed installation and 98mm for mobile installation, with a dynamic load capacity of up to 5000 bending cycles. The cable meets IEC 60332-1-2 and VDE 0842 Part 332-1-2 flame retardant standards, making it suitable for heavy-duty industrial control applications.
