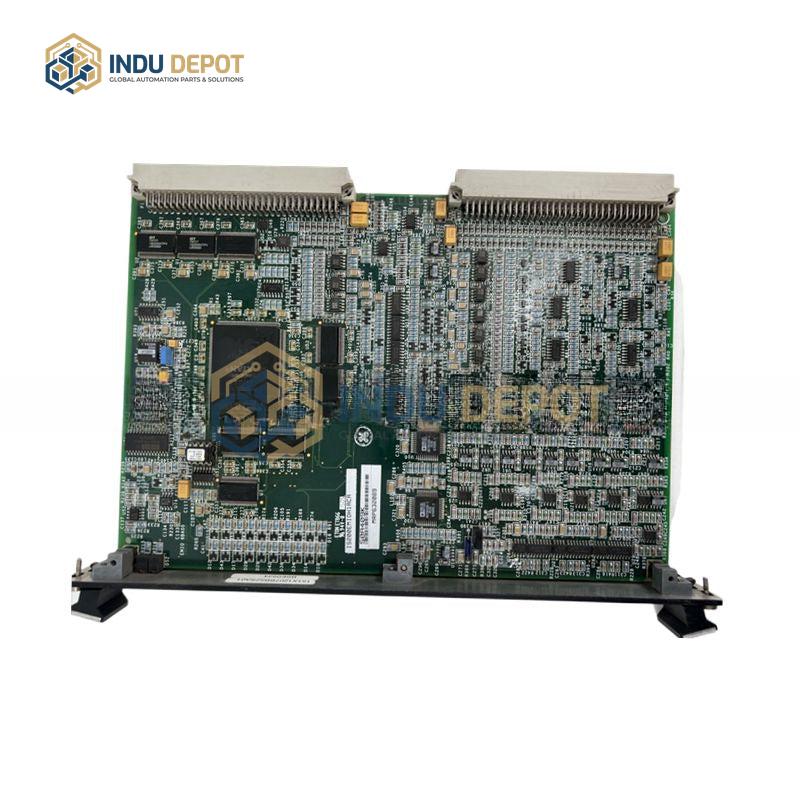

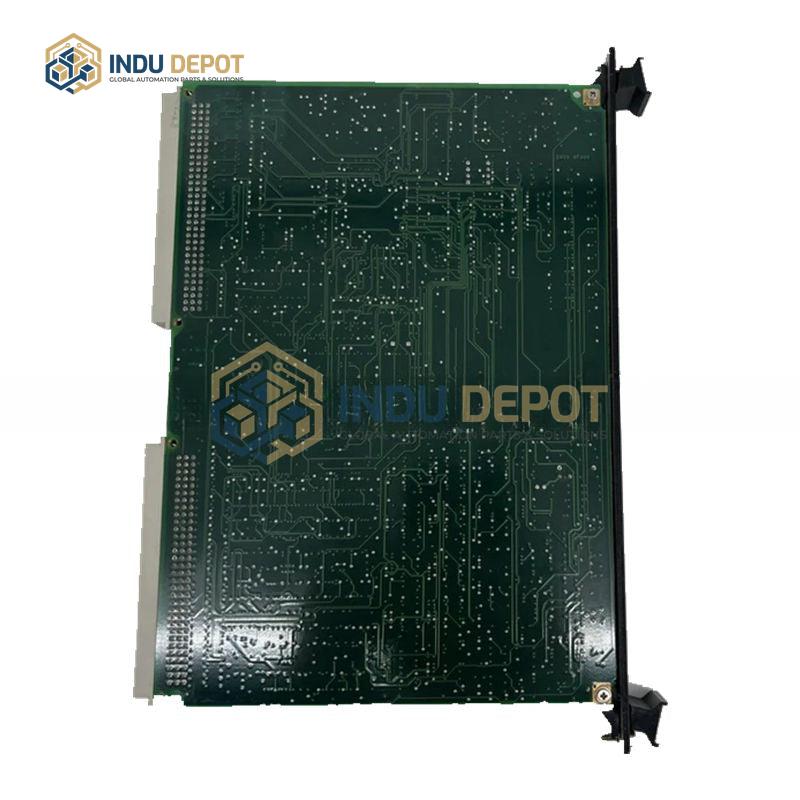

Exciter De-Excitation Board | GE IS200EDEXG1BAA for High-Speed Shutdown
Description
GE IS200EDEXG1B is a bridge and protection board that is part of GE’s Ex2100 series excitation control system, designed to initiate the exciter de-excitation process when other components of the excitation controller fail.
| Specification | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | Ex2100 |
| Product Type | Bridge and Protection Board |
| Dimensions | 7.87 inches (200 mm) high x 19.05 inches (484 mm) wide x 2.17 inches (55 mm) deep |
| Weight | 2.76 pounds (1.25 kg) |
| Material | Aluminum |
| Operating Temperature | 0 to 55 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Humidity | 5% to 95% non-condensing |
Key Features:
- High reliability for continuous operation in power generation environments
- Easy maintenance for quick troubleshooting and component replacement
- Initiates critical de-excitation process to protect generator during controller failures
- Supports excitation protection, data collection, monitoring, and alarm functions
Applications:
- Coal-fired power plants
- Gas-fired power plants
- Nuclear power plants
- Renewable energy power plants
Related Models:
- GE IS200EPDMG1BAA (Exciter Power Distribution Board)
- GE IS200AEADH4ADA (Exciter Auxiliary Interface Board)
- GE IS200AEPAH1AHD (Exciter Power Amplifier Board)
- GE IS200TRPGH1BDE (Terminal Board Module)
