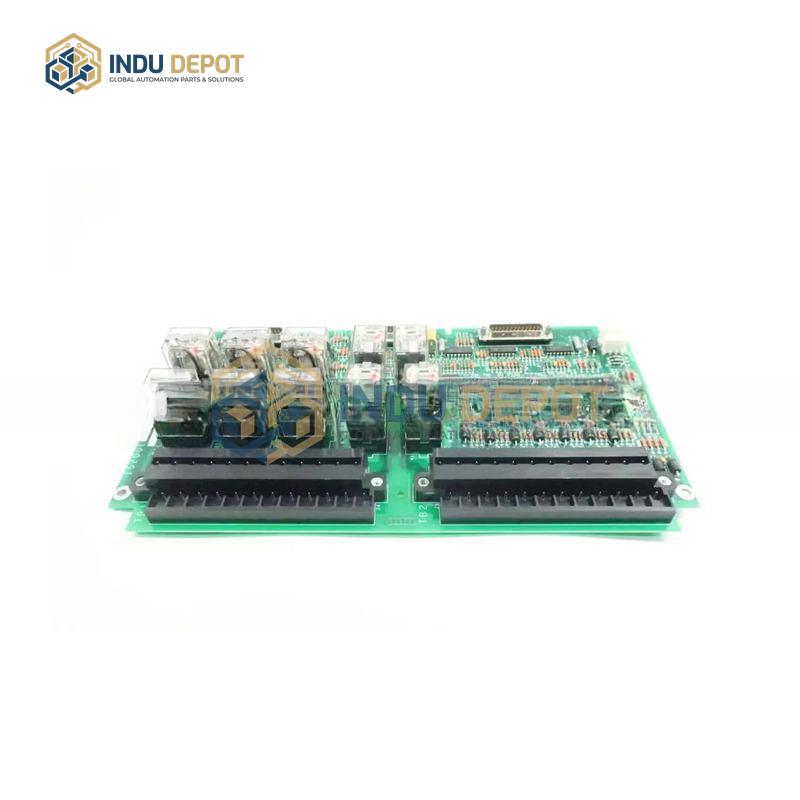

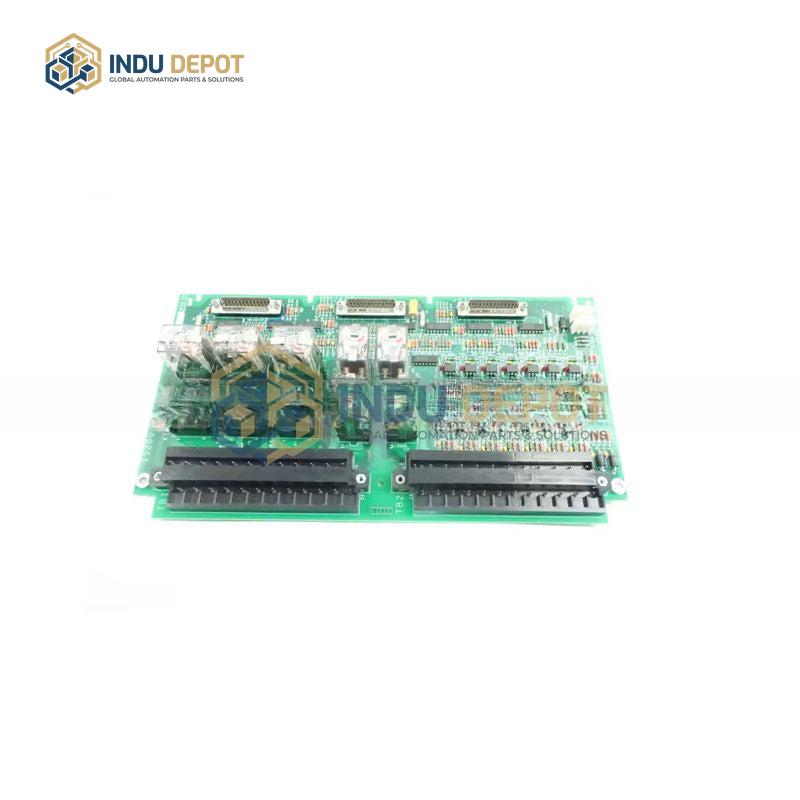

Exciter Terminal Board GE IS200ECTBG1ACB for Generator Control Panels

Description

The GE IS200ECTBG1ACB Exciter Contact Terminal Board is a high-reliability interface module designed for use in GE’s EX2100 excitation systems. It serves as a critical link between the control system and external field devices, managing both input signals and output commands related to excitation and generator protection. This board supports redundant control configurations, receiving power from both M1 and M2 controllers to ensure uninterrupted operation. It features six monitored auxiliary inputs and six output channels, including two trip outputs for lockout functions and four general-purpose Form-C outputs. These outputs are supervised by the board to ensure safe and deterministic operation. Moreover, the ECTBG1ACB is engineered for harsh industrial environments, with an operating temperature range of -30°C to +65°C. Its modular design allows for easy integration and replacement within EX2100 racks, making it ideal for both new installations and system upgrades.
