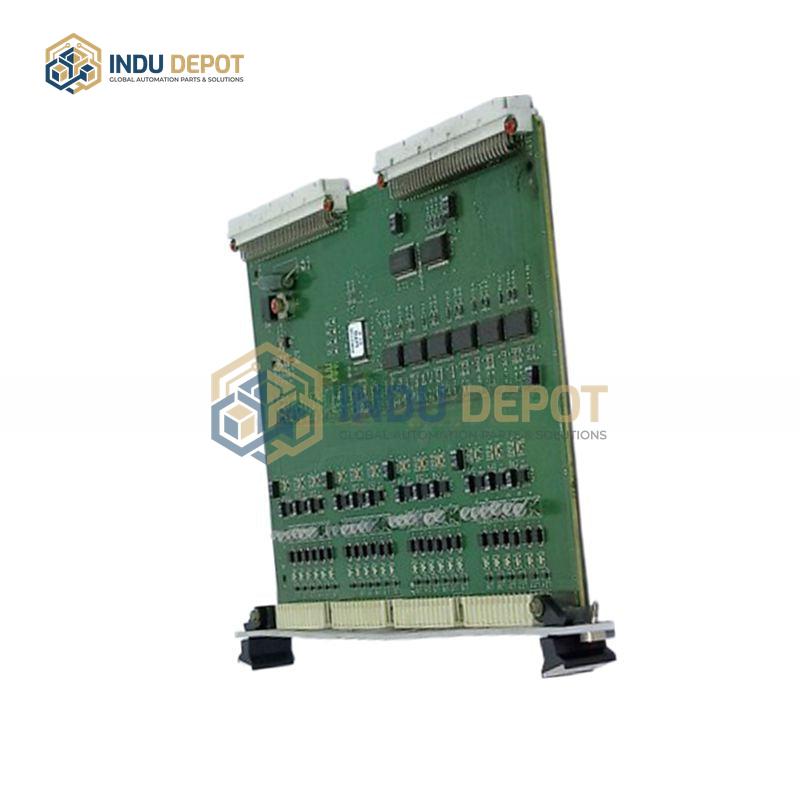

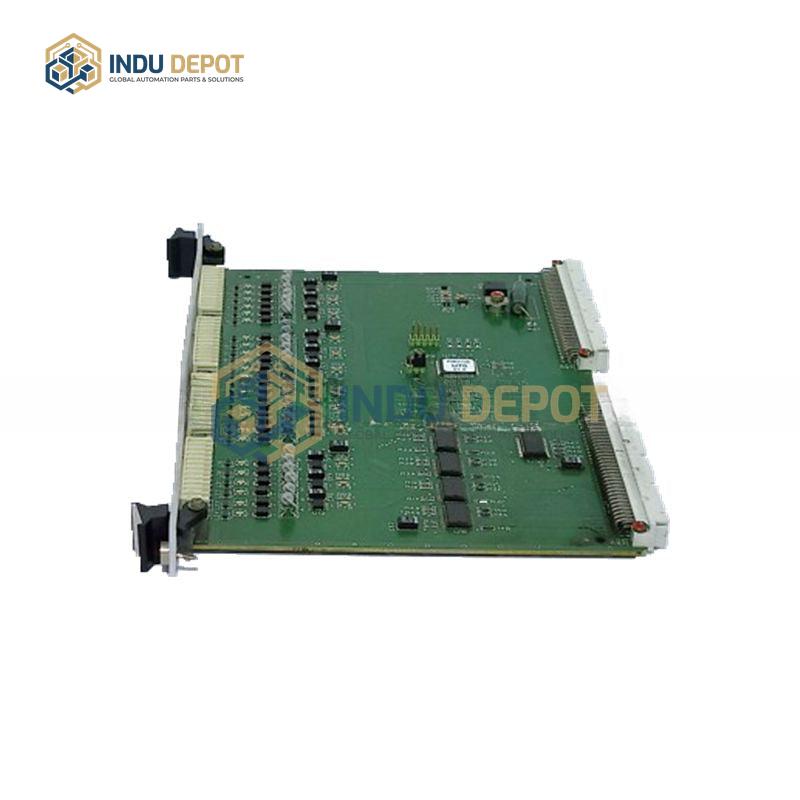

F60 DI 32 01 HIMA Digital Input Module for Safety Systems

Description

The F60 DI 32 01 is a digital input module designed for safety systems, part of the HIMA HIMatrix series. As a 32-channel independent digital input module, it connects a wide range of field devices including push buttons, limit switches, interlocks, and various sensors to safety controllers. It features a broad input voltage range of 12 to 30 VDC, compatible with both AC and DC sensors, and includes a built-in 24 VDC power supply, eliminating the need for external power sources. The module operates on a 24 VDC power supply with a ±15% tolerance, and delivers a fast typical response time of less than 1 ms for high-speed signal collection. Equipped with advanced diagnostic functions, it provides open/short circuit detection, channel-level self-test, and abnormal alarm capabilities to maintain reliable operation. Certified to SIL3 standards, it meets IEC 61508, EN 62061, and Cat. 4 (EN 954-1) safety requirements, making it suitable for critical applications in process industry, machine automation, and safety-related building automation. It can be inserted into any non-system bus slot of the base for flexible system integration.
