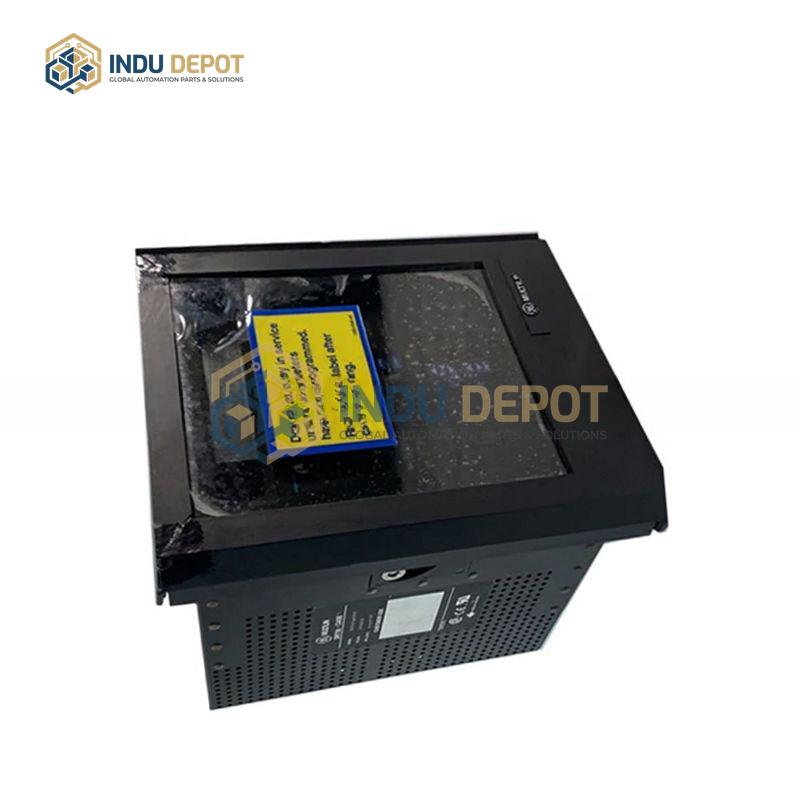

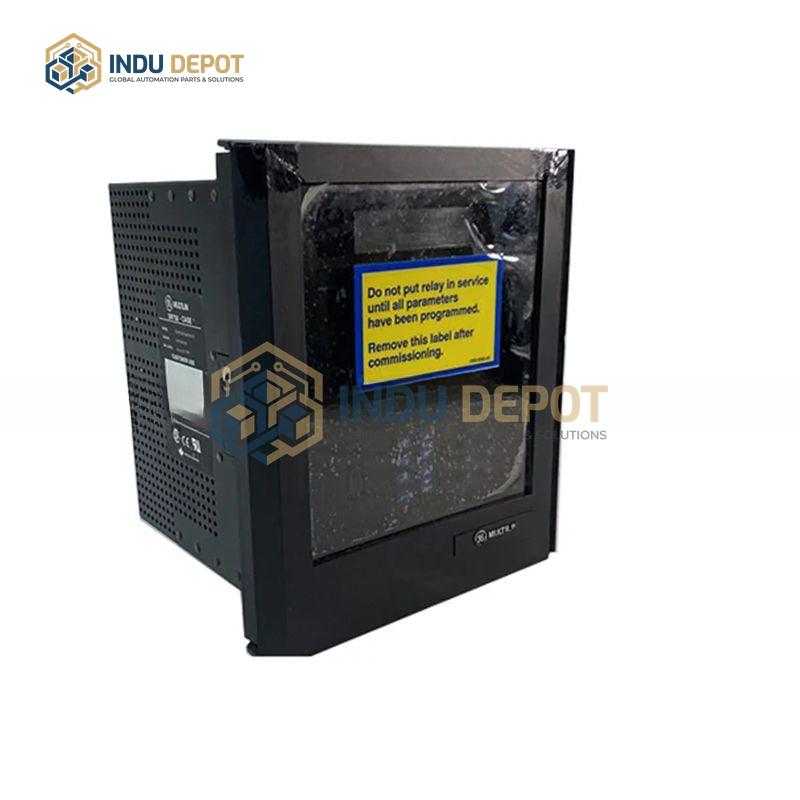

Feeder Management Relay 760-P5-G5-D5 GE Multilin Control Solution
Description
Feeder Management Relay 760-P5-G5-D5 GE Multilin Control Solution is a digital relay designed for distribution feeder management, primary protection, and control. It also provides backup protection for busbars, transformers, and transmission lines, with a simple structure and low lifecycle costs.
| Specification | Value |
|---|---|
| Communication Ports | 2 rear ports; COM1 supports 2-wire RS485 and 4-wire RS422 (not simultaneous); COM2 supports only 2-wire RS485 |
| Supported Protocols | DNP, Modbus (subset of AEG Modicon Modbus) |
| Optional Communication | 10MB Ethernet port for system integration |
| Protection Elements | 2 phase time overcurrent (TOC) elements with level detectors per phase |
Key Features:
- Easy to use, supported by industry-leading software tool suites
- Accurate built-in metering eliminates need for auxiliary metering devices
- I/O monitoring improves auxiliary equipment uptime
- IRIG-B time synchronization, event reporting, waveform capture, and data logger reduce troubleshooting and maintenance costs
- Drawer-style structure minimizes replacement time
- Built-in simulation simplifies testing
- Flash memory enables field upgrades; optional conformal coating extends service life in corrosive or humid environments
- Compliant with international standards for global use
Applications:
- Primary protection and control for distribution feeders in solidly grounded, high-impedance grounded, or resonant (Peterson coil) grounded systems
- Busbar blocking/interlocking schemes
- High-speed fault detection to mitigate arc flash
- Load shedding schemes including bus transfer and voltage/frequency-based load shedding
- Backup protection for transmission lines, feeders, and transformers
- Distributed generation (DG) interconnection protection
