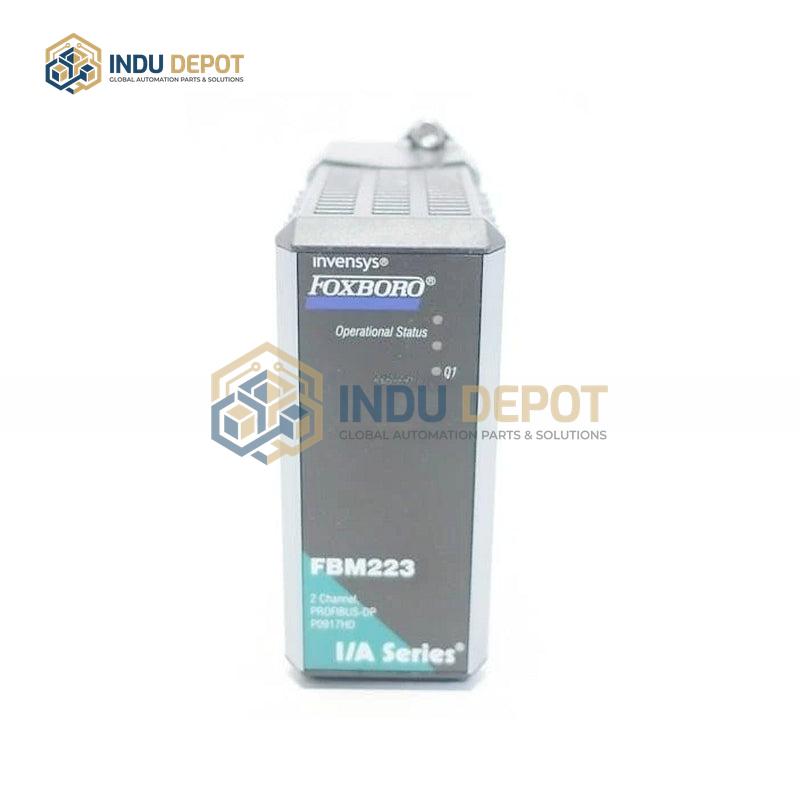

Foxboro FBM223 P0917HD PROFIBUS-DP Communication Interface Module

Description

The Foxboro FBM223 P0917HD PROFIBUS-DP Communication Interface Module is a high-performance interface component designed to connect PROFIBUS-DP slave devices to Foxboro I/A series systems, enabling seamless integration of field device data into the I/A series control database. This module supports high-speed, reliable communication, making it suitable for a wide range of industrial automation applications including process control, manufacturing automation, building automation, transportation systems, and environmental monitoring.

Key technical specifications include 2 communication channels, adherence to the PROFIBUS-DP protocol, and selectable data rates of 9.6 kbps, 19.2 kbps, 48 kbps, or 96 kbps, with a maximum communication distance of 1200 meters. It operates on a 24 VDC (±5%) input voltage, with a maximum power consumption of 8.5W per module. The module has an operating temperature range of -60 degrees Celsius to 70 degrees Celsius, a storage temperature range of -40 degrees Celsius to 85 degrees Celsius, dimensions of 96 x 120 x 25 mm, and a weight of 0.2 kg.

Additional critical features include support for redundant configurations to enhance system reliability and stability, and built-in diagnostic functions to simplify maintenance and troubleshooting. It is compatible with various PROFIBUS-DP slave devices such as programmable logic controllers, I/O modules, motor drives, and other field I/O equipment, ensuring broad interoperability in industrial settings.
