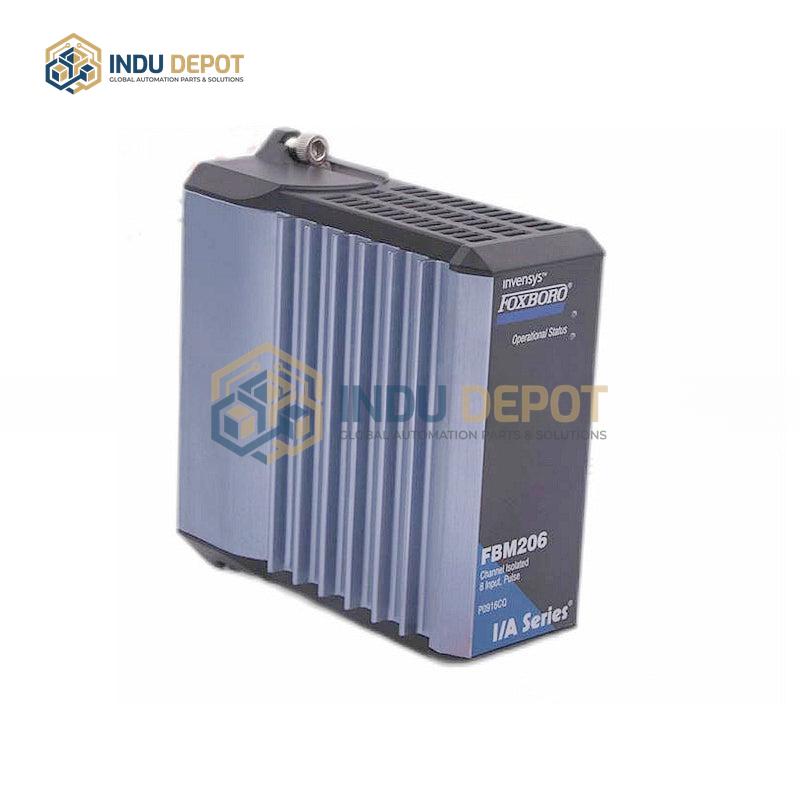

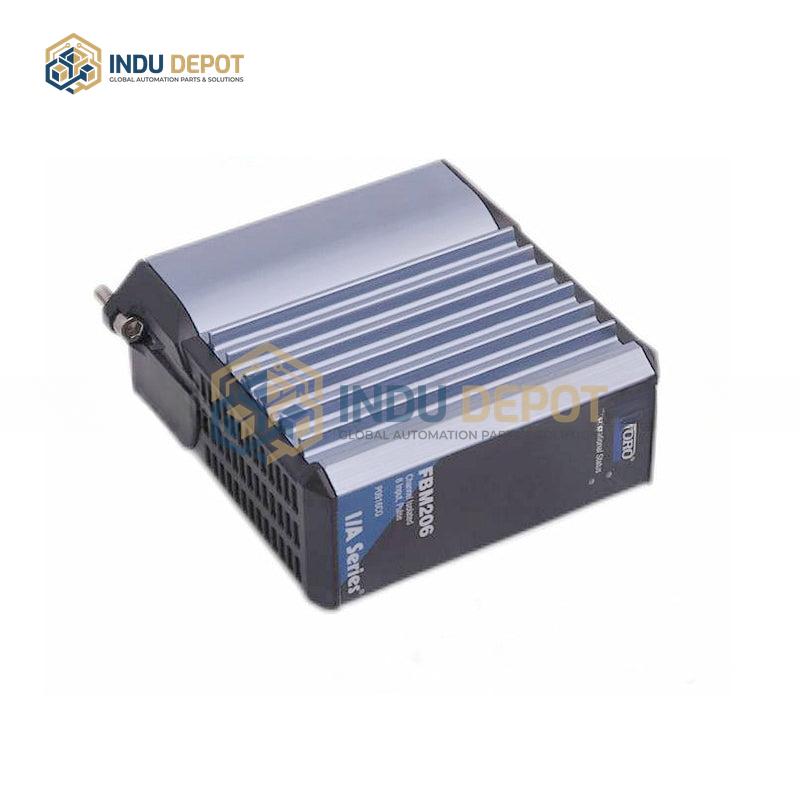

Foxboro Invensys FBM206 P0916CQ Pulse Input Module

Description

The Foxboro Invensys FBM206 P0916CQ Pulse Input Module is an industrial automation component designed for precise signal processing in control systems. As an 8-channel module, it receives pulse signals from sensors and converts them into digital data for system analysis and control, making it ideal for industrial automation applications requiring accurate, real-time pulse monitoring. Key features include high precision, fast response, and support for multiple input types to accommodate diverse sensing needs.

Technical specifications for the FBM206 P0916CQ include: 8 independent channels that accept pulse signals including frequency, pulse width, and orthogonal pulse inputs; a maximum input frequency of 25kHz; 2500V RMS isolation voltage for enhanced signal integrity and equipment protection; a response time of less than 2 milliseconds for rapid data processing; and an operating power supply of 24V DC with a 7W power draw. It operates reliably in temperatures ranging from -40 degrees Celsius to 70 degrees Celsius, with dimensions of 126 x 84 x 29 mm and a weight of 0.25 kg, and has an IP10 protection rating for basic dust resistance. With a full-scale accuracy of 0.1%, high-speed accurate data transmission, and seamless integration with the Foxboro I/A Series of distributed control systems, this module delivers consistent performance for complex industrial control tasks.
