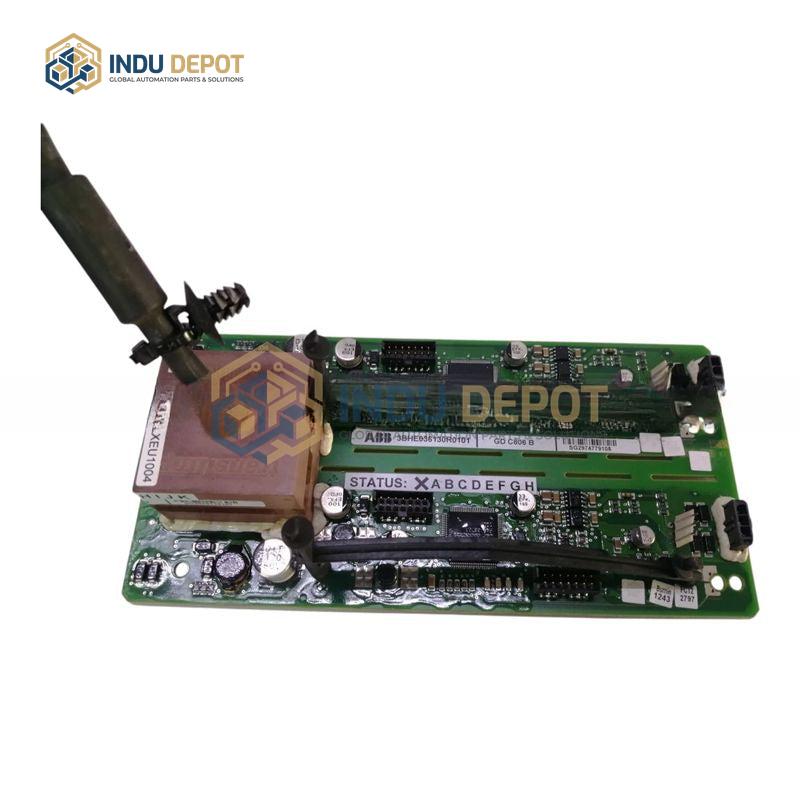

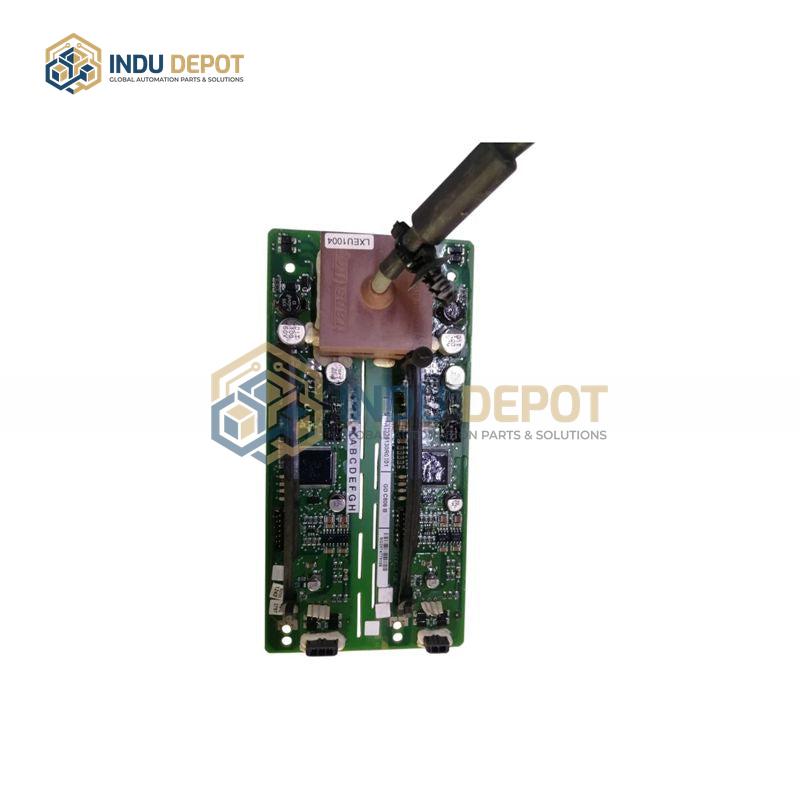

GD C806 B ABB Circuit Board 3BHE036130R0101
Description
GD C806 B ABB Circuit Board 3BHE036130R0101 is a gate drive circuit board from ABB’s GDC806 series, designed for high-voltage power unit control. It is functionally aligned with the closely related 3BHE036290R0005 model, which serves as a reference for technical specifications.
| Specification | Value |
|---|---|
| Compatible Systems | ABB Advant OCS, System 800xA, medium and high voltage power units (IGBT/thyristor) |
| Drive Type | Dual/tri-channel gate drive, supports PWM pulse amplification |
| Isolation Rating | ≥2.5kV AC, compliant with IEC 60664 insulation standard |
| Supply Voltage | ±15V DC (typical), wide input range ±12 to ±18V DC |
| Switching Frequency | ≤10kHz, dependent on connected power device type |
| Physical Dimensions | Approximately 170×82×55mm, weight 0.22kg |
| Mounting Type | Standard DIN rail/backplane mounting |
Key Features:
- Provides precise gate trigger pulses for IGBT/thyristor devices to control on/off timing
- Integrated protection functions including overcurrent/short circuit shutdown, undervoltage lockout (UVLO), and fault feedback
- Electrical isolation between high-voltage power circuits and low-voltage control circuits to suppress interference
- Supports fiber optic/twisted pair trigger input and fault signal output, compatible with ABB power unit communication protocols
Applications:
- Medium and high voltage frequency converters
- Static Var Generators (SVG)
- Industrial rectifier units and arc furnace power supplies
Related Models:
- 3BHE036290R0005 (GDC806 B05)
- 3BHE028761R2004 (GDC806 A2004)
- 3BHE010751R0101
