GE 10448456 DRUCK PTX 661-5417 Pressure Transmitter
Description

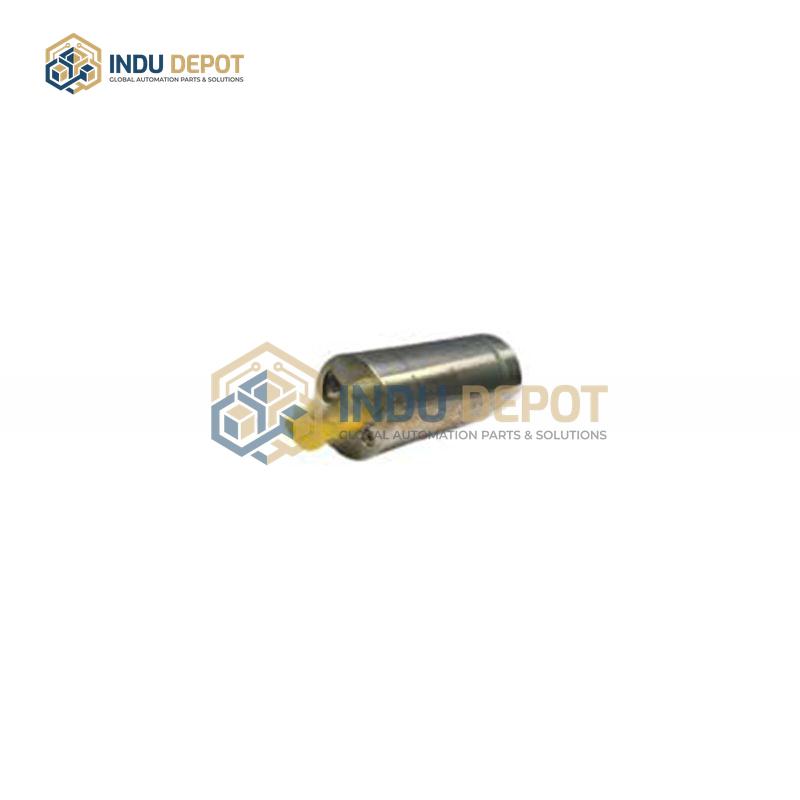

GE 10448456 DRUCK PTX 661-5417 Pressure Transmitter is a hammer-style pressure transmitter designed for harsh onshore and offshore oil drilling environments with high shock and vibration exposure. It uses Druck’s proprietary high-precision silicon sensor and low-volume oil filling technology for reliable static and dynamic mud pressure measurement.
| Specification | Value |
|---|---|
| Electrical Connection | 10-pin LEMO connector EGG-4K-310 |
| Operating Pressure Range (FS) | 0 to 5000, 6000, 10000, 15000 psi sg; custom ranges and absolute versions available on request |
| Overpressure | 1.5x FS up to maximum 20000 psi (1380 bar) |
| Pressure Containment | 2x FS up to maximum 20000 psi (1380 bar) |
| Output Current | 4 to 20 mA (two-wire configuration) |
| Temperature Limits | Process: -40°F to +250°F (-40 degrees Celsius to +120 degrees Celsius); Operating: -40°F to +250°F (-40 degrees Celsius to +120 degrees Celsius); Storage: -65°F to +300°F (-54 degrees Celsius to +150 degrees Celsius) |
| Ingress Protection | IP66, IP4X |
Key Features:
- High accuracy of ±0.1% full scale (FS), 2.5 times more precise than many competing devices
- Fast response time of 2 kHz, enabled by low-volume oil filling technology
- Field-proven 4 to 20 mA electronics with power regulation, reverse polarity, overvoltage, and EMC protection
- Replaceable pressure transmitter plug-in PTX 721-8518 to reduce replacement costs
- Full encapsulation for excellent reliability in high shock and vibration environments
- Comprehensive certifications including ATEX, IECEx, NEPSI, FM (US and Canada), and CE marking
- 1502 and 2202 WECO wing joint configurations, both compatible with NACE sour gas
- Compatible with stainless steel 316L, Inconel X750, and Inconel 625, meeting NACE MR-0175 standards
Applications:
- Onshore and offshore oil drilling operations with high shock and vibration
- Static and dynamic mud pressure measurement
- Harsh industrial environments requiring sour gas compatibility
Related Models:
- Druck PTX 661-1
- Druck PTX 661-*-8547
- Druck PTX 721-8518
