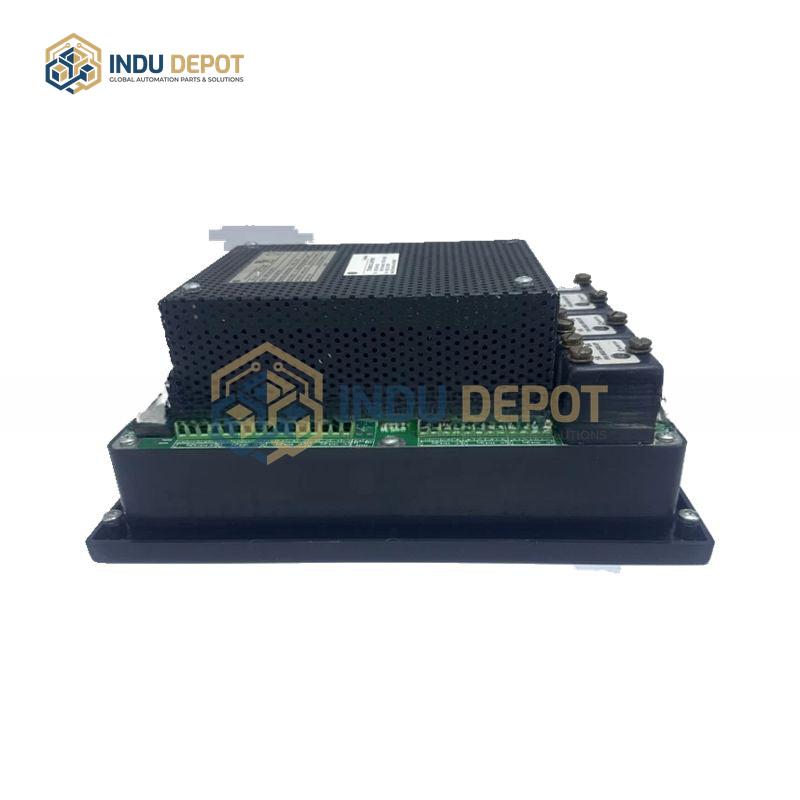

GE 269PLUS-100P-HI Digital Motor Protection System
Description
GE 269PLUS-100P-HI Digital Motor Protection System is a motor management relay designed specifically for industrial control systems, providing comprehensive protection and monitoring for medium-sized AC motors.
| Specification | Value |
|---|---|
| Rated Voltage | 250 VAC, or configurable to 90-300 VDC / 70-265 VAC |
| Rated Current | 10 A, or other configurable ranges |
| Frequency | 50/60 Hz |
| Protection Class | IP20 or higher |
| Dimensions | 203 x 203 x 330 mm |
| Weight | Approximately 2.76 kg |
| Operating Temperature Range | -25 to 60 degrees Celsius |
| Input Ports | 6 RTDs (4 main, 2 additional), ground fault CT, phase CT, communication port, differential relay input, speed switch input, external reset, emergency restart key |
| Output Ports | 4 relays |
Key Features:
- Modular design for easy installation and transportation
- High-precision control with advanced technology for stable and reliable motor operation
- Flexible parameter configuration to adjust protection settings based on user needs
- Communication capability to connect with upper systems like PLC and DCS
- Comprehensive protection functions including overload, short circuit, ground fault, and temperature monitoring via RTD sensors
- Enhanced thermal model with current imbalance and RTD bias for accurate temperature protection
- Built-in simulation function to simplify testing procedures
Applications:
- Medium-sized AC motor protection and monitoring in industrial automation systems
- Metallurgy, mining, oil and gas industries
Related Models:
- GE 269PLUS-W-100P-HI
- GE 269PLUS-D/O-278-100P-HI
- GE 269PLUS-D/O-261-100P-120
