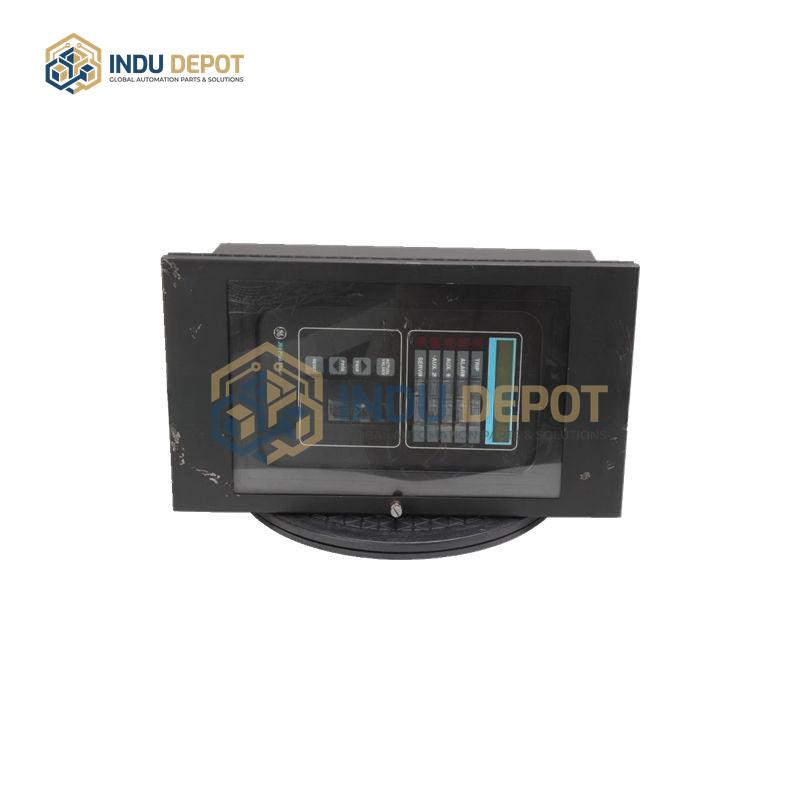

GE 269PLUS-D/O-111-100P-HI Motor Management Relay
Description
GE 269PLUS-D/O-111-100P-HI Motor Management Relay is a member of the GE Multilin 269PLUS series, designed specifically for medium-sized electric motors to provide comprehensive protection, monitoring, and control functions.
| Specification | Value |
|---|---|
| Rated Voltage | 250 VAC, or 90-300 VDC / 70-265 VAC (configurable) |
| Rated Current | 10 A (configurable to other ranges) |
| Operating Frequency | 50/60 Hz |
| Protection Class | IP20 or higher |
| Dimensions | 203 x 203 x 330 mm |
| Weight | Approximately 2.76 kg |
| Operating Temperature Range | -25 to 60 degrees Celsius |
| Output Ports | 4 relays |
Key Features:
- Modular design for easy installation and transportation
- Advanced control technology ensures stable and reliable motor operation
- Flexible protection parameter configuration to match specific motor requirements
- Supports connection to upper-level systems such as PLC and DCS for industrial integration
- Integrates multiple protection functions including overload, short circuit, ground fault, and over-temperature monitoring
- Includes 6 RTD inputs (4 main, 2 additional) for accurate motor winding temperature detection
- Offers programmable overload curves, including FlexCurve for custom protection profiles
Applications:
- Industrial automation systems for medium-sized three-phase AC motors
- Metallurgy, mining, and oil and gas industries
- Machine tools and automated production equipment
- Energy sector facilities including power generation and processing plants
Related Models:
- GE 269PLUS-W-100P-HI
- GE 269PLUS-100P-HI
- GE 269PLUS-D/O-100P-125V
- GE 269PLUS-D/O-241-100P-120
- GE 269PLUS-D/O-261-100P-120
