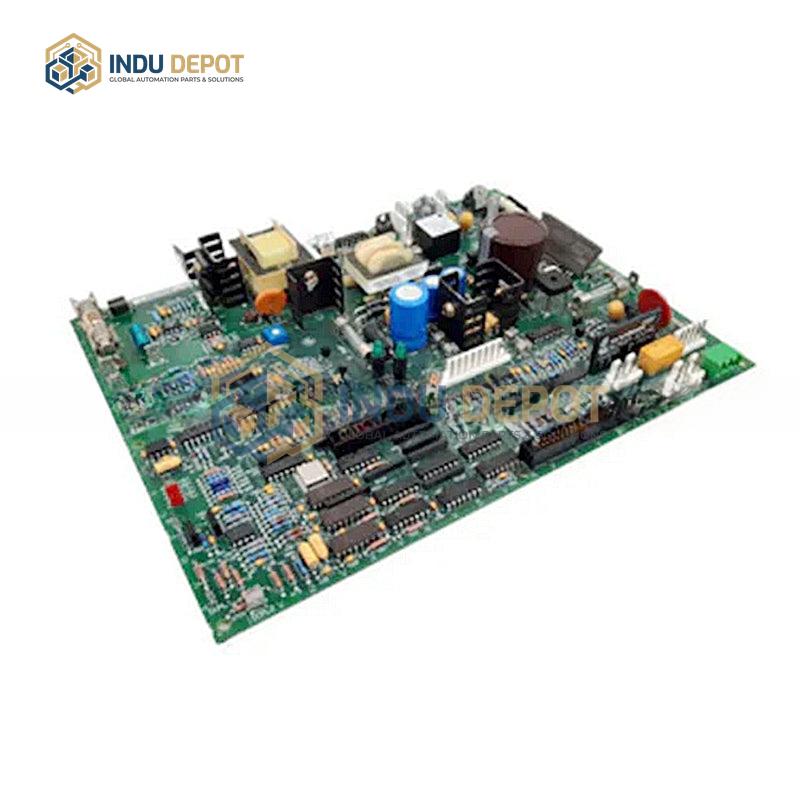

GE Fanuc | DS200FGPAG1AEC | Gate Pulse Amplifier

Description

GE Fanuc DS200FGPAG1AEC Gate Pulse Amplifier is a specialized gate pulse amplifier board designed for industrial control applications. Its core functions include processing and amplifying pulse signals from sensors or other input sources, supplying power to one phase of a thyristor bridge, collecting battery voltage data, and converting alternating current to direct current control voltage. It also integrates gate drive, thyristor status monitoring, and switching power supply capabilities to support reliable operation of connected systems.

Equipped with a fast, robust fiber optic network, the unit features 1 transmission fiber optic port and 14 reception fiber optic ports: 2 of the reception ports are fixed duplex fiber optic networks, while the remaining 12 are fixed simplex fiber optic networks, with support for adding up to 2 repeaters to extend network reach. Key performance features include precise gate signal shaping, amplification of gate pulses to required voltage levels, high reliability and durability, and a compact design for easy installation.

Ideal for use in a range of industrial settings, this amplifier supports applications in power systems, industrial automation, rail transit, wind power generation, aerospace, and industrial drive systems, where it monitors and controls pulse signals to ensure stable, accurate operation of motors, thyristor bridges, and other critical equipment.
