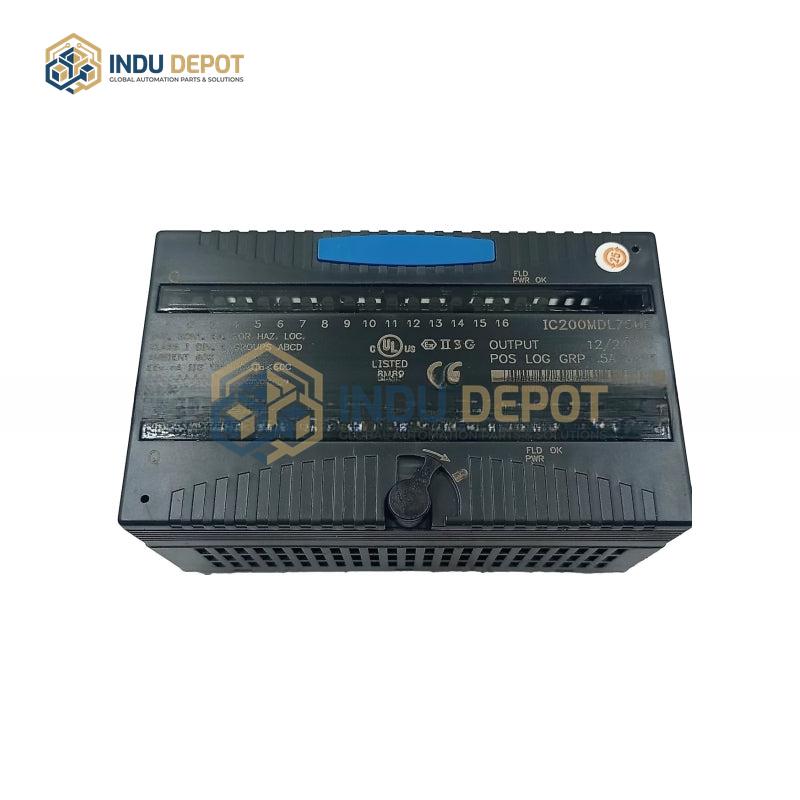

GE FANUC IC200MDL750 VersaMax Output Module

Description

The GE FANUC IC200MDL750 VersaMax Output Module is a high-density discrete output component for industrial automation systems. It features a total of 32 discrete output points, split into two groups of 16 points each, supporting positive logic or sourcing-type configurations to switch positive loads to DC power and supply power to connected devices, with each output operating in either on or off states.

This module is designed to work with IC200CHSxxx series carrier bases and requires an external power supply for positive load switching. It draws up to 90 mA from the 5V backplane power supply, with an operating voltage range of 10.2 to 30 VDC and nominal working voltages of 12 VDC or 24 VDC; note that operation at 12 VDC requires the module to be at least version IC200MDL750B or newer. Each output point has a rated current of 0.5 mA. Ideal for use in industrial automation setups such as production line equipment linkage and smart factory control systems, it provides reliable, precise switching control for DC-powered loads, supporting distributed I/O control requirements in manufacturing and other industrial environments.
