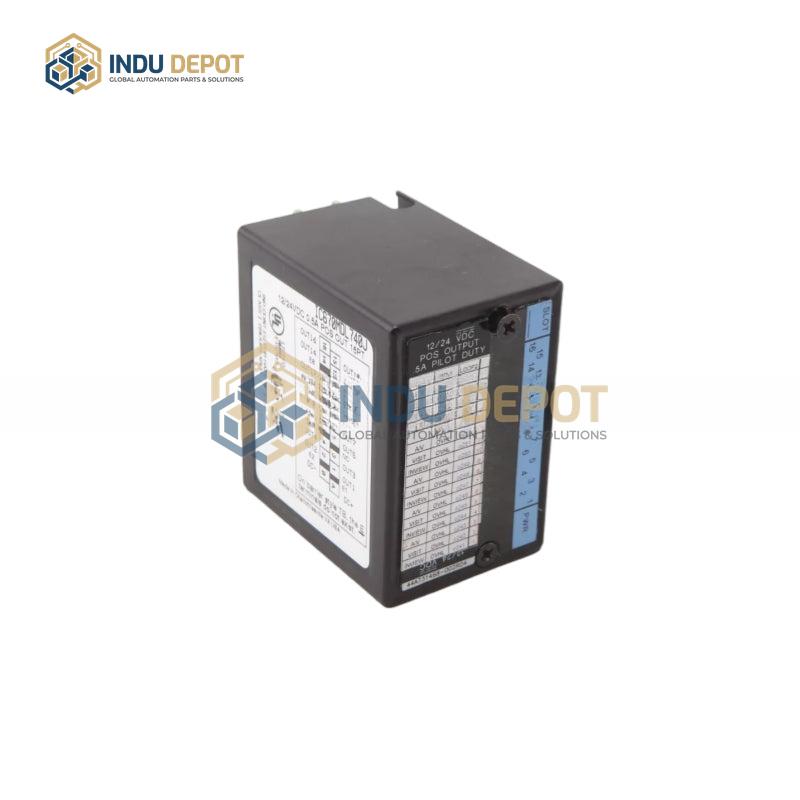

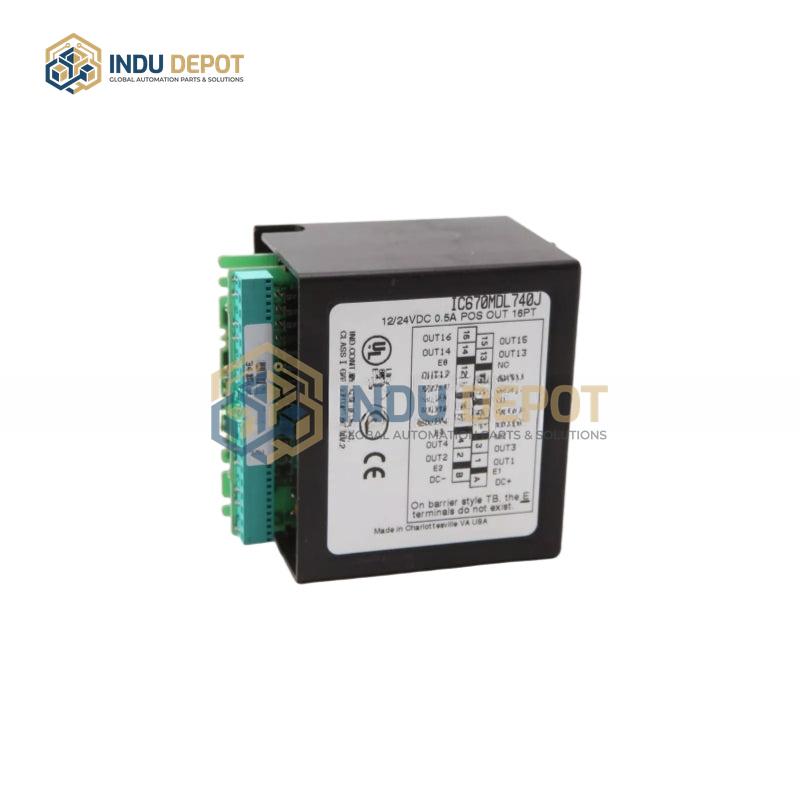

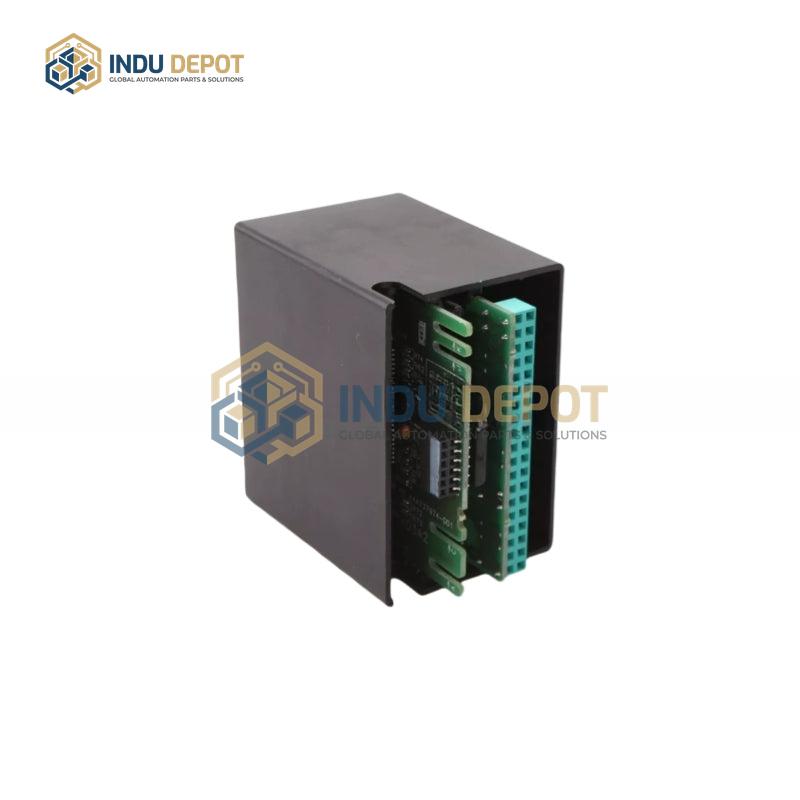

GE FANUC IC670MDL740 Field Control Discrete Output Module

Description

The GE FANUC IC670MDL740 is a Field Control Series discrete output module designed for industrial automation applications. It features 16 positive logic discrete output channels, enabling flexible control of low-current electromechanical and electronic devices. Key electrical specifications include a nominal output voltage of 10 VDC, with a compatible output signal range of 24 VDC to 30 VDC; each channel delivers a 0.5 amp user output current, with a total module output current capacity of 24 amps. When operating at 0 to 5 VDC with a 4 VDC nominal voltage, each channel can supply up to 10.30 amps. The module draws 111 mA from the Bus Interface Unit (BIU) power supply, ensuring efficient power usage. As a universal output module, it mounts to a BIU to provide expanded I/O capabilities, making it ideal for driving devices such as indicator lights, relay coils, and solenoids. It supports DIN rail installation for easy integration into control panels, and operates reliably in industrial environments with a working temperature range of 0 degrees Celsius to 55 degrees Celsius, and relative humidity of 5% to 95% without condensation.
