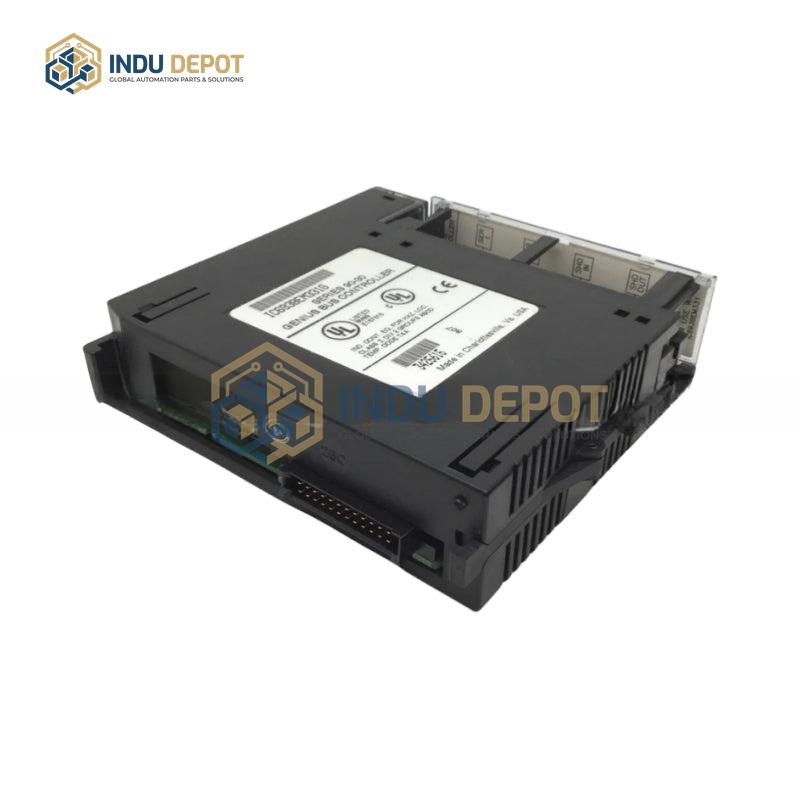

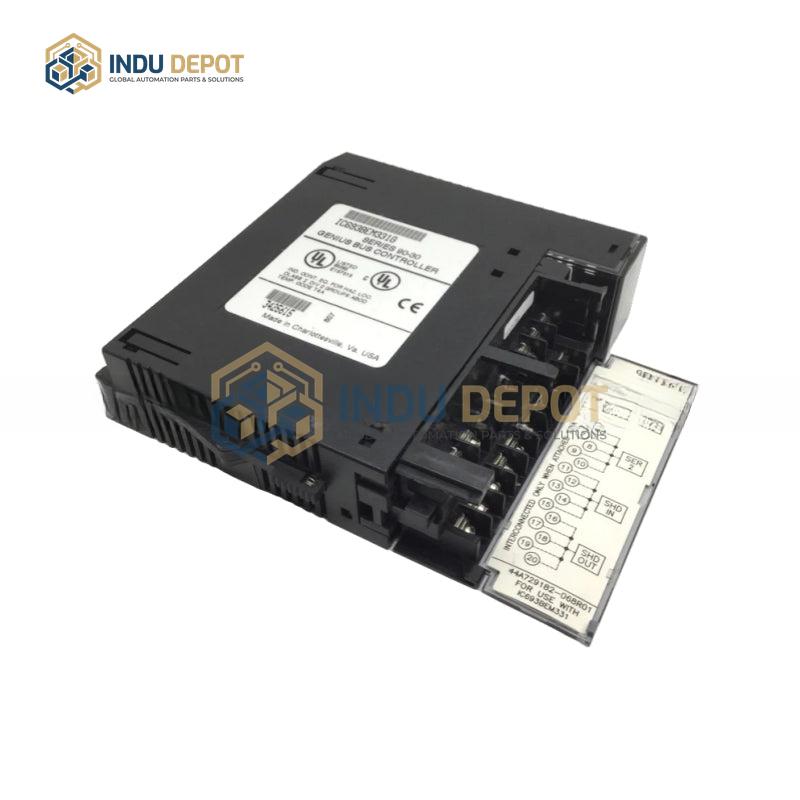

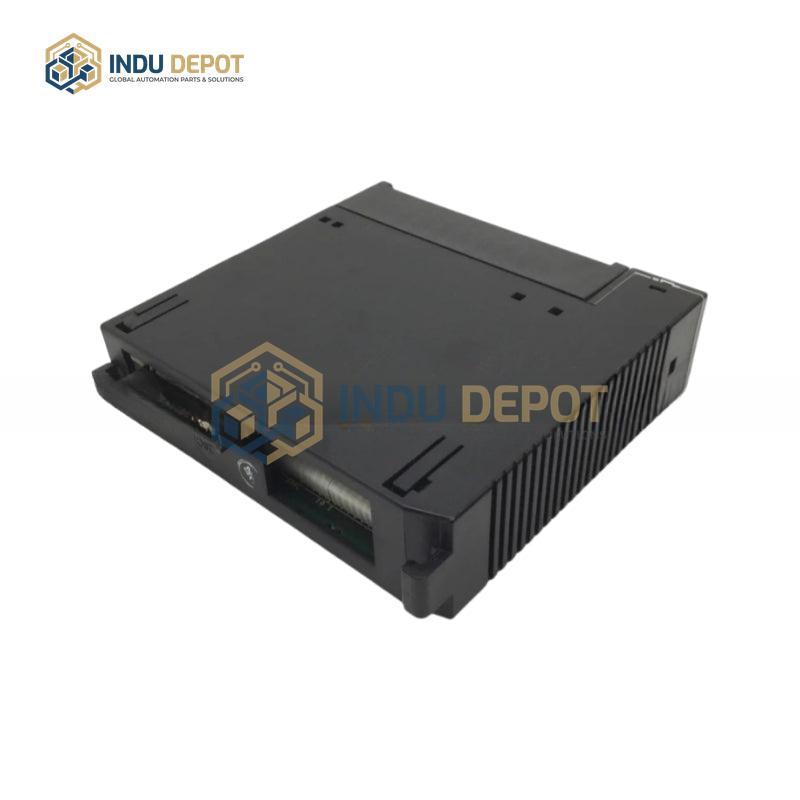

GE FANUC IC693BEM331 Genius Bus Controller

Description

The GE FANUC IC693BEM331 Genius Bus Controller is a core communication module belonging to the 90-30 series PLC product line, designed to serve as a critical interface between 90-30 series PLCs and the Genius I/O bus. As a centralized bus communication hub, it enables reliable data exchange with a wide range of Genius modules (including discrete, analog, and special-purpose field devices) and remote I/O branches, supporting real-time industrial automation control operations. Key functional capabilities include simultaneous connection to up to 31 field devices, transmission of 128 bytes of control data via the Genius bus for low-latency data interaction, and broad multi-device compatibility that extends to 90-70 series I/O racks, field control I/O stations, Genius handheld monitors, and multi-host systems.

Technical specifications for the IC693BEM331 include a 24VDC power supply, dimensions of 110mm x 66.8mm x 50mm, a weight of approximately 230g, an aluminum housing, and terminal-style connections. It supports a maximum data transmission rate of 1.5Mbps over the Genius bus, handling up to 128 bytes of input and output data from field devices. The module requires firmware version 5.0 or higher, is compatible with specific 90-30 series PLC models including IC693CPU311K/321K/331L and above, and features status LEDs for real-time operation and communication status monitoring, with configuration completed via a dedicated handheld monitor.
