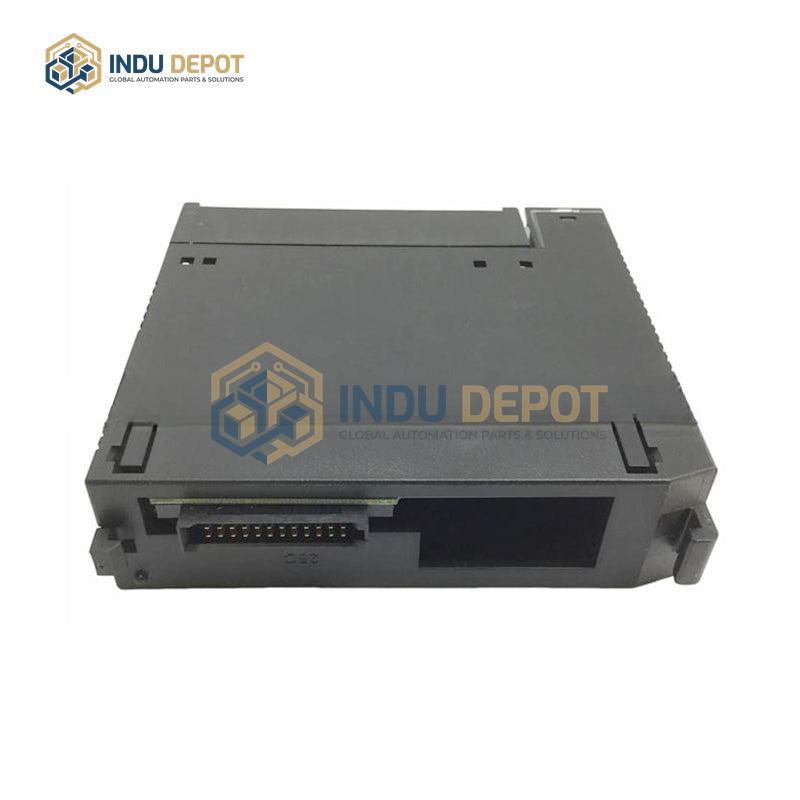

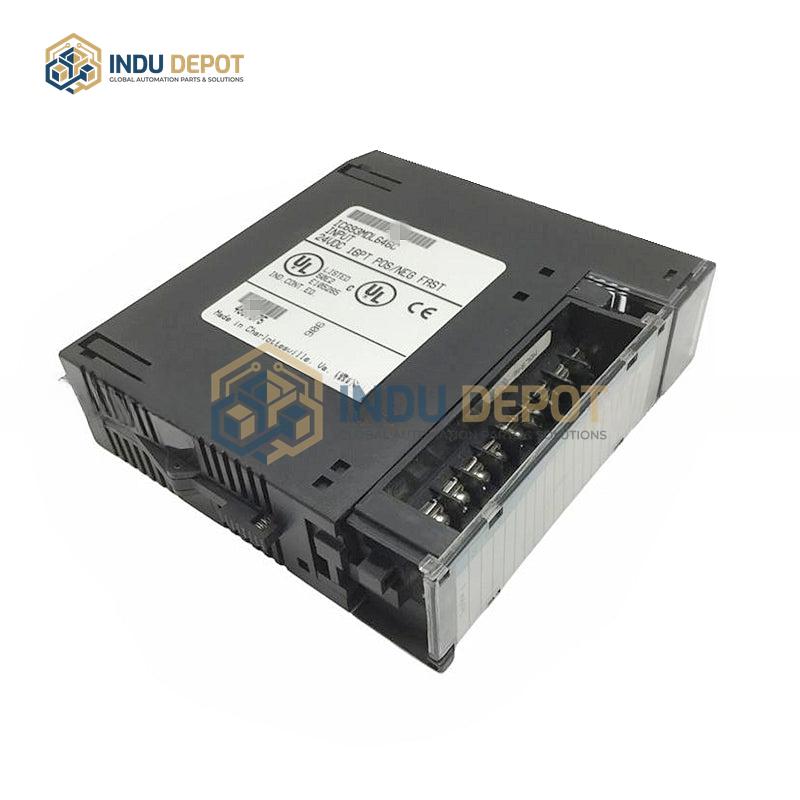

GE FANUC IC693MDL646 Discrete Input Module

Description

The GE FANUC IC693MDL646 Discrete Input Module is a digital input component belonging to the GE Fanuc 90-30 Series Programmable Logic Controller (PLC) system, designed for industrial automation control applications. As a 24VDC 16-point input module, its core function is to convert digital signals from external field devices such as buttons, switches, and sensors into signals recognizable by the host PLC, enabling seamless integration of field data into automated control workflows.

Key technical specifications include a 24VDC operating power supply, 1500V DC isolation voltage rating, and a 7ms response time, ensuring reliable signal transmission and rapid system reaction to input changes. Environmental specifications cover an operating temperature range of 0 degrees Celsius to 60 degrees Celsius, a storage temperature range of -40 degrees Celsius to 85 degrees Celsius, and an IP20 protection rating, making it suitable for standard industrial environments. The module has physical dimensions of 13.2 cm x 7.1 cm x 1.8 cm and weighs 2 pounds, allowing flexible installation in 5-slot or 10-slot backplane I/O slots compatible with the 90-30 Series PLC system.
