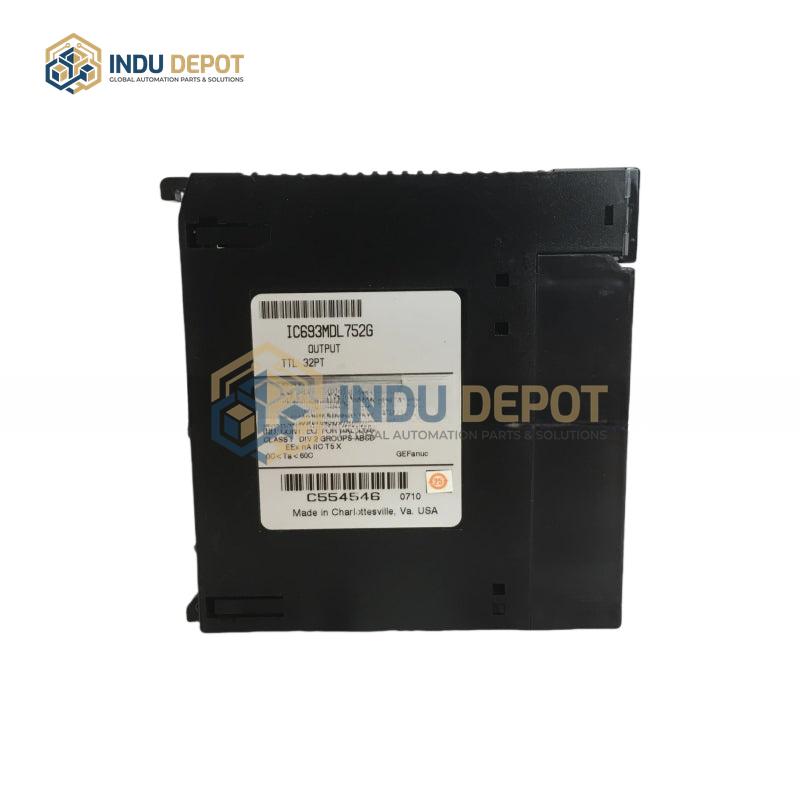

GE FANUC IC693MDL752 Negative Logic Output Module

Description

The GE FANUC IC693MDL752 Negative Logic Output Module is a high-density output unit belonging to the Series 90-30 PLC product line, designed for industrial control applications. It features 32 negative logic (sink-type, low-level active) discrete output points, utilizing 32-bit discrete %Q output data to deliver precise control signals. The 32 output points are divided into four independent groups (A, B, C, D), with 8 points per group, and each group is equipped with a dedicated common terminal for flexible, isolated load management.
