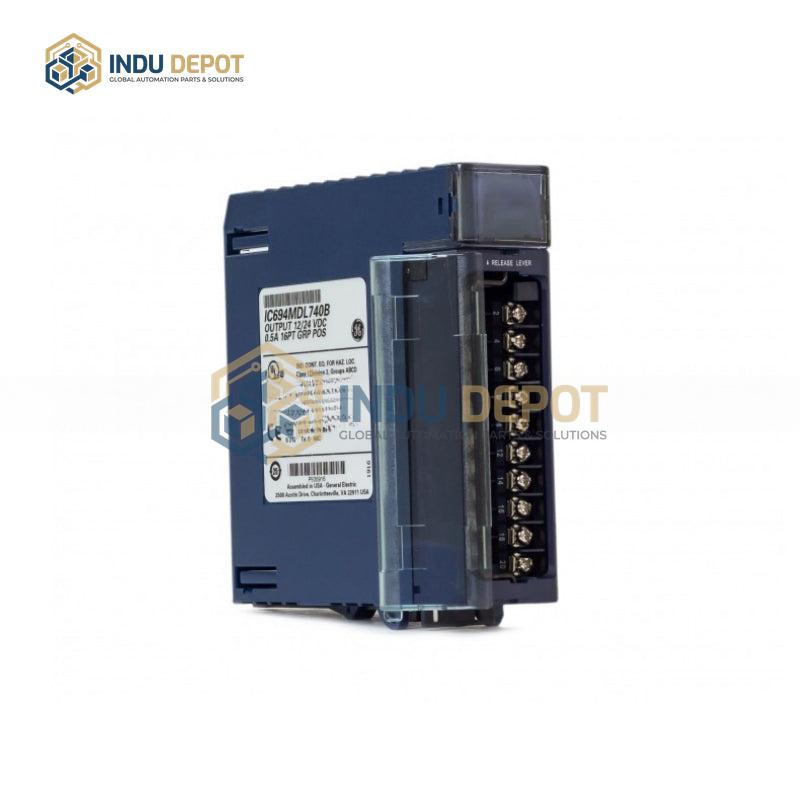

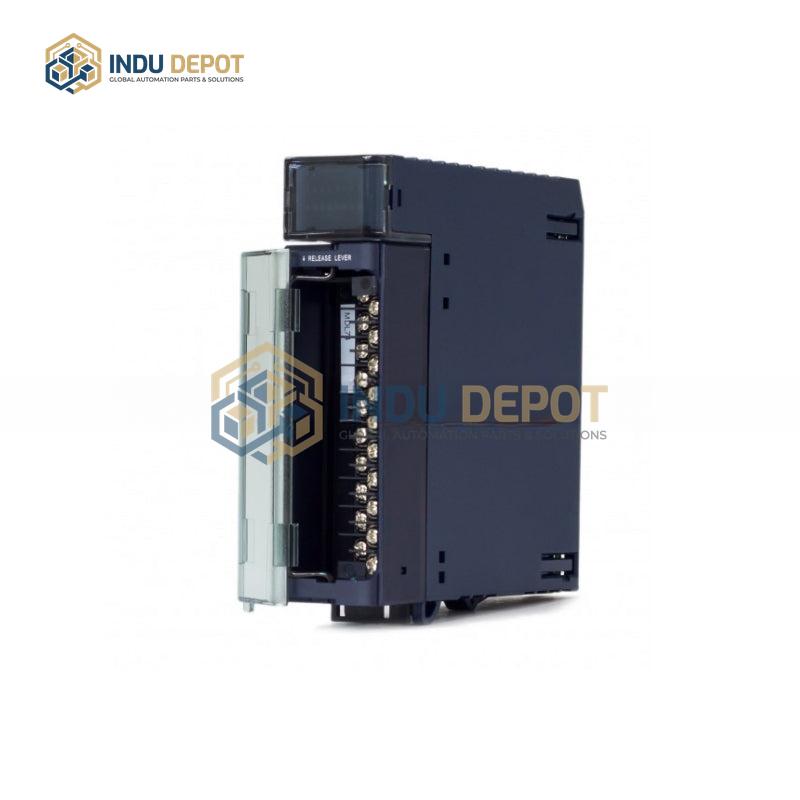

GE FANUC IC694MDL740 RX3i Output Module

Description

The GE FANUC IC694MDL740 RX3i Output Module is part of the GE Fanuc RX3i series of programmable logic controller (PLC) modules, designed for industrial automation applications. While direct technical specifications for this exact model are not available, it shares core design and functional traits with other RX3i output modules. As a discrete output module, it is engineered to control industrial devices such as relays, valves, motors, and indicator lights across sectors including discrete manufacturing, packaging, material handling, automotive production, semiconductor manufacturing, power utilities, food and beverage, chemical processing, oil and gas, pharmaceuticals, and transportation.

Based on comparable RX3i series modules like the IC694MDL940 and IC694MDL753, it likely features a compact form factor, DIN rail mounting, and a 20-pin D-shaped connector for wiring. It may offer up to 32 discrete outputs organized into 4 isolated groups of 8, each with an independent common terminal, and use positive logic (source-type) output configuration. Expected electrical specifications include an output voltage range of 10.2 to 28.8 VDC, output current of 0.5 amps per point and 4 amps per group, and ultra-fast response time of less than 1 microsecond. Environmental ratings typically cover operating temperatures from -25 to 70 degrees Celsius, storage temperatures from -40 to 85 degrees Celsius, non-condensing humidity of 5% to 95%, vibration resistance of 5G (10 to 500 Hz), and shock resistance of 10G (11 ms).
