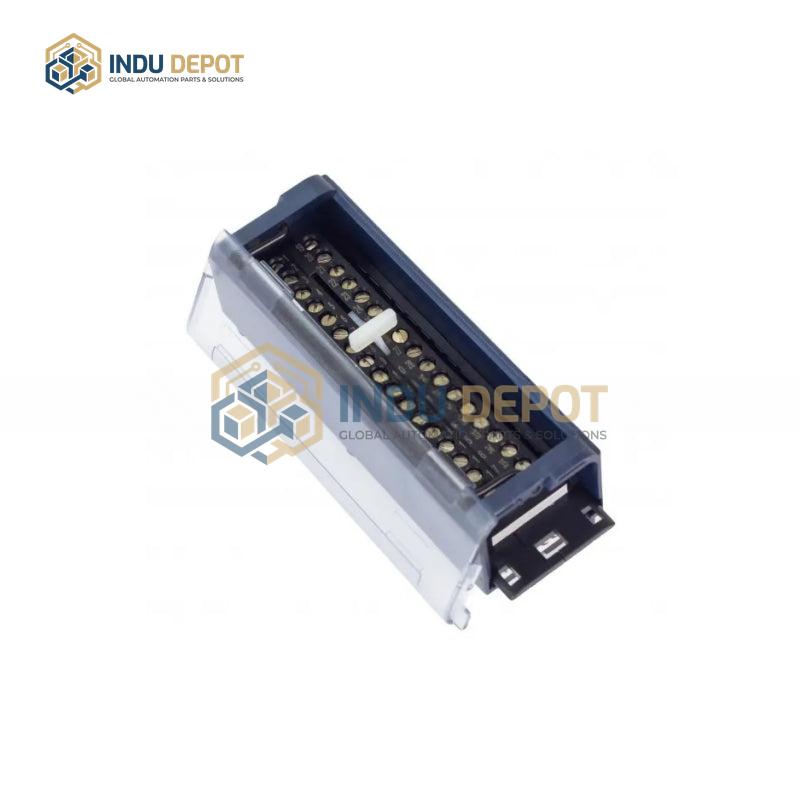

GE FANUC IC694TBB032 RX3i Box Style High Density Terminal Block

Description

The GE FANUC IC694TBB032 RX3i Box Style High Density Terminal Block is a compact, high-strength component designed for use with PACSystem RX3i series PLCs. Featuring a high-density design, it provides 36 screw terminals to support field wiring for high-density modules, making it ideal for space-constrained industrial setups. It offers broad compatibility, working seamlessly with RX3i and equivalent Series 90-30 high-density I/O modules, and is also required for select RX3i analog input modules like the 8-channel high-density models.

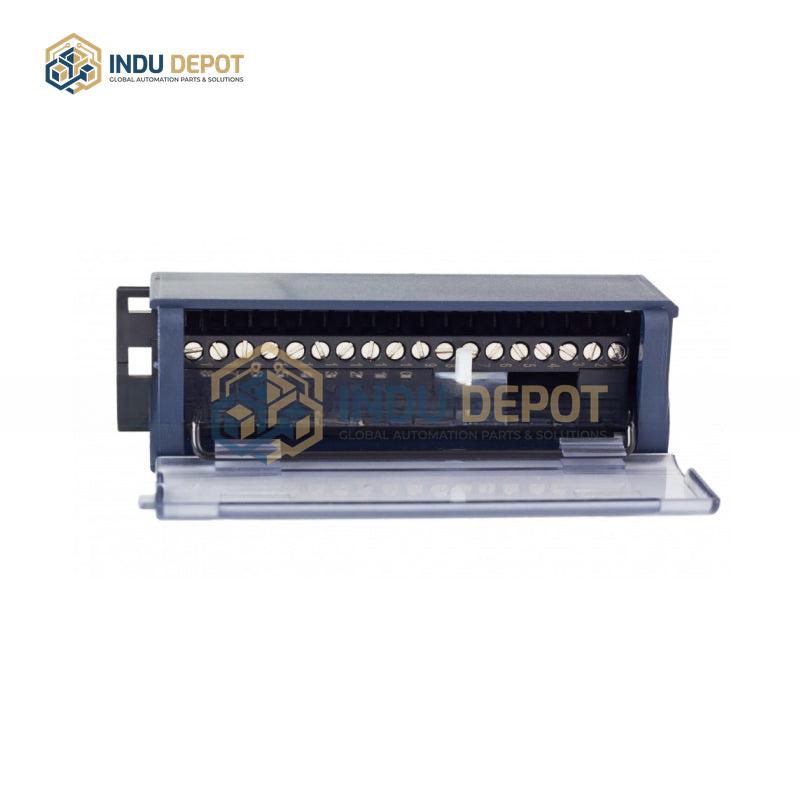

Key technical specifications include support for #14-26 AWG solid or stranded wires, a recommended wire stripping length of 0.310 inches, and a terminal screw torque requirement of 7 lb-in. Its box-style construction measures 0.5 inches deep, capable of accommodating 0.31-inch ribbon cables, with a thicker outer insulation layer to fit heavier gauge wires. A front terminal door and open rear architecture simplify access and wiring, while the bottom of the block serves as a built-in wire stripping length guide to streamline installation. The unit can be easily removed and replaced by pressing a latch, sliding upward until it clicks into place. It is intended for installation in well-ventilated areas to maintain proper operating conditions, and is commonly applied in industrial automation scenarios such as production line control and equipment monitoring, as well as power system signal transmission and control.
