GE FANUC IC695CHS012 RX3i 12 Slot Backplane

Description

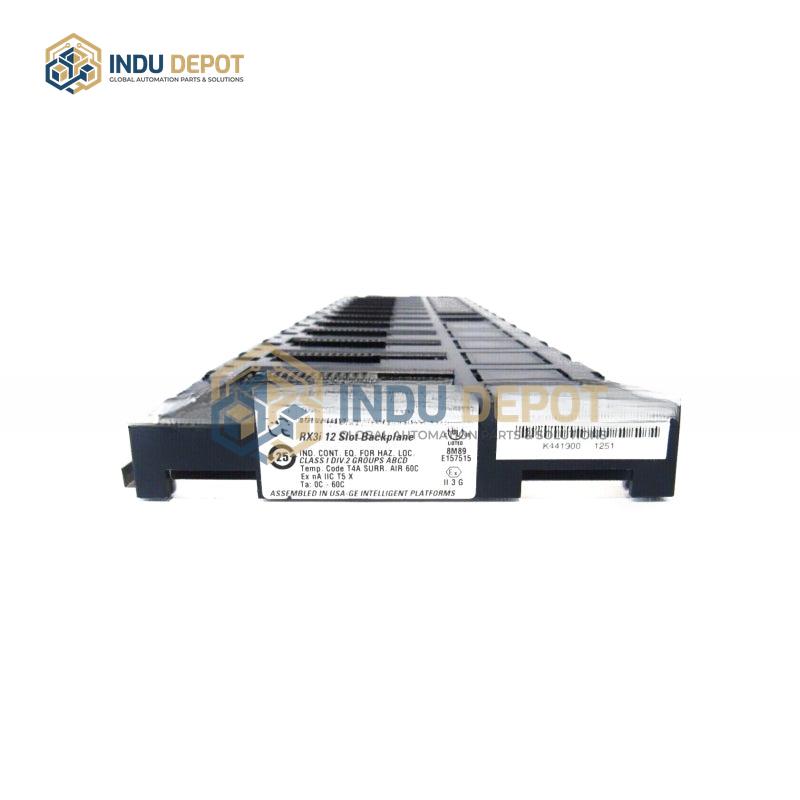

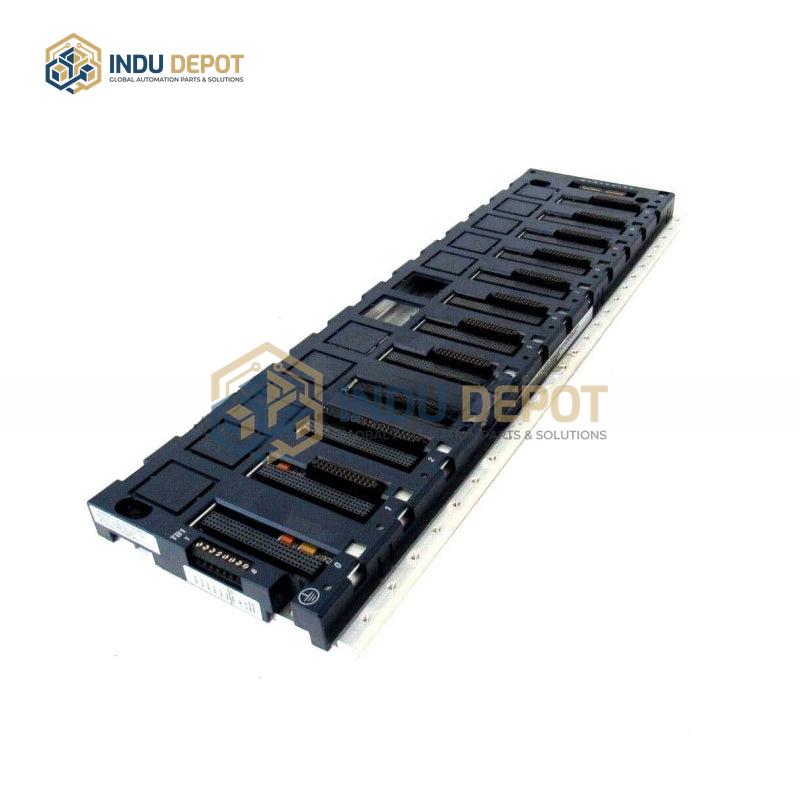

The GE FANUC IC695CHS012 RX3i 12 Slot Backplane is a universal backplane designed for the RX3i PACSystems series, featuring 12 slots to accommodate RX3i controller, I/O, and option modules. It supports both high-speed PCI and serial bus connections, providing a dedicated enclosure for module mounting and carrying internal communication buses to enable seamless data transfer between connected components. Key technical specifications include a power draw of 600 mA at 3.3V DC and 240 mA at 5V DC, and physical dimensions of 18.01 x 5.57 x 5.80 inches (457.5 x 141.5 x 147.32 mm), with support for horizontal installation. A critical feature is hot-swap capability, which allows modules to be removed or inserted while the system is powered on, reducing downtime and simplifying maintenance tasks like module replacement and integrity verification. For installation, it can be housed in an IP20 / NEMA/UL Type 1 enclosure for standard use; to meet ATEX Zone 2 hazardous area requirements, it must be installed in an IP54 or higher rated enclosure, and it has a mechanical strength rating to withstand 3.5 joules of impact energy. It also supports optional baseplates such as controller bases and Ethernet expansion bases, and has available variants including IC695CHS012-BA, IC695CHS012-BAMP, and IC695CHS012-CA.
