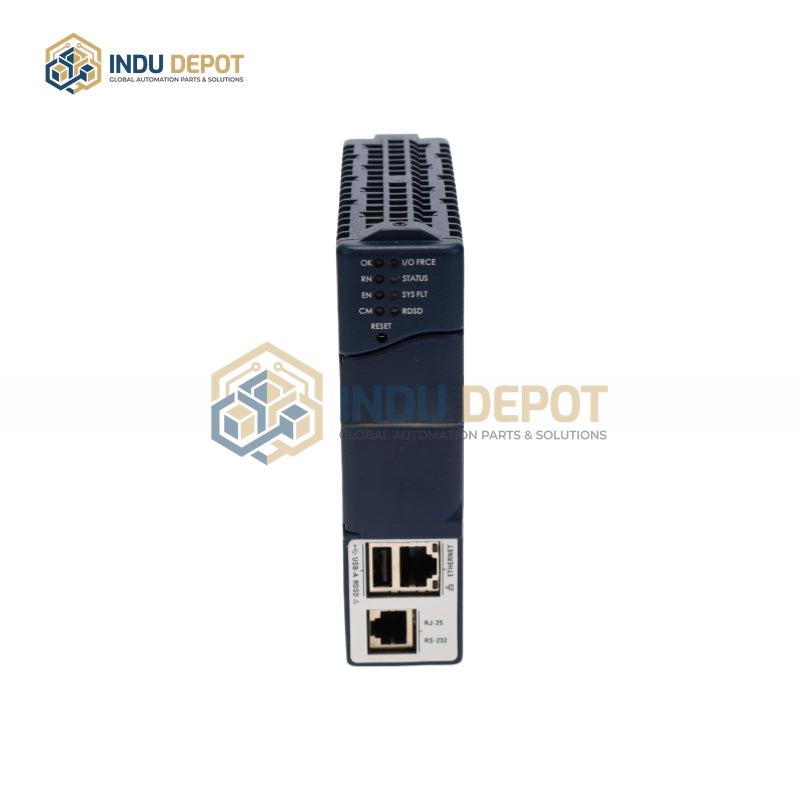

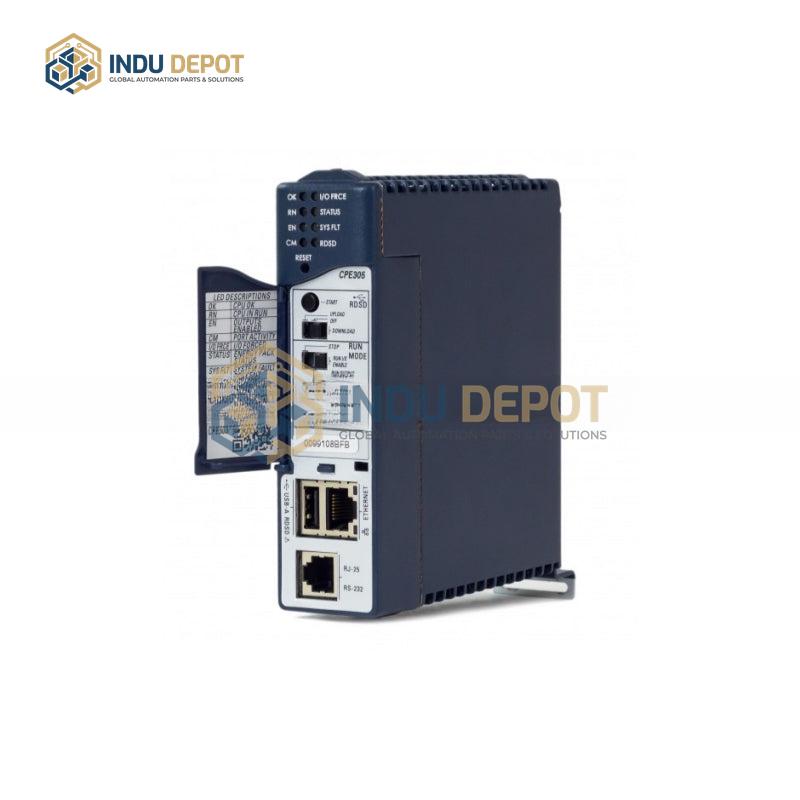

GE FANUC IC695CPE305 RX3i Central Processing Unit

Description

The GE FANUC IC695CPE305 RX3i Central Processing Unit is a programmable automation controller (PAC) belonging to the PACSystem RX3i product line. It delivers high-performance control for industrial automation applications with a 1.1 GHz processor, boasting a typical scan rate of 0.72 ms per 1000 boolean instructions. The unit is equipped with 5MB RAM and 5MB non-volatile user memory, providing sufficient storage for program logic and user data.

For seamless industrial connectivity, it features a 10/100 Mbps Ethernet port that supports communication with programming workstations, human-machine interfaces (HMI), and supervisory control and data acquisition (SCADA) systems, as well as the OPC UA protocol. Additionally, it includes two serial ports compatible with RS232 and RS485 communication standards, enabling integration with a wide range of industrial devices.

Key technical specifications include a 220V operating voltage, 0.75kHz output frequency, and a storage temperature range of -40 degrees Celsius to 80 degrees Celsius. It holds CE certification and complies with international standards including EN55022:2010, EN61000-4-2:2001, and EN61000-4-3:2006, with compliance testing covering substances such as Pb, Cd, Hg, Cr6+, and PBBs.
