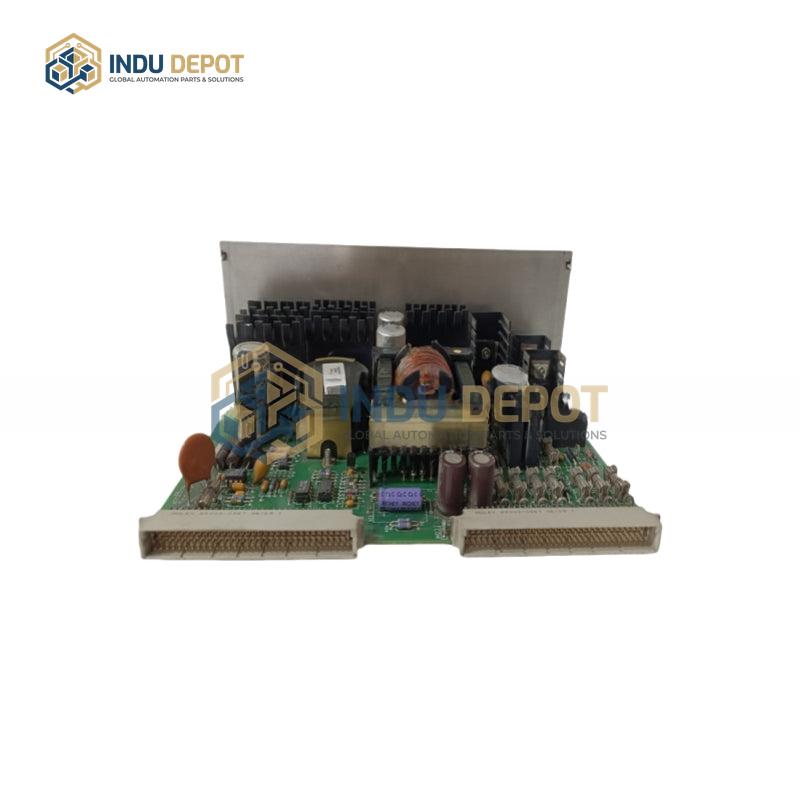

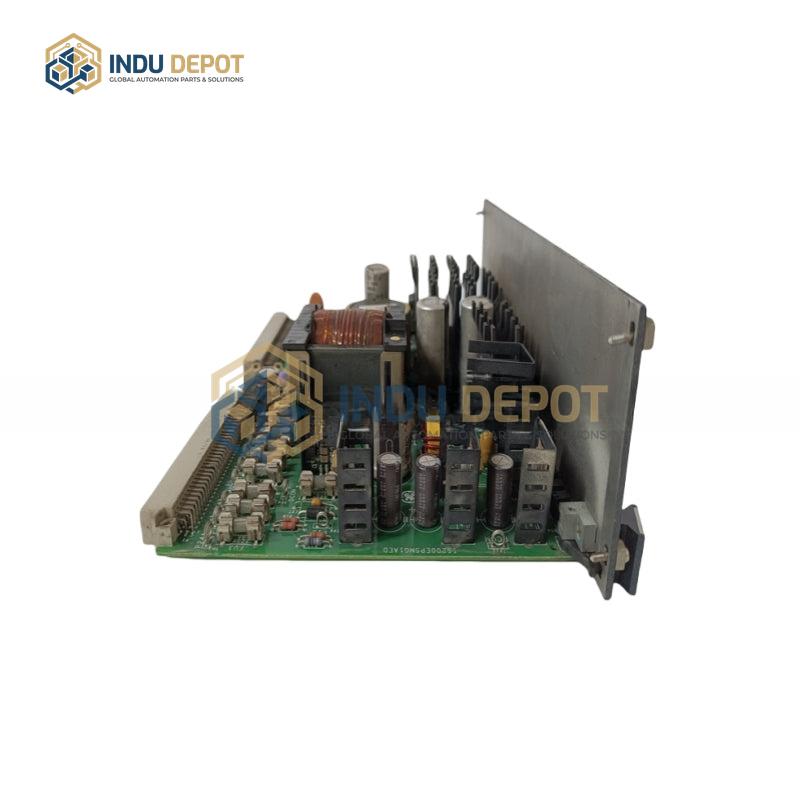

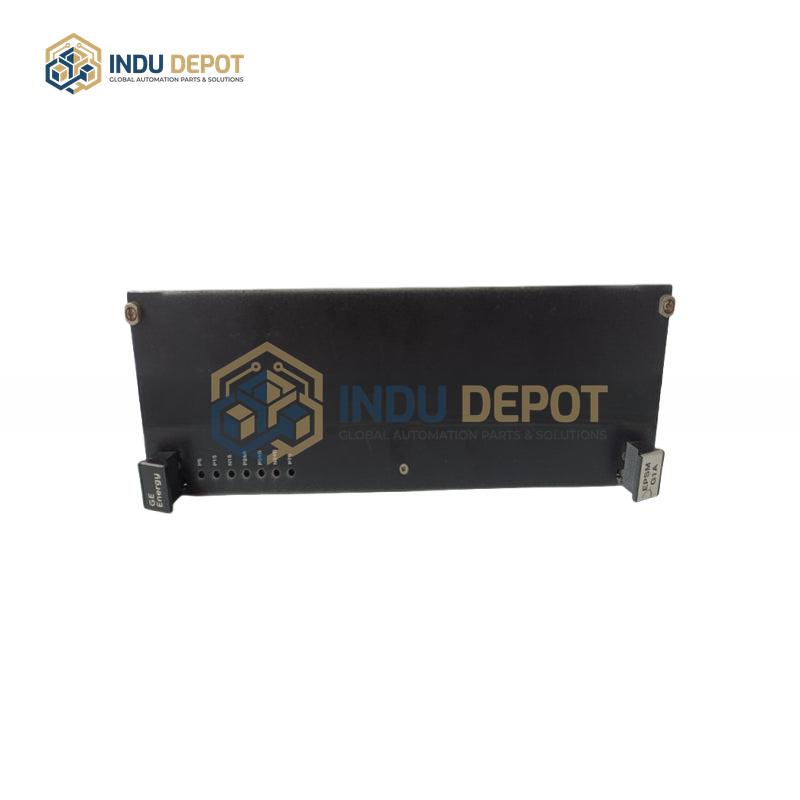

GE FANUC IS200EPSMG1A Exciter Power Supply Module

Description

The GE FANUC IS200EPSMG1A Exciter Power Supply Module is part of the GE exciter power supply module line, specifically engineered for exciter control systems. It delivers stable direct current (DC) power to ensure reliable operation of exciters, utilizing high-efficiency power conversion technology for consistent performance and low maintenance requirements, making it suitable for diverse industrial environments. Key technical specifications include dual input voltage options: 125V DC and 100-240V AC, with output voltages including +5V DC, +15V DC, and +24V DC, and maximum output currents of 10A or 12A. It boasts an efficiency rating of over 85%, operates within a temperature range of -40 degrees Celsius to +70 degrees Celsius, and has dimensions of 230mm (length) x 160mm (width) x 80mm (height), with a weight option of 7.2kg or 0.75kg and an IP20 protection rating. Core features include a modular design for easy installation and maintenance, built-in overload, short-circuit, and over-voltage protection to prevent module damage and ensure system safety, and redundant design support to boost reliability and fault tolerance when multiple modules are installed. It interfaces with PLCs and various external devices, and is ideal for excitation control systems of gas, steam, and hydroelectric generators.
