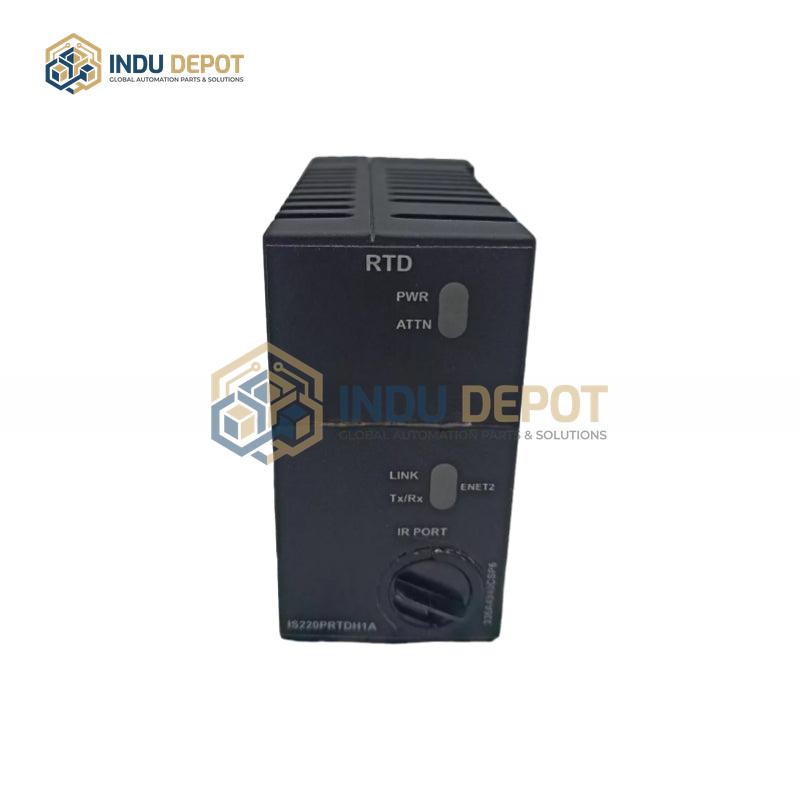

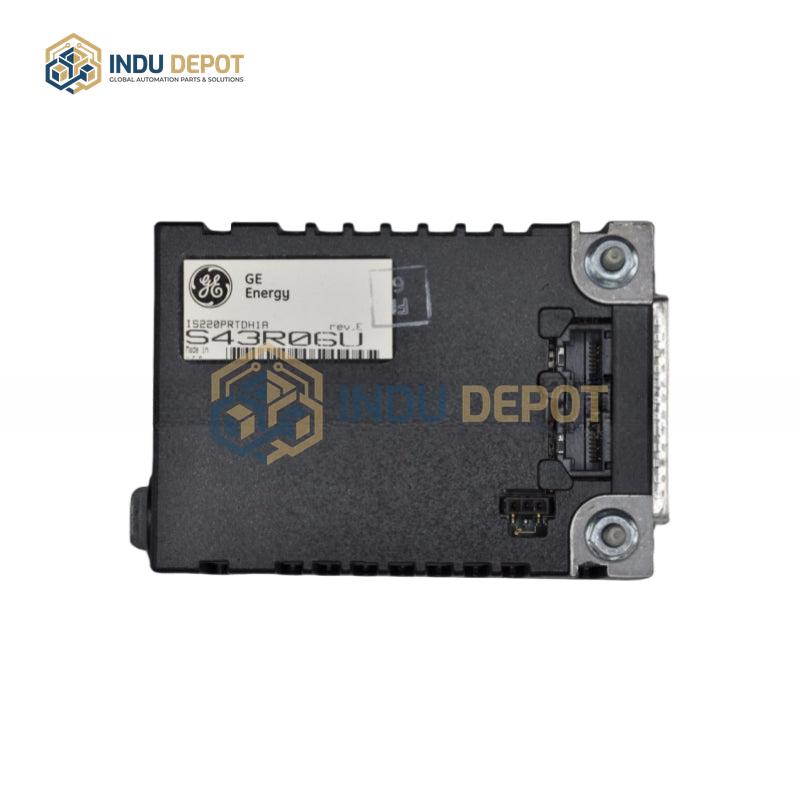

GE FANUC IS220PRTDH1A Resistance Temperature Device Input Module

Description

The GE FANUC IS220PRTDH1A Resistance Temperature Device Input Module is a high-performance RTD input module designed for industrial automation and control systems, part of the Mark VIe Speedtronic series. It converts resistance signals from RTD sensors into standardized digital signals for precise temperature measurement, data collection, and closed-loop process control. Key technical specifications include support for multiple RTD types such as Cu50, Cu100, Pt100, and Pt500, with configurable channel options including single-channel and 8-channel variants. It operates at 220V with a 1A current capacity, and has a base operating temperature range of -40 degrees Celsius to 85 degrees Celsius, with specific variants rated for -20 degrees Celsius to 60 degrees Celsius; storage temperature range is -40 degrees Celsius to 85 degrees Celsius. Physical specifications vary by variant, with dimensions including 20mm x 20mm x 10mm, 134mm x 85mm x 35mm, and 16cm x 12cm x 12cm, and corresponding weights of 1.43 pounds or 0.5 kg. The module features dual Ethernet ports and supports communication protocols including Modbus, Profibus, DNP3, and IEC 61850, with some variants holding an IP65 protection rating for dust, moisture, and temperature fluctuation resistance. Core features include ±0.1% full-scale measurement accuracy via high-precision A/D converters and advanced signal processing, broad RTD compatibility for flexible temperature monitoring needs, high reliability from premium components, and a modular design for easy integration into existing systems. It is widely used in power, petrochemical, metallurgical, and food industries for temperature monitoring of equipment such as power generators, reactors, blast furnaces, and sterilization units.
