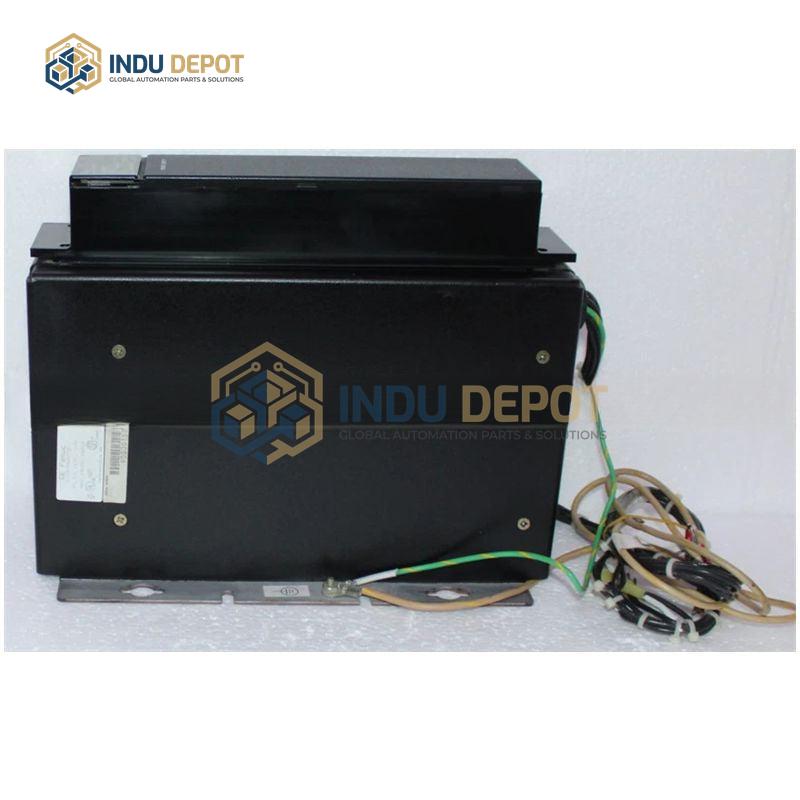

GE IC697PWR722 PLC Power Supply Module
Description
GE IC697PWR722 PLC Power Supply Module is a 100W single/three-phase universal input power supply module for the GE Fanuc (now part of Emerson) Series 90-70 PLC system. It is a single-slot module that converts wide-range input power into stable DC power for PLC logic circuits and I/O modules, while providing power sequencing and fault diagnostic signals.
| Specification | Value |
|---|---|
| Input Voltage Range | 90-264V AC (47-63Hz), 180-264V DC |
| Power Factor (AC Mode) | ≥0.9 |
| Input Surge Tolerance | 300% rated voltage for 10ms |
| Output Configuration | Three isolated outputs: +5V DC (18A, 100W rated), +12V DC (2A), -12V DC (1A); total power 100W |
| Voltage Accuracy | +5V: ±0.5%, ±12V: ±2%; load/line regulation ≤0.1% |
| Ripple Noise (+5V) | ≤50mVp-p |
| Isolation Ratings | Input-output: 1500V AC for 1 minute; output-to-output: 500V AC |
| Operating Environment | Temperature: 0 to 60 degrees Celsius; humidity: 5% to 95% (no condensation); vibration ≤5g; shock ≤15g |
| Certifications | UL 508, CE, IEC 61000-4 (EMI/RFI) |
Key Features:
- Dual European card mechanical structure, compatible with Series 90-70 standard racks and 48-pin backplane bus; must be installed in the leftmost power slot of the rack
- Supports hot swap when configured with redundant modules
- Front panel with 3 green LED indicators for output status monitoring
- Provides power sequencing and fault diagnostic signals to ensure system power continuity and stability
Applications:
- Manufacturing production line control systems
- Industrial process control systems
- Critical equipment control systems requiring high power reliability
