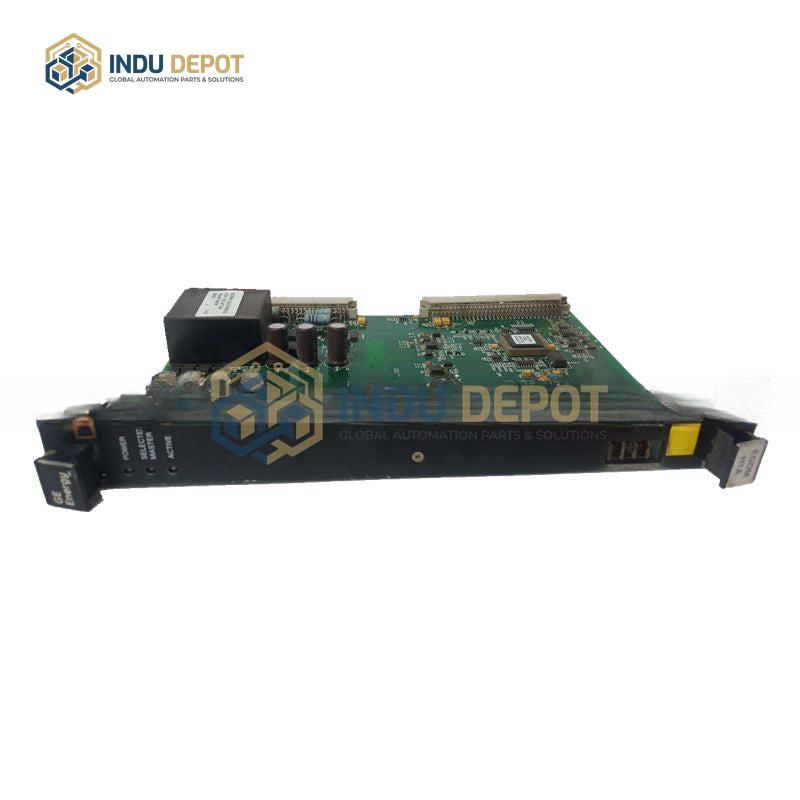

GE IS200EGDMH1ABC Ground Fault Detection Module for Excitation Systems
Description
GE IS200EGDMH1ABC is a ground fault detection module designed for excitation systems, part of GE’s EX2100 series excitation control system and a component of the Mark VI Speedtronic series for heavy gas and steam turbine management. It detects ground faults in exciter field circuits, provides accurate ground impedance measurements, and works with EXAM attenuator modules to monitor leakage current on both AC and DC sides of field circuits.
| Specification | Value |
|---|---|
| Mounting Type | Dual-slot, dual-height (6U) circuit board |
| Mounting Location | Exciter power backplane rack (EPBP) |
| Voltage Range | 200VAC to 600VDC |
| Measurement Range | 0 ohms to 200k ohms |
| Accuracy | ±5% |
| Response Time | Less than 10ms |
| Length | 233.1 millimeters |
| Width | 101.6 millimeters |
| Height | 152.4 millimeters |
| Weight | 0.6 kilograms |
Key Features:
- Detects ground faults on both AC and DC sides of exciter field circuits
- Provides accurate ground impedance measurements with ±5% accuracy
- Fast response time of less than 10ms for rapid fault detection
- Supports single and redundant system configurations (1 module for single systems, 3 modules for redundant systems)
- Equipped with front-panel indicator lights for status monitoring
- Easy to install and maintain
- High reliability for continuous operation in critical power systems
Applications:
- Power plants to protect exciter systems from ground fault damage
- Substations with heavy gas and steam turbine control systems
- Excitation control systems integrated with GE Mark VI Speedtronic series
Related Models:
- IS200EGDMH
- IS200EGDMH1A
- IS200EGDMH1ADF
